RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Enabling/Disabling Controlled Bypass for M12 Line
Modules 83
Parameter Description
detected-module The installed module's type specifier.
Module Type Sets the module type to be used in this slot.
Admin State Sets the administrative state for a module. Enabling the module powers it on.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
NOTE
Upon committing the new line module configuration, Internal Configuration Error alarms may be
generated. These can be safely ignored and cleared in this context.
5. Click Exit Transaction or continue making changes.
Section 3.16.5
Enabling/Disabling Controlled Bypass for M12 Line Modules
Controlled bypass is used to allow Ethernet traffic to bypass a defective unit in a network chain while preventing
the loss of data.

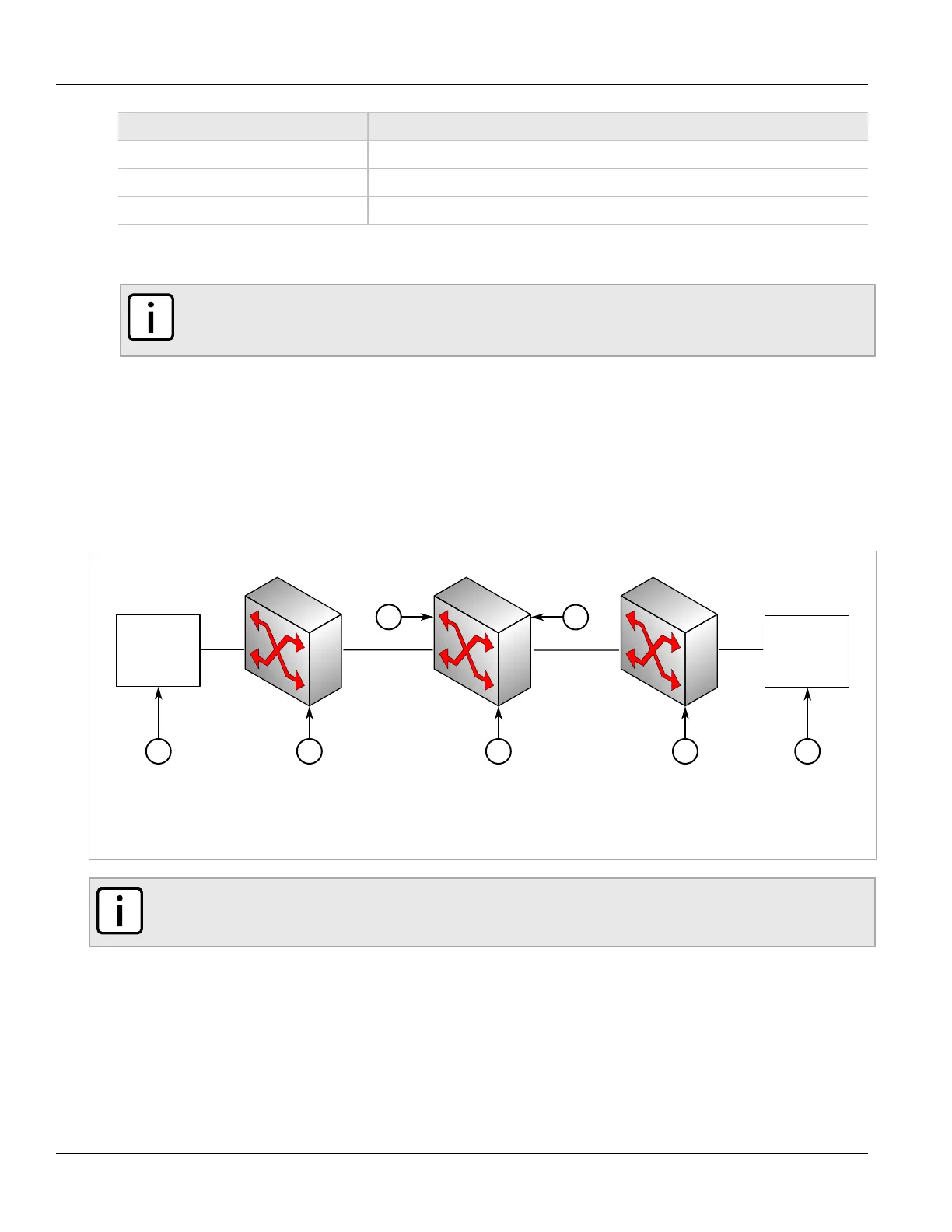

Figure 85: Sample Controlled Bypass Diagram
1. Ethernet Traffic Generator 2. Router 1 3. Defective Router 4. M12 Line Module Port 1 5. M12 Line Module Port 2 6. Router 2
7. Receiving Traffic
NOTE
An M12 line module with bypass control is required for this feature.
To enable or disable controlled bypass for M12 line modules, do the following:
1. Log in to the defective router.
2. Change the mode to Edit Private or Edit Exclusive.
3. Navigate to chassis » line-modules » {module} » bypass, where {module} is the M12 line module. The
Bypass Control and Status form appears.
