RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Configuring Private Subnets for Connection Ends 635
• Section 5.28.10.1, “Configuring Private Subnets for Connection Ends”
• Section 5.28.10.2, “Viewing a List of Addresses for Private Subnets”
• Section 5.28.10.3, “Adding an Address for a Private Subnet”
• Section 5.28.10.4, “Deleting an Address for a Private Subnet”
Section 5.28.10.1
Configuring Private Subnets for Connection Ends
To configure a private subnet for either the left (local router) or right (remote router) connection ends in a VPN, do
the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to tunnel » ipsec » connection/{end} » subnet, where {end} is the either the left (local router) or
right (remote router) connection end. The Private Subnet Behind System form appears.

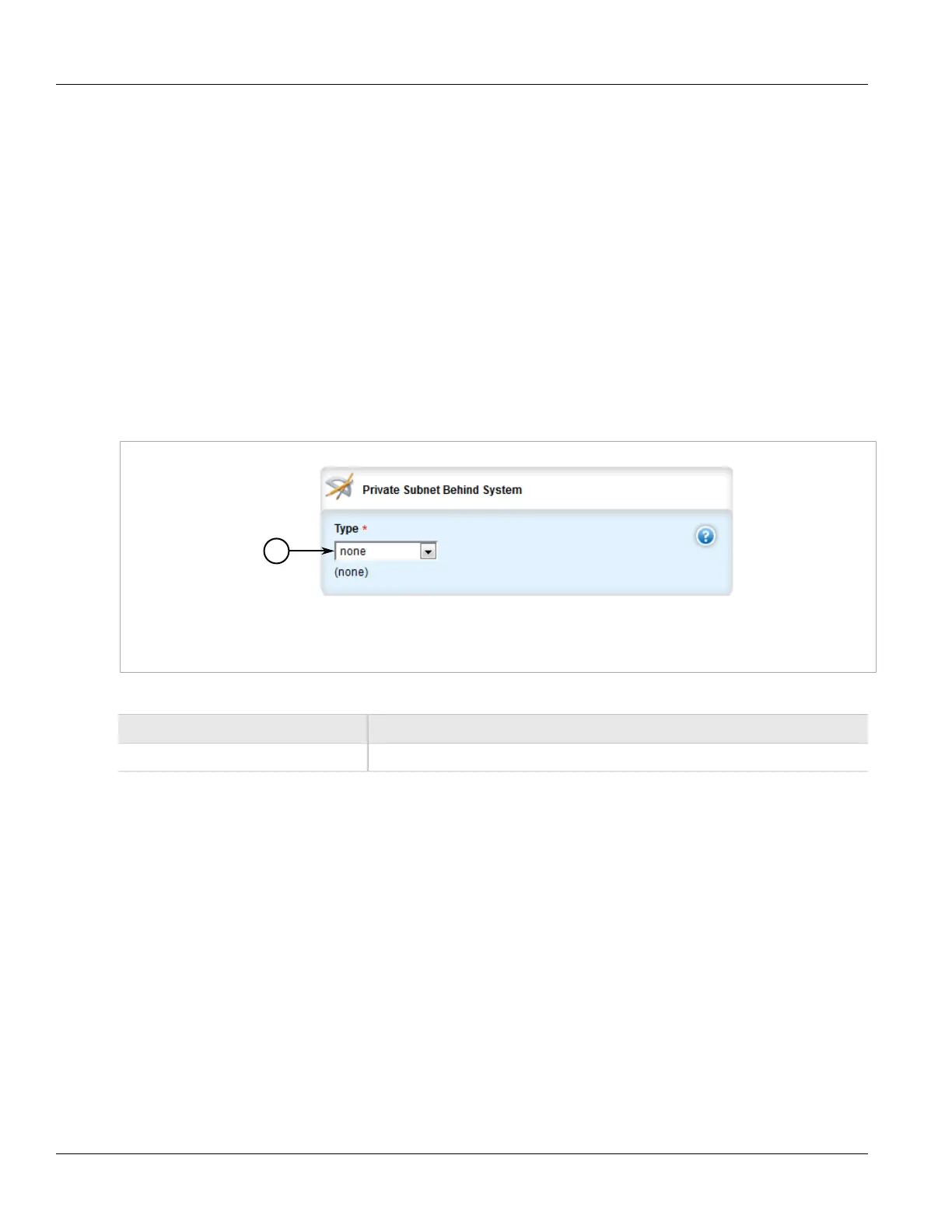

Figure 742: Private Subnet Behind System Form
1. Type List
3. Configure the following parameter(s):
Parameter Description
Subnet Address The IP address/prefix.
4. Add one or more subnet addresses. For more information, refer to Section 5.28.10.3, “Adding an Address for
a Private Subnet”.
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
Section 5.28.10.2
Viewing a List of Addresses for Private Subnets
To view a list of addresses configured for private subnets, navigate to tunnel » ipsec » connection »
{connection} » {end} » subnet, where {connection} is the name of the connection and {end} is the either the
left (local router) or right (remote router) connection end. If addresses have been configured, the Private Subnet
Behind System table appears.
