Managing VLANs for Virtual Switches 741

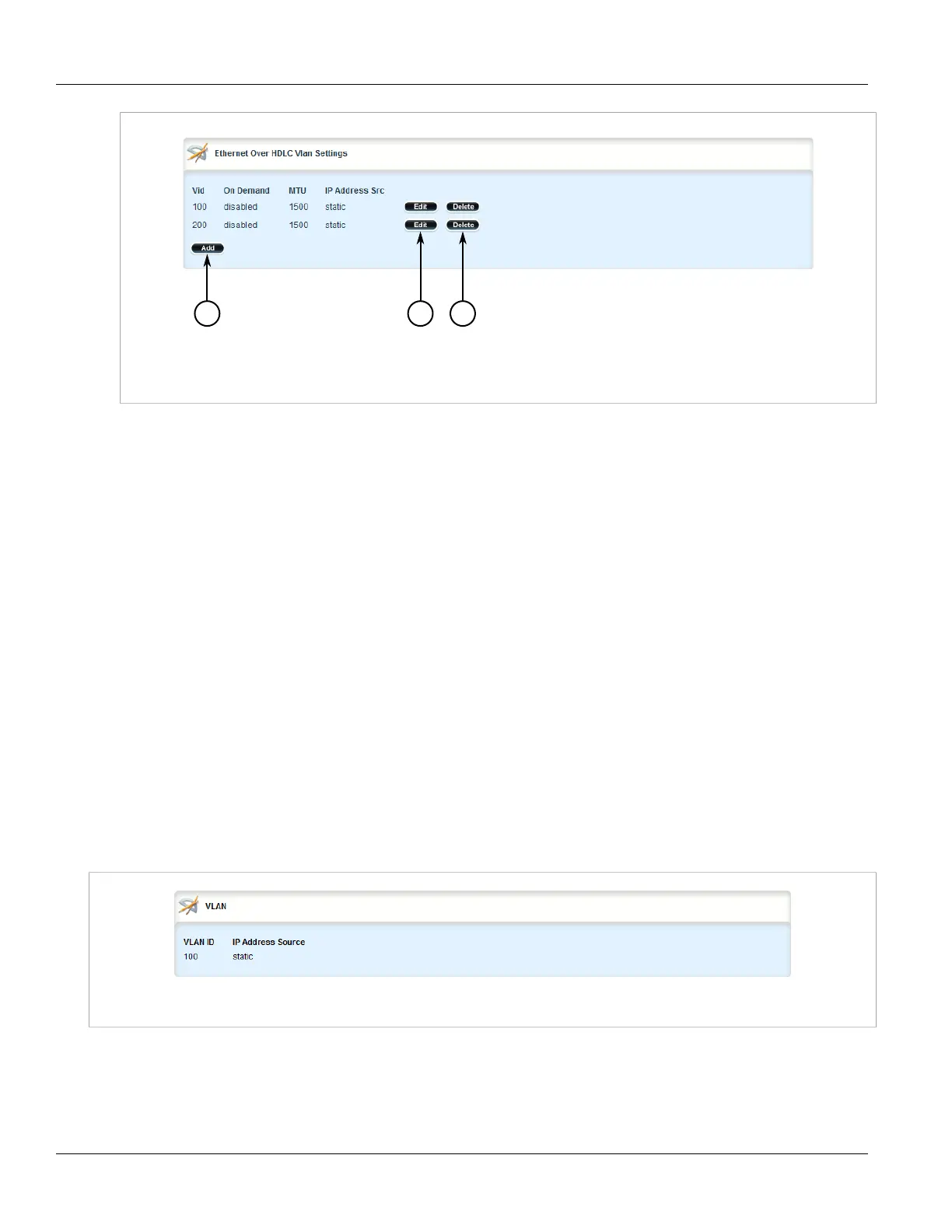

Figure 852: Ethernet Over HDLC VLAN Settings Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen VLAN.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.35.7
Managing VLANs for Virtual Switches
The following sections describe how to configure and manage VLANs for virtual switch interfaces:
• Section 5.35.7.1, “Viewing a List of Virtual Switch VLANs”
• Section 5.35.7.2, “Adding a Virtual Switch VLAN”
• Section 5.35.7.3, “Deleting a Virtual Switch VLAN”
Section 5.35.7.1
Viewing a List of Virtual Switch VLANs
To view a list of virtual switch VLANs, navigate to interface » virtualswitch » {id} » vlan, where {id} is the ID
assigned to the virtual switch. If VLANs have been configured, the VLAN table appears.
Figure 853: VLAN Table
If no virtual switch VLANs have been configured, add VLANs as needed. For more information, refer to
Section 5.35.7.2, “Adding a Virtual Switch VLAN”.
