RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Viewing a List of Egress Source Ports 363
Section 5.16.2.1
Viewing a List of Egress Source Ports
To view a list of egress source ports for port mirroring, navigate to switch » port-mirroring » egress-src. If
source ports have been configured, the Egress Source Ports table appears.

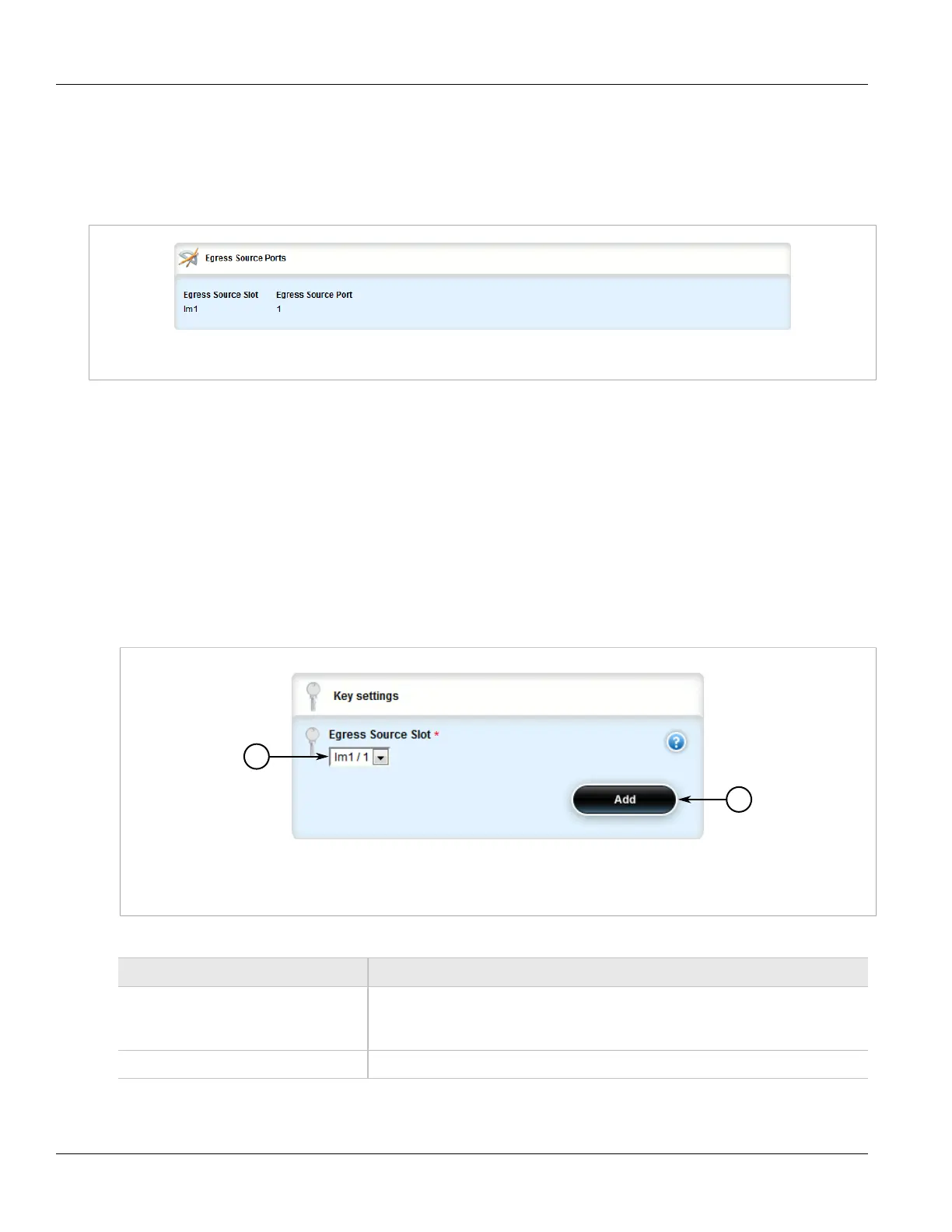

Figure 397: Egress Source Ports Table
If no egress source ports have been configured, add egress source ports as needed. For more information, refer
to Section 5.16.2.2, “Adding an Egress Source Port”.
Section 5.16.2.2
Adding an Egress Source Port
To add an egress source port for port mirroring, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » port-mirroring » egress-src and click <Add egress-src>. The Key Settings form
appears.
Figure 398: Key Settings Form
1. Egress Source Slot List 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
Egress Source Slot Synopsis: sm, lm1, lm2, lm3, lm4, lm5, lm6
The name of the module location provided on the silkscreen across the top of the
device.
Egress Source Port The selected ports on the module installed in the indicated slot.
4. Click Add to create the new egress source port.
