Adding a Device Address Table
To add a Device Address table for a serial port using the DNP protocol, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » serial » {slot/port} » protocols » dnp » setdnp » device-table, where {slot/port} is
the slot name and port number of the serial port.
3. Click <Add device-table>. The Key Settings form appears.

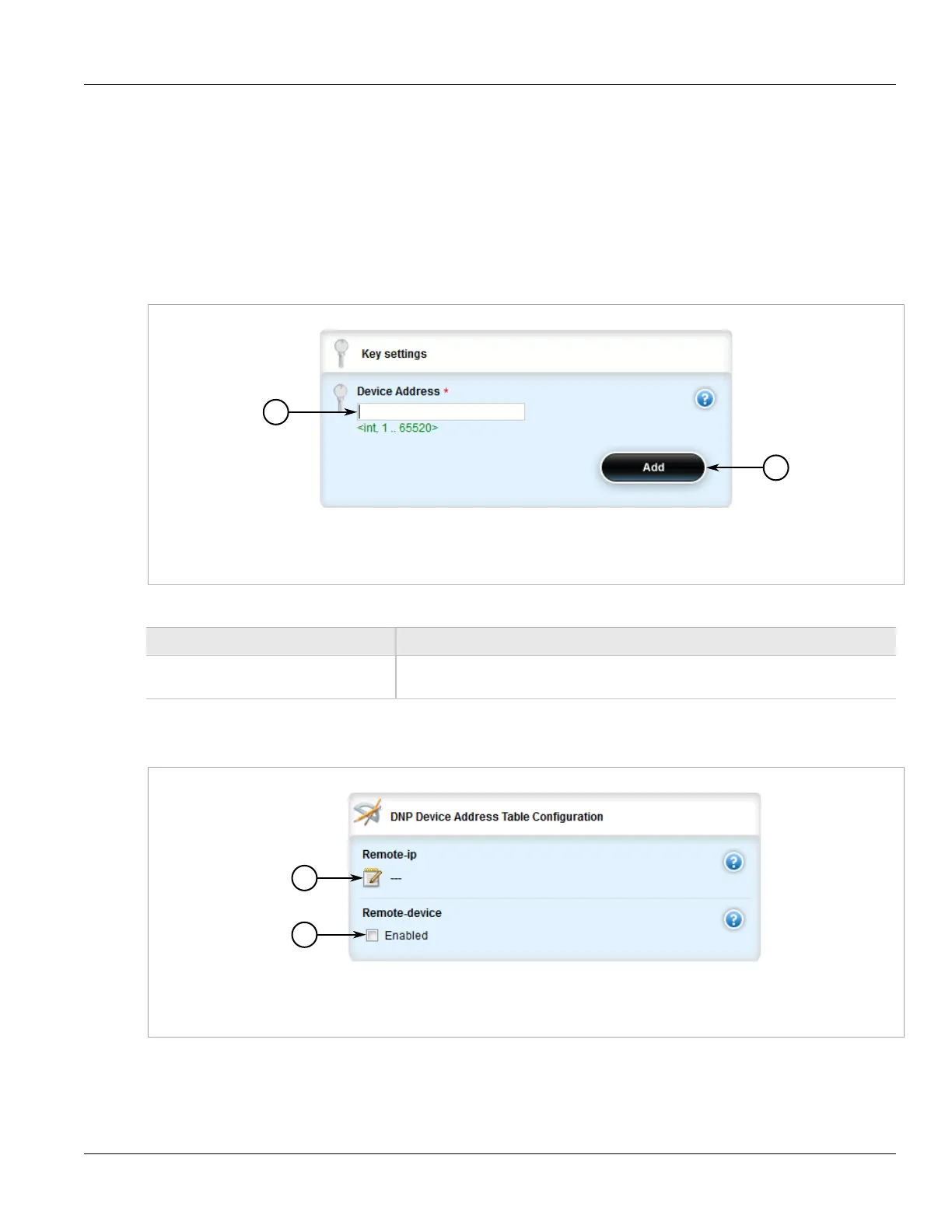

Figure 129: Key Settings Form
1. Device Address Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
deviceAddress The local or remote DNP device address. The address may be that of a DNP device
connected to a local serial port or one available via the serial port of a remote IP host.
5. Click Add to create the Device Address table. The DNP Device Address Table Configuration form
appears.
Figure 130: DNP Device Address Table Configuration Form
1. Remote IP Box 2. Remote Device Check Box
6. Configure the following parameter(s) as required:
