. Add traffic control rules. For more information, refer to Section 5.37.6.2, “Adding a Traffic Control Rule”.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 5.37.2
Managing Traffic Control Interfaces
Traffic control interfaces define interfaces used for traffic shaping, mainly for outbound bandwith and the outgoing
device.
NOTE
Traffic control interfaces can only be configured in basic mode. For more information about setting the
traffic control mode, refer to Section 5.37.1, “Enabling and Configuring Traffic Control”.
The following sections describe how to configure and manage traffic control interfaces:
• Section 5.37.2.1, “Viewing a List of Traffic Control Interfaces”
• Section 5.37.2.2, “Adding a Traffic Control Interface”
• Section 5.37.2.3, “Deleting a Traffic Control Interface”
Section 5.37.2.1
Viewing a List of Traffic Control Interfaces
To view a list of traffic control interfaces, navigate to qos » traffic-control » basic-configuration » tcinterfaces.
If interfaces have been configured, the Basic Traffic Control Interfaces table appears.

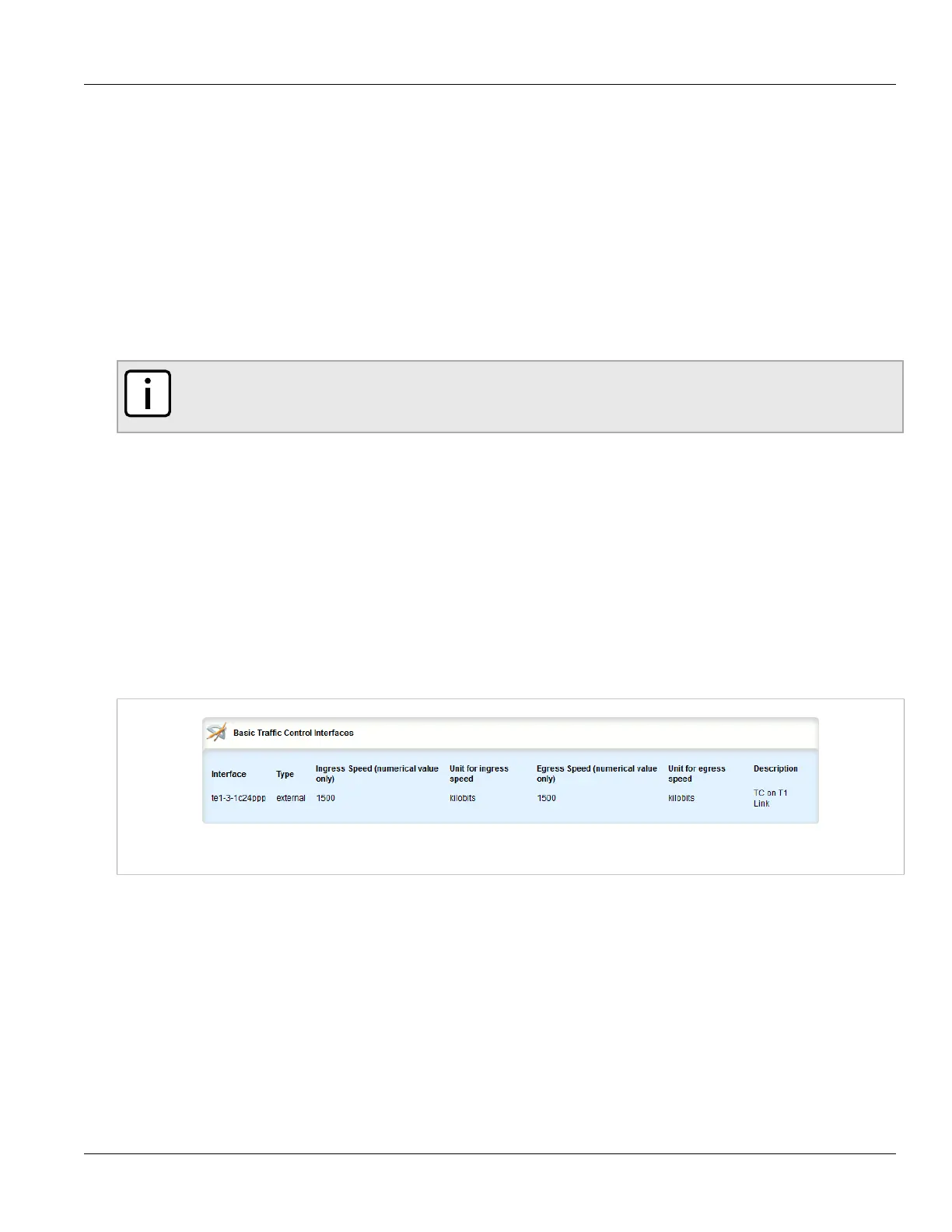

Figure 871: Basic Traffic Control Interfaces Table
If no interfaces have been configured, add interfaces as needed. For more information, refer to Section 5.37.2.2,
“Adding a Traffic Control Interface”.
Section 5.37.2.2
Adding a Traffic Control Interface
To add a new traffic control interface, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
