Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
364 Deleting an Egress Source Port
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
Section 5.16.2.3
Deleting an Egress Source Port
To delete an egress source port for port mirroring, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » port-mirroring » egress-src. The Egress Source Ports table appears.

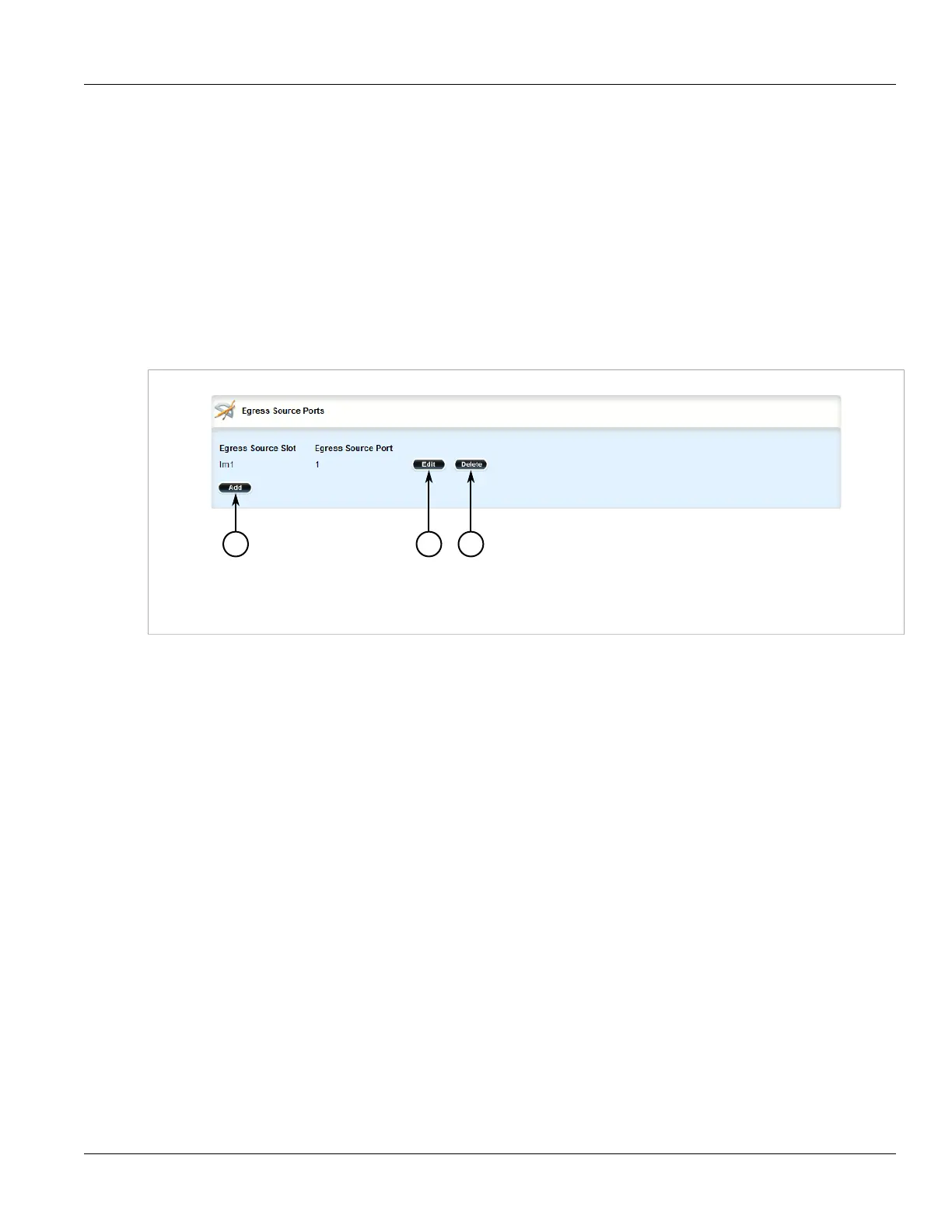

Figure 399: Egress Source Ports Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen source port.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.16.3
Managing Ingress Source Ports
The following sections describe how to configure and manage ingress source ports for port mirroring:
• Section 5.16.3.1, “Viewing a List of Ingress Source Ports”
• Section 5.16.3.2, “Adding an Ingress Source Port”
• Section 5.16.3.3, “Deleting an Ingress Source Port”
Section 5.16.3.1
Viewing a List of Ingress Source Ports
To view a list of ingress source ports for port mirroring, navigate to switch » port-mirroring » ingress-src. If
source ports have been configured, the Ingress Source Ports table appears.
