734 Viewing a List of Static VLANs
• Section 5.35.4.3, “Deleting a Static VLAN”
Section 5.35.4.1
Viewing a List of Static VLANs
To view a list of static VLANs, navigate to switch » vlans » static-vlan. If static VLANs have been configured,
the Static VLANs table appears.

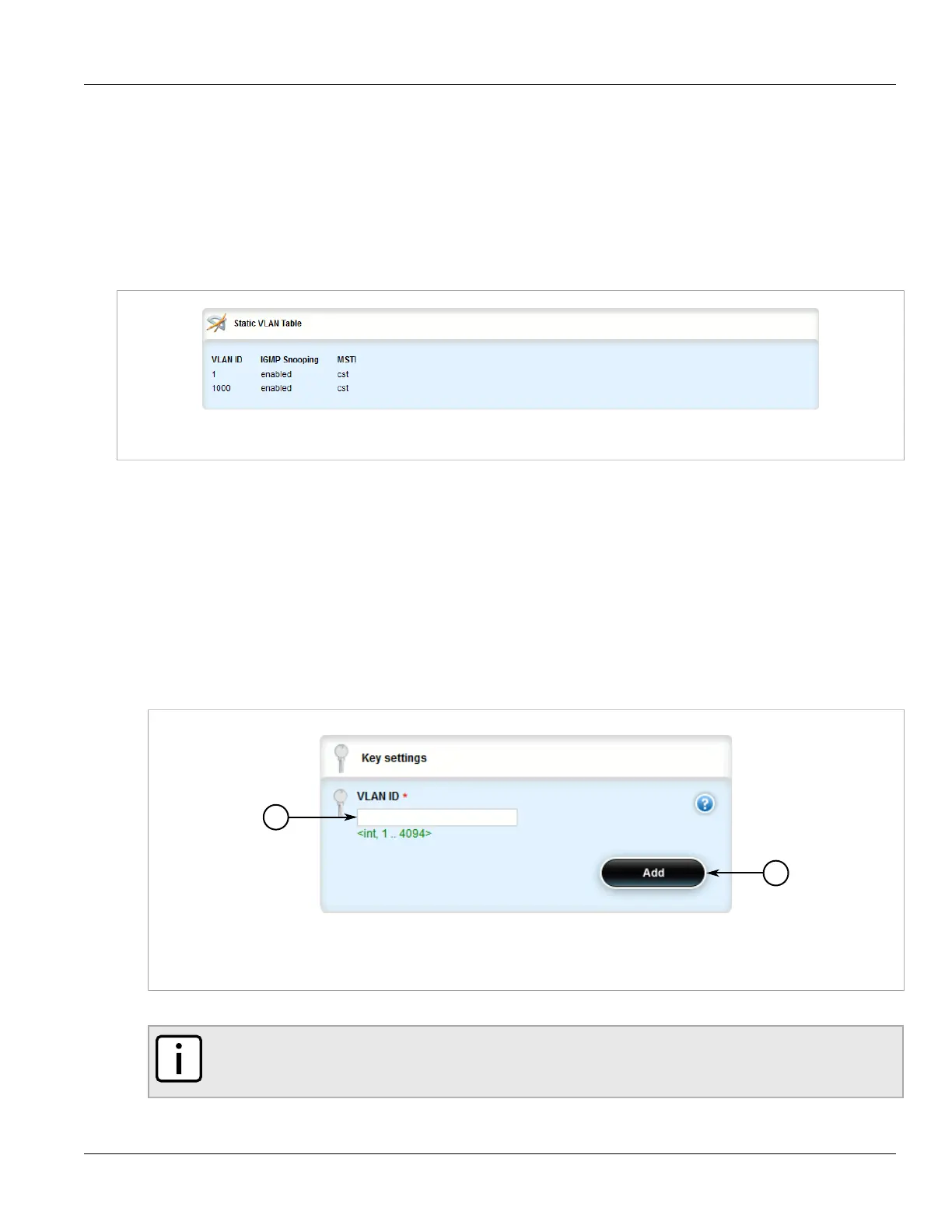

Figure 842: Static VLANs Table
If no static VLANs have been configured, add static VLANs as needed. For more information, refer to
Section 5.35.4.2, “Adding a Static VLAN”.
Section 5.35.4.2
Adding a Static VLAN
To add a static VLAN for either a routable Ethernet port or virtual switch, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » vlans » static-vlan and click <Add static-vlan>. The Key Settings form appears.
Figure 843: Key Settings Form
1. VLAN ID Box 2. Add Button
3. Configure the following parameter(s) as required:
NOTE
The VLAN ID must be outside the internal VLAN range. For more information about configuring the
internal VLAN range, refer to Section 5.35.3, “Configuring the Internal VLAN Range”.
