Clearing Cable Diagnostic Statistics 107
Parameter Description
Running Whether or not a cable test is currently running on this port
Good Termination The number of times GOOD TERMINATION (no fault) is detected on the cable pairs of the
selected port.
Open The number of times OPEN is detected on the cable pairs of the selected port.
Short The number of times SHORT is detected on the cable pairs of the selected port.
Impedance Mismatch The number of times IMPEDANCE MISMATCH is detected on the cable pairs of the
selected port.
PassFailTotal This field summarizes the results of the cable diagnostics performed so far.
• Pass : the number of times cable diagnostics were successfully completed on the
selected port.
• Fail : the number of times cable diagnostics failed to complete on the selected port.
• Total : the total number of times cable diagnostics have been attempted on the selected
port.
Run Count Run Count : The total number of iterations
Pass Count Pass Count
Failure Count Failure Count
Section 3.18.8.3
Clearing Cable Diagnostic Statistics
The following describes how to clear the statistics collected when cable diagnostic tests are performed. All of the
statistics or only those for a specific switch can be cleared.
Clearing All Cable Diagnostic Statistics
To clear the statistics, do the following:
1. Navigate to switch and click clear-cable-stats-all in the menu. The Trigger Action form appears.

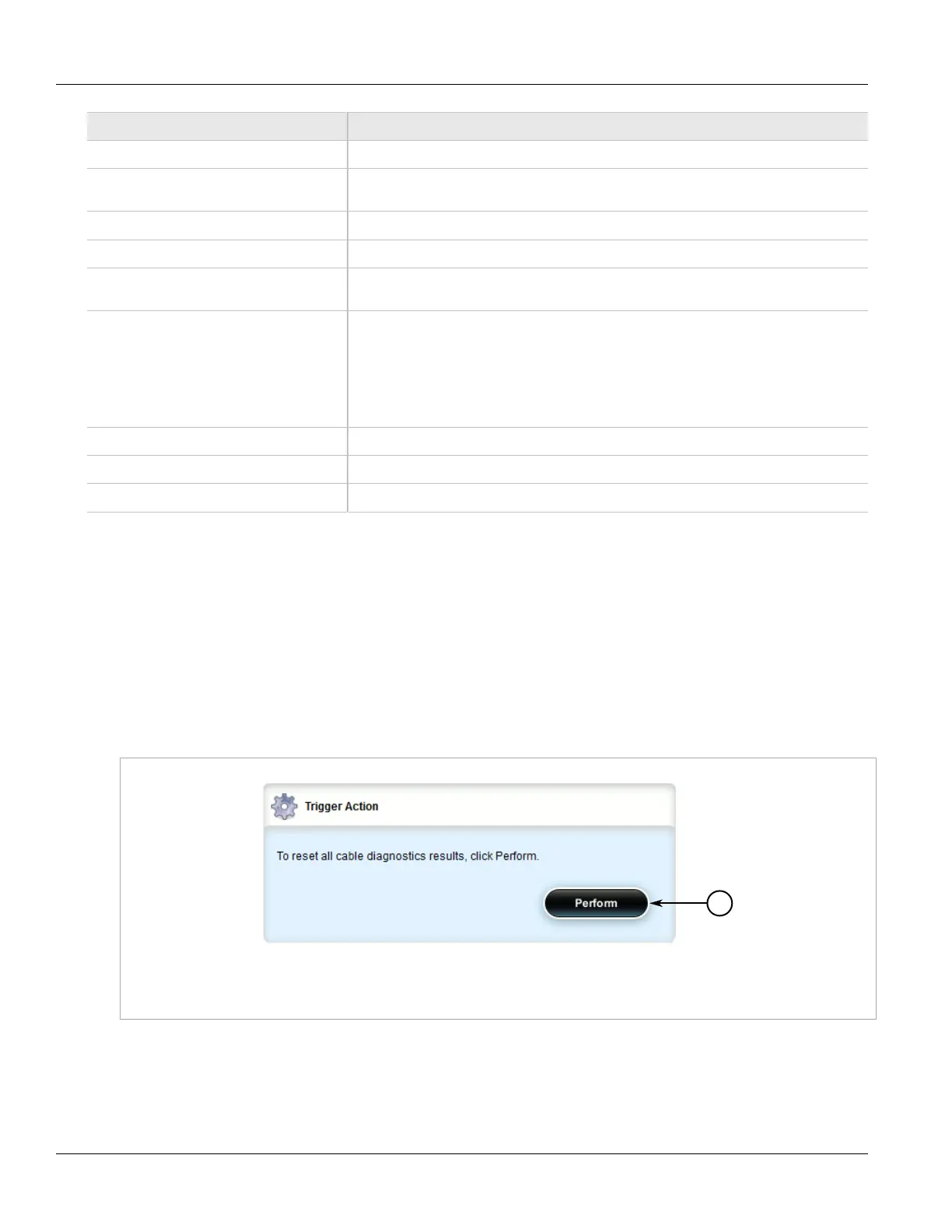

Figure 108: Trigger Action Form
1. Perform Button
2. Click Perform to clear the statistics.
Clearing Cable Diagnostic Statistics for a Specific Switch
To clear only the statistics for a specific switch, do the following:
