Deleting a VLAN ID for a Routable Ethernet Port or Virtual
Switch 747

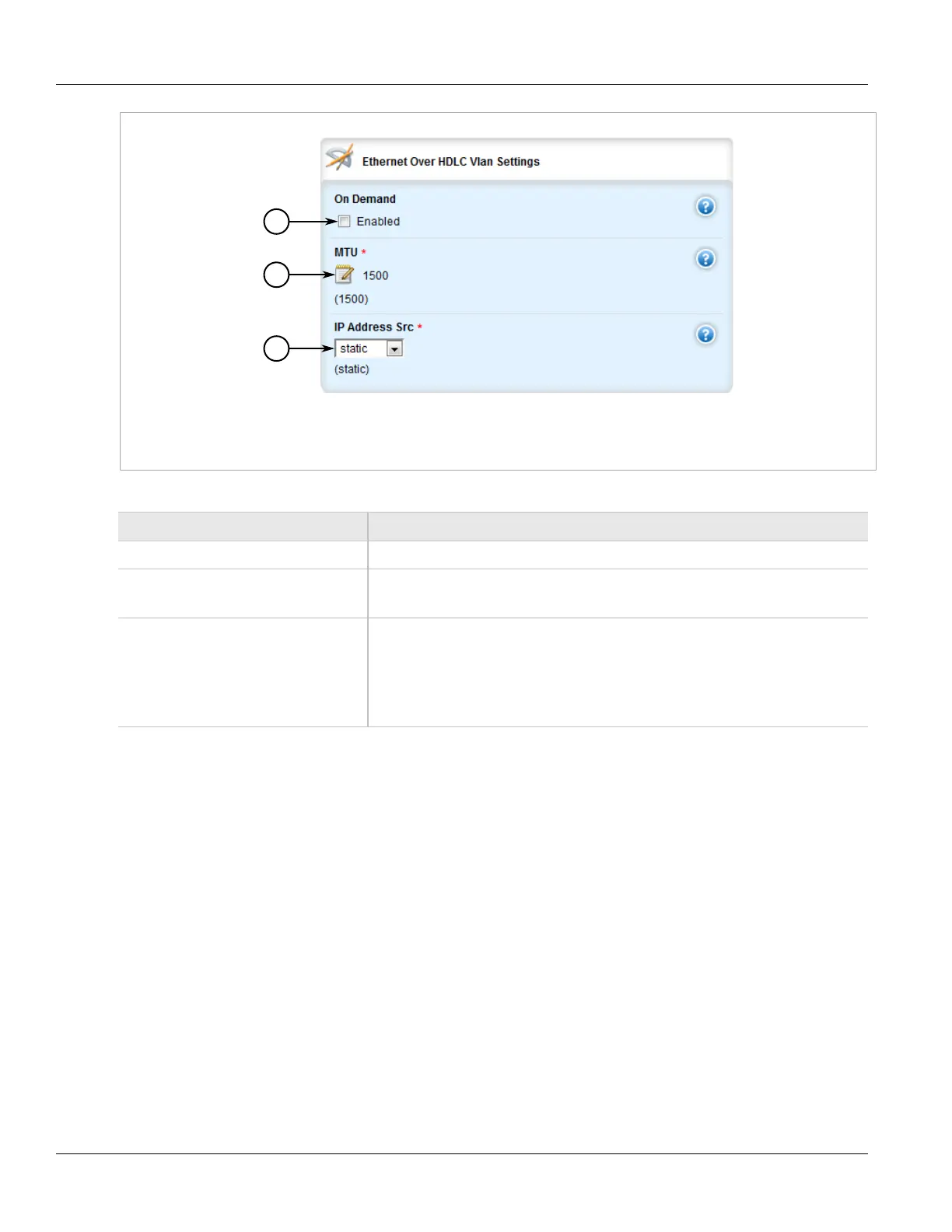

Figure 862: Ethernet Over HDLC VLAN Settings Form
1. On-Demand Check Box 2. MTU Box 3. IP Address Source List
7. Configure the following parameter(s) as required:
Parameter Description
On Demand This interface is up or down on demand of link fail over.
MTU Default: 1500
Maximum transmission unit (largest packet size allowed for this interface).
IP Address Src Synopsis: static, dynamic
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP. The
DYNAMIC option is a common case of a dynamically assigned IP address. It switches
between BOOTP and DHCP until it gets the response from the relevant server. It must
be static for non-management interfaces
8. Add a QoS map for the VLAN. For more information, refer to Section 5.37.7.2, “Adding a QoS Map”.
9. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
10. Click Exit Transaction or continue making changes.
Section 5.35.8.5
Deleting a VLAN ID for a Routable Ethernet Port or Virtual Switch
To delete a VLAN ID (VID) configured for either a routable Ethernet port or virtual switch, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » {interface} » {interface-name} » vlan, where {interface} is the type of interface
(either eth or virtualswitch) and {interface-name} is the name of the interface. The VLANs table appears.
