RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Viewing the Slot Status 35

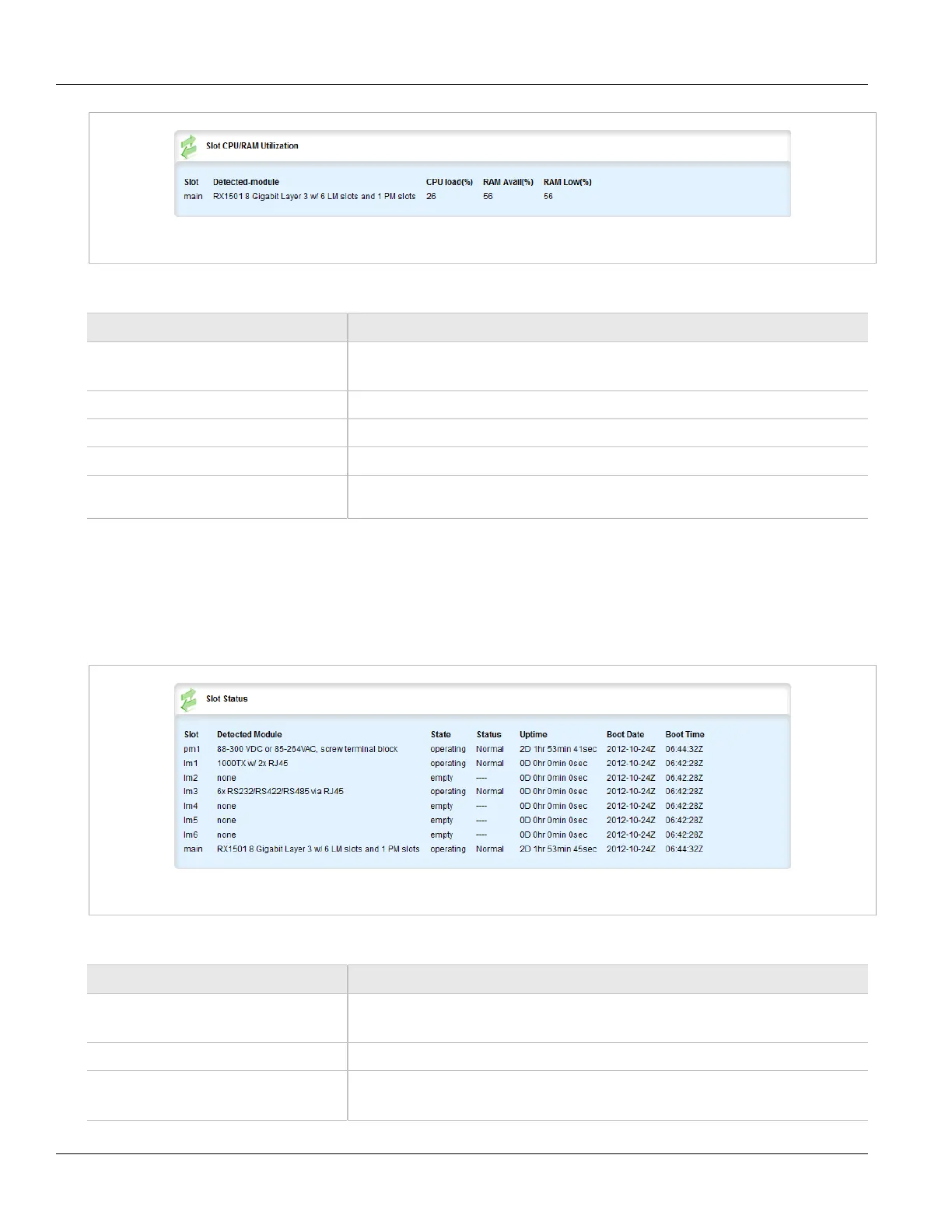

Figure 22: Slot CPU/RAM Utilization Table
This table provides the following information:
Parameter Description
slot Synopsis: pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, cm, em, trnk
The slot name, as marked on the silkscreen across the top of the chassis.
detected-module The installed module's type specifier.
CPU load(%) The CPU load, in percent, on the installed module.
RAM Avail(%) The proportion of memory (RAM) currently unused, in percent, on the installed module.
RAM Low(%) The lowest proportion of unused memory (RAM), in percent, recorded for the installed
module since start-up.
Section 3.2.5
Viewing the Slot Status
To view the overall status of each slot, navigate to chassis » status. The Slot Status table appears.
Figure 23: Slot Status Table
This table provides the following information:
Parameter Description
slot Synopsis: pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, cm, em, trnk
The slot name, as marked on the silkscreen across the top of the chassis.
Detected Module The installed module's type specifier.
State Synopsis: unknown, empty, disabled, resetting, operating, failed, disconnected
The current state of the installed module.
