RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Managing Traffic Control Priorities 761

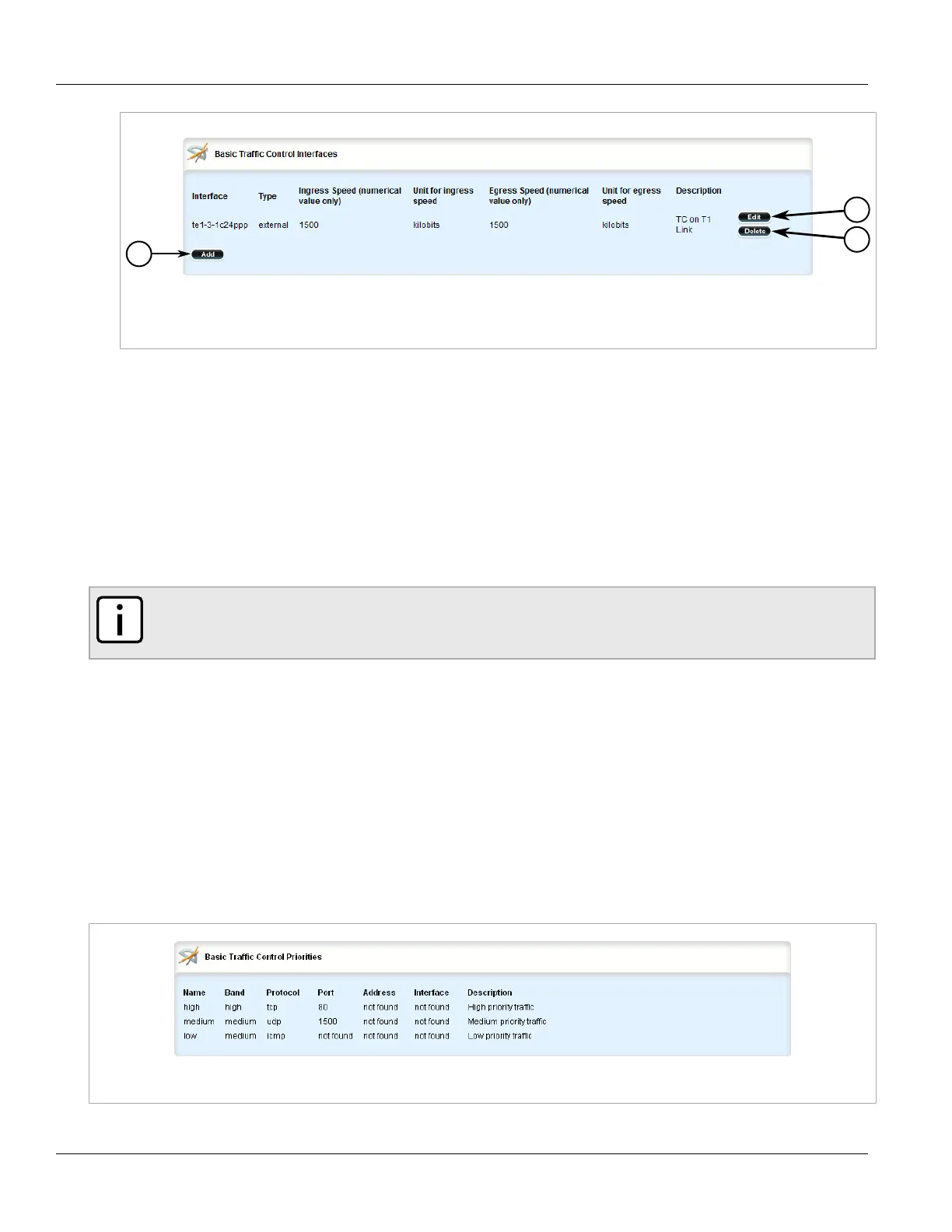

Figure 874: Basic Traffic Control Interfaces Table
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen traffic control interface.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.37.3
Managing Traffic Control Priorities
Traffic control priorities define priorities used for traffic shaping.
NOTE
Traffic control priorities can only be configured in basic mode. For more information about setting the
traffic control mode, refer to Section 5.37.1, “Enabling and Configuring Traffic Control”.
The following sections describe how to configure and manage traffic control priorities:
• Section 5.37.3.1, “Viewing a List of Traffic Control Priorities”
• Section 5.37.3.2, “Adding a Traffic Control Priority”
• Section 5.37.3.3, “Deleting a Traffic Control Priority”
Section 5.37.3.1
Viewing a List of Traffic Control Priorities
To view a list of traffic control priorities, navigate to qos » traffic-control » basic-configuration » tcpriorities. If
priorities have been configured, the Basic Traffic Control Priorities table appears.
Figure 875: Basic Traffic Control Priorities Table
