RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Deleting a Static VLAN 735
Parameter Description
VLAN ID <int, 1 \.\. 15>;;The VLAN identifier is used to identify the VLAN in tagged Ethernet
frames according to IEEE 802.1Q.
4. Click Add to create the new static VLAN. The Static VLAN Table form appears.

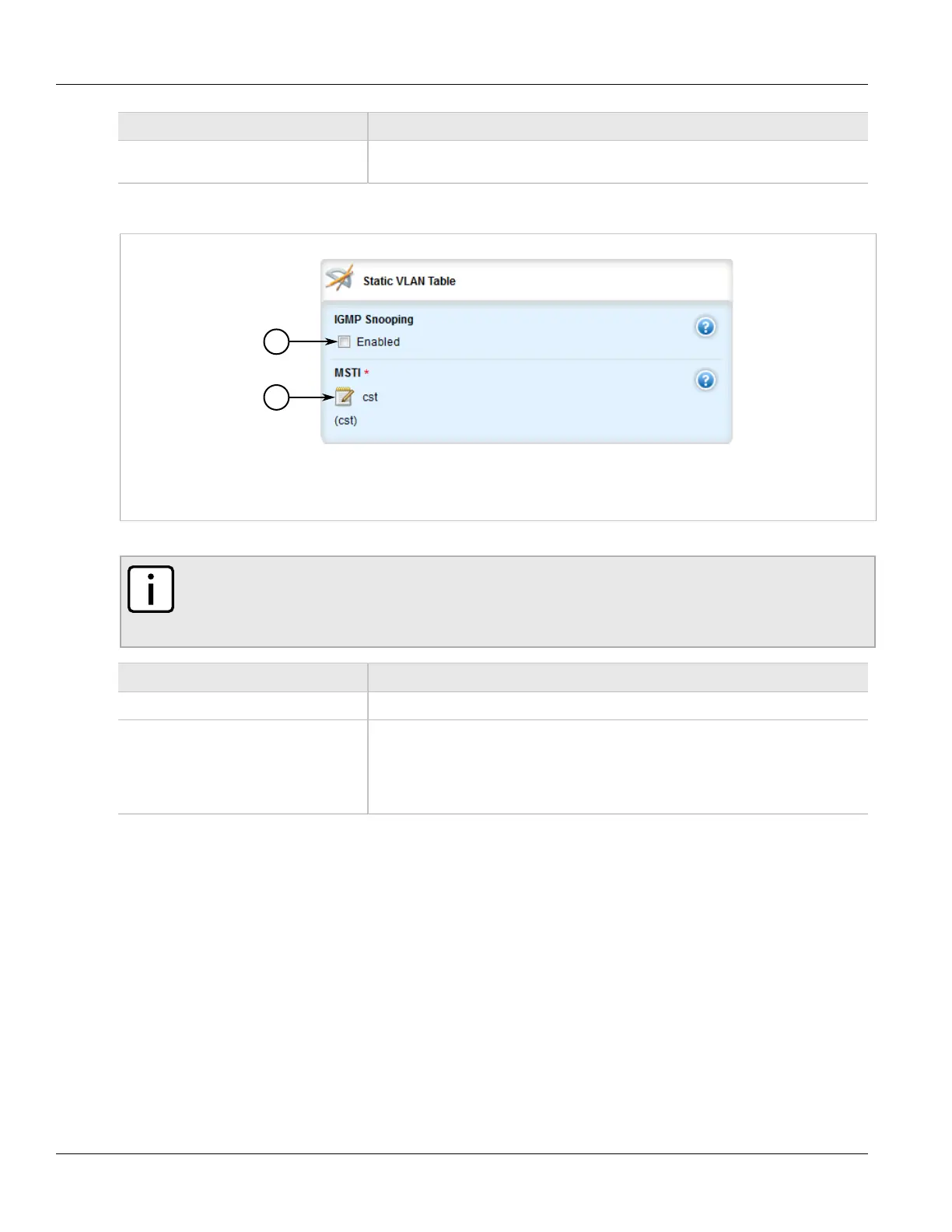

Figure 844: Static VLAN Table Form
1. IGMP Snooping Check Box 2. MSTI Box
5. Configure the following parameter(s) as required:
NOTE
If IGMP Snooping is not enabled for the VLAN, both IGMP messages and multicast streams
will be forwarded directly to all members of the VLAN. If any one member of the VLAN joins a
multicast group, then all members of the VLAN will receive the multicast traffic.
Parameter Description
IGMP Snooping Enables or disables IGMP Snooping on the VLAN.
MSTI Synopsis: cst,
Default: cst
Only valid for Multiple Spanning Tree Protocol (MSTP) and has no effect, if MSTP is not
used. The parameter specifies the Multiple Spanning Tree Instance (MSTI) the VLAN
should be mapped to.
6. If needed, configure a forbidden ports list. For more information, refer to Section 5.35.5.2, “Adding a
Forbidden Port”.
7. Configure the VLAN. For more information, refer to Section 5.35.2, “Configuring VLANs for Switch Ethernet
Ports”.
8. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
9. Click Exit Transaction or continue making changes.
Section 5.35.4.3
Deleting a Static VLAN
To delete a static VLAN for either a routable Ethernet port or virtual switch, do the following:
