Viewing Statistics for Routable Interfaces 789
Section 5.38.2
Viewing Statistics for Routable Interfaces
To view basic statistics for all routable interfaces, navigate to interfaces » ip. The Routeable Interface
Statistics form appears.

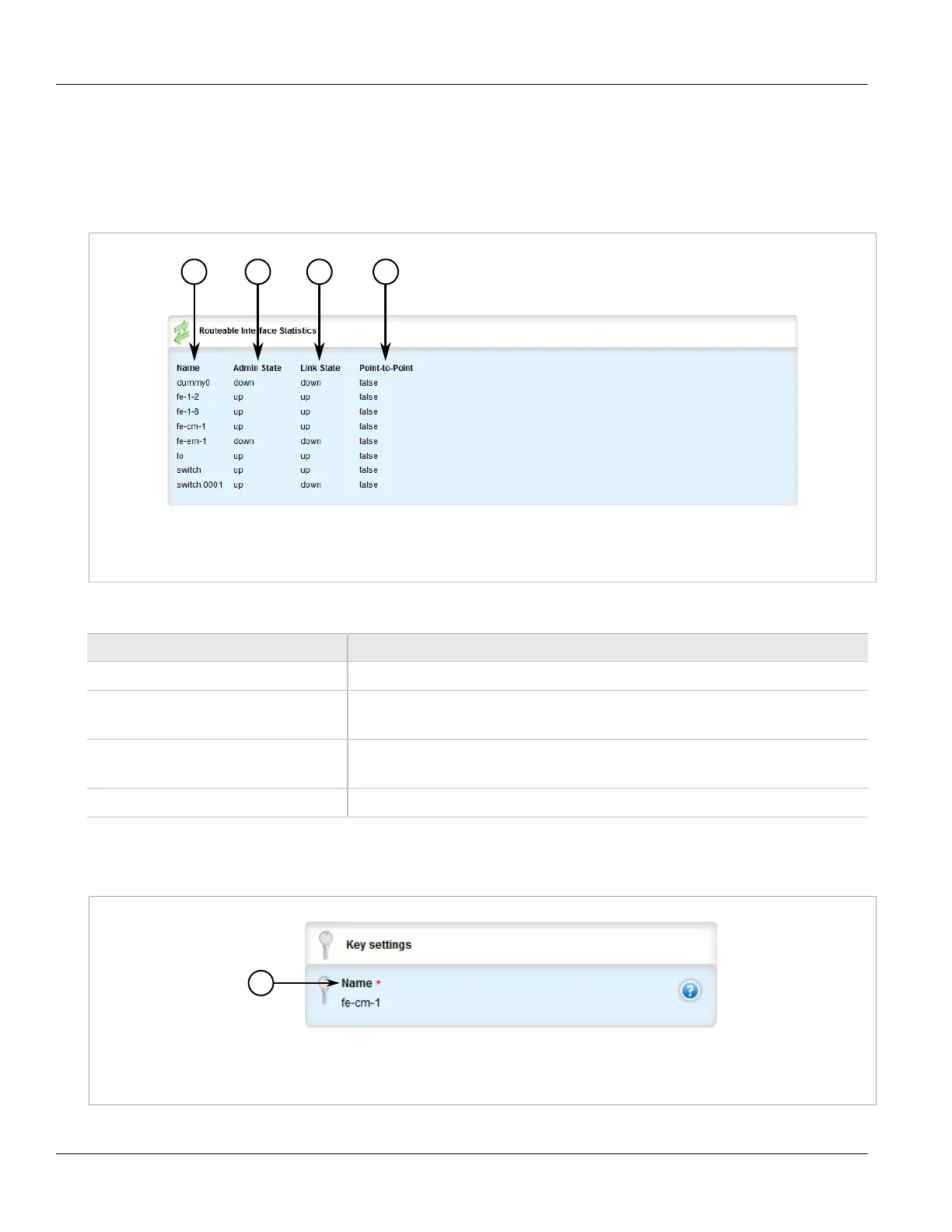

Figure 907: Routeable Interface Statistics Form
1. Name 2. Admin State 3. Link State 4. Point-to-Point
This table displays the following information:
Parameter Description
Name The name of the interface.
Admin State Synopsis: up, down, testing, unknown, dormant, notPresent, lowerLayerDown
The port's administrative status.
State Synopsis: up, down, testing, unknown, dormant, notPresent, lowerLayerDown
Shows whether the link is up or down.
Point-to-Point The point-to-point link.
To view statistics for specific routable interfaces, navigate to interfaces » ip » {interfaces}, where {interfaces}
is the name of the routable interface. The Key Settings, Routable Interface Statistics, Receive Statistics and
Transmit Statistics forms appear.
Figure 908: Key Settings Form
1. Name
