RUGGEDCOM ROX II
User Guide
Chapter 2
Using ROX II
Pinging an IPv4 Address Using MPLS Protocols 27
Section 2.6.4
Pinging an IPv4 Address Using MPLS Protocols
To ping an IPv4 address using the MPLS protocols, do the following:
1. Select the Tools menu and click Accessories.
2. Click MPLS Ping. The MPLS Ping screen appears.

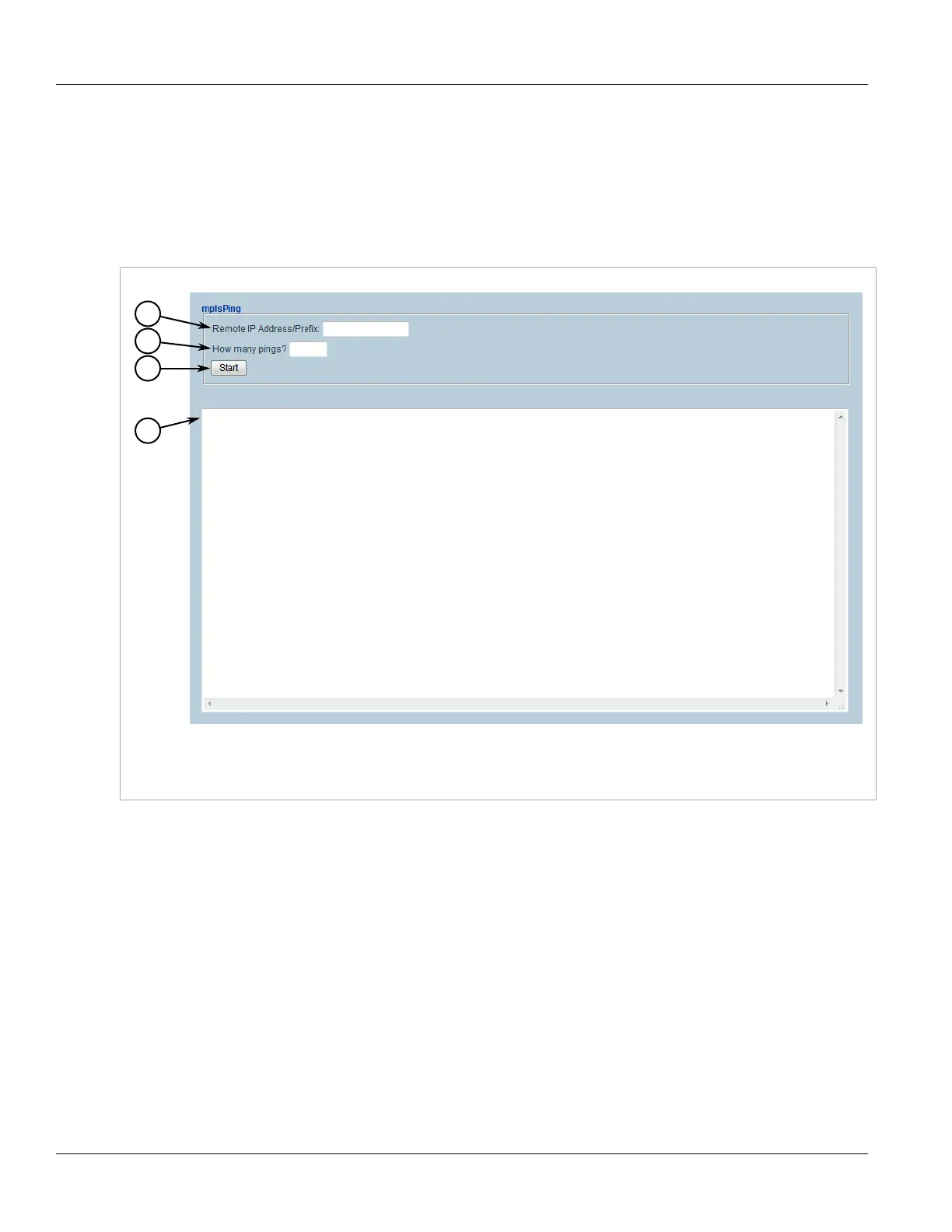

Figure 15: MPLS Ping Screen
1. Remote IP Address/Prefix Box 2. How Many Pings Box 3. Start Button 4. Result Window
3. Type the IPv4 address in the Remote IP Address/Prefix box.
4. Type the number of pings in the How Many Pings box and click Start. The results of the ping action are
displayed in the Result Window.
Section 2.6.5
Tracing the Route of an IPv4 Address Using MPLS Protocols
To trace the route of an IPv4 adress using MPLS protocols, do the following:
1. Select the Tools menu and click Accessories.
2. Click MPLS Traceroute. The MPLS Traceroute screen appears.
To Next Page
