Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
502 Managing Redistribution Metrics
3. Click Delete next to the chosen key.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.20.10
Managing Redistribution Metrics
Redistribution metrics redistribute routing information from other routing protocols, static routes or routes handled
by the kernel. Routes for subnets that are directly connected to the router, but not part of the RIP networks, can
also be advertised.
The following sections describe how to configure and manage redistribution metrics:
• Section 5.20.10.1, “Viewing a List of Redistribution Metrics”
• Section 5.20.10.2, “Adding a Redistribution Metric”
• Section 5.20.10.3, “Deleting a Redistribution Metric”
Section 5.20.10.1
Viewing a List of Redistribution Metrics
To view a list of redistribution metrics for dynamic RIP routes, navigate to routing » dynamic » rip »
redistribute. If metrics have been configured, the Redistribute Route from Other Protocols table appears.

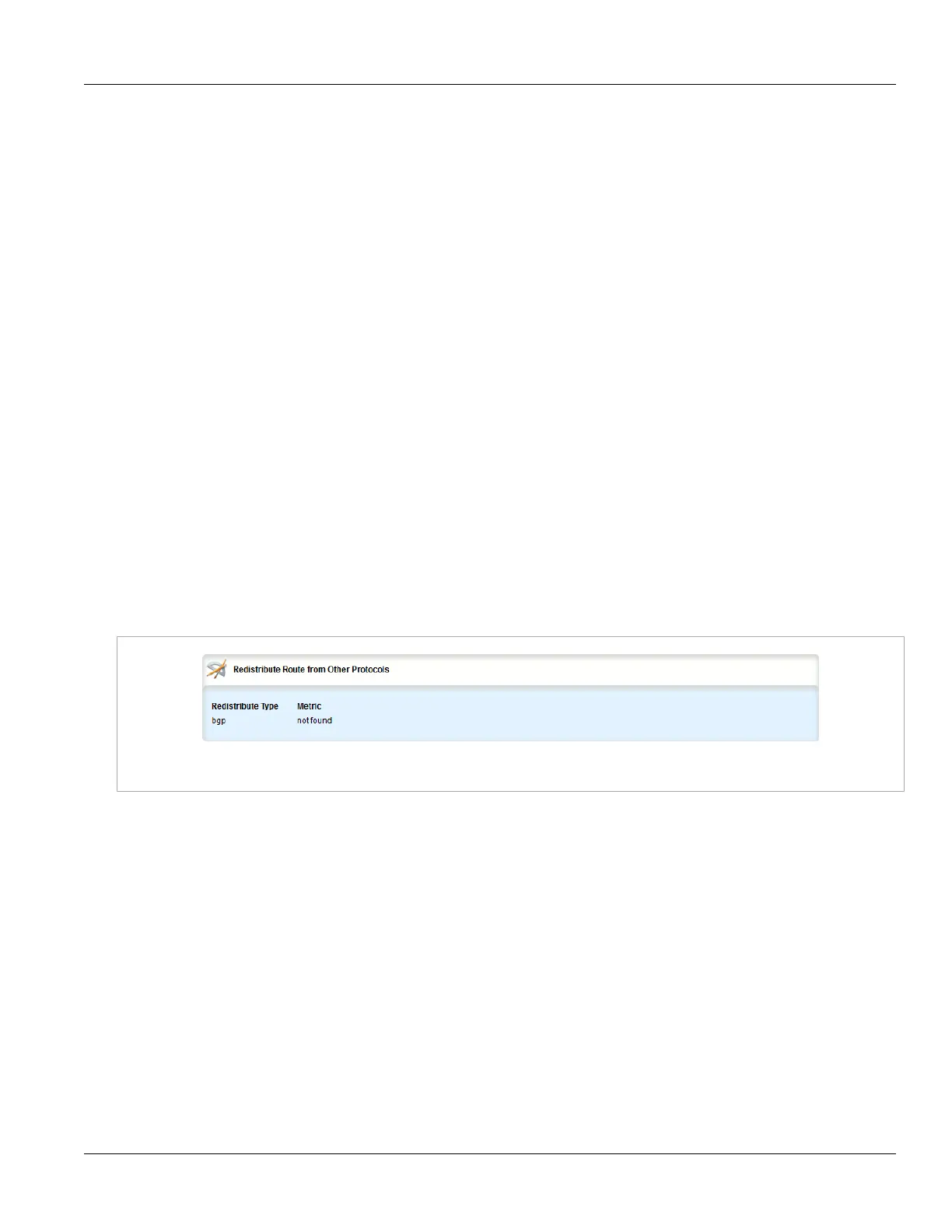

Figure 575: Redistribute Route from Other Protocols Table
If no redistribution metrics have been configured, add metrics as needed. For more information, refer to
Section 5.20.10.2, “Adding a Redistribution Metric”.
Section 5.20.10.2
Adding a Redistribution Metric
To add a redistribution metric for dynamic RIP routes, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to routing » dynamic » rip » redistribute and click <Add redistribute>. The Key Settings form
appears.
