4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.7
Viewing the Status of IPv4 Routes
To view the status of the IPv4 routes configured on the device, navigate to routing » status » ipv4routes. If IPv4
routes have been configured, the IPv4 Kernel Active Routing table appears.
NOTE
It is possible to create a route on a locally connected broadcast network (i.e. without a gateway)
without also bringing up a corresponding IP address on that interface. For example, it would
be possible to add 192.168.1.0/24 to switch.0001, which has an IP address of 10.0.1.1 but no
corresponding alias address on the 192.168.1.0/24 subnet.

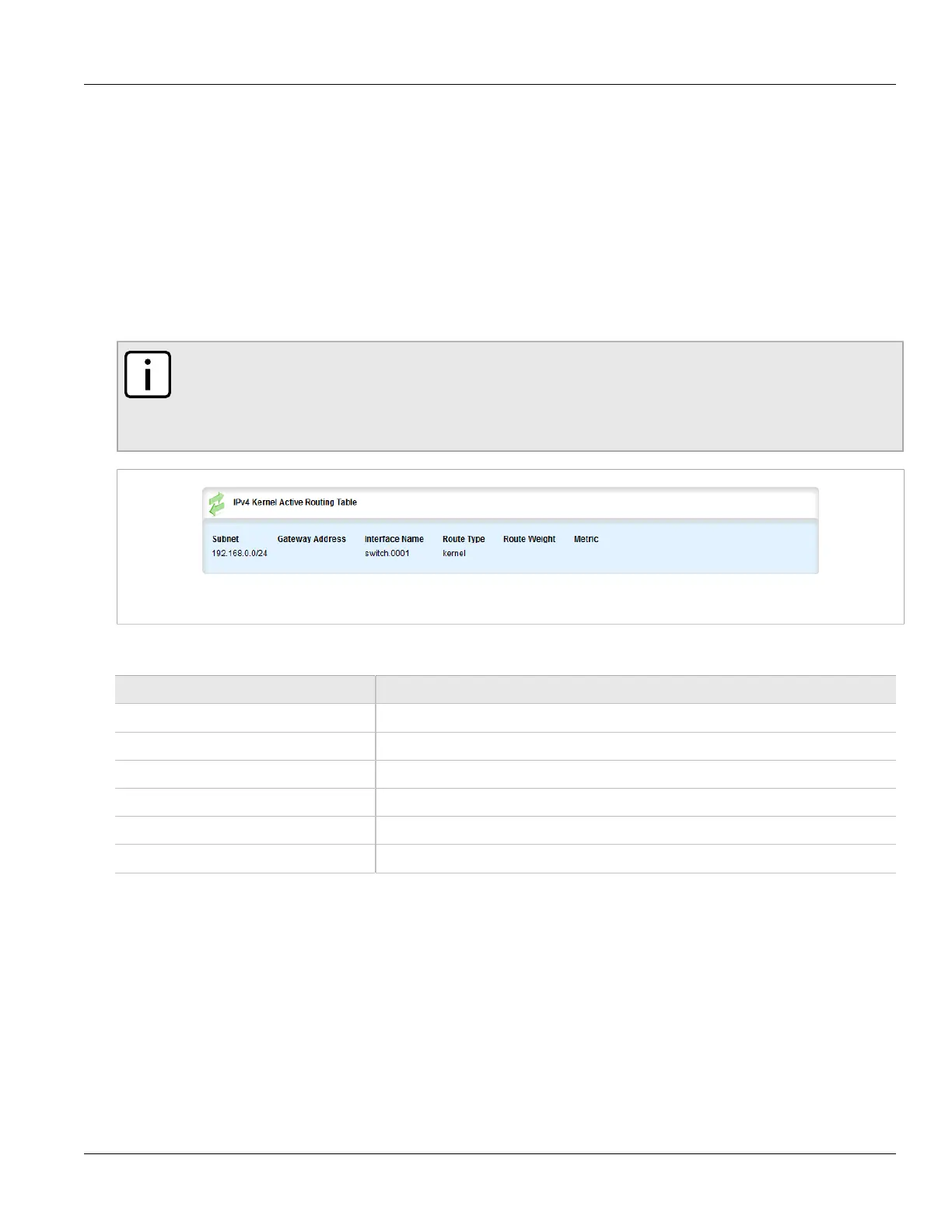

Figure 256: IPv4 Kernel Active Routing Table
This table provides the following information:
Parameter Description
Subnet The network/prefix.
Gateway Address The gateway address.
Interface Name The interface name.
Route Type The route type.
Route Weight The route weight.
Metric The route metric value.
If no IPv4 routes have been configured, add routes as needed. For more information, refer to Section 5.38.3.2,
“Adding an IPv4 Address”.
Section 5.8
Viewing the Status of IPv6 Routes
To view the status of the IPv6 routes configured on the device, navigate to routing » status » ipv6routes. If IPv6
routes have been configured, the IPv6 Kernel Active Routing table appears.
