Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
308 Configuring the DHCP Relay Agent
NOTE
While DHCP Relay and DHCP Server may both be configured to run concurrently, they may not be
configured to run on the same network interface.
To configure the DHCP relay agent, do the following:
• Section 5.14.1, “Configuring the DHCP Relay Agent”
• Section 5.14.2, “Viewing a List of DHCP Client Ports”
• Section 5.14.3, “Adding DHCP Client Ports”
• Section 5.14.4, “Deleting a DHCP Client Port”
Section 5.14.1
Configuring the DHCP Relay Agent
To configure the DHCP relay agent, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » dhcp-relay-agent. The DHCP Relay Agent form appears.

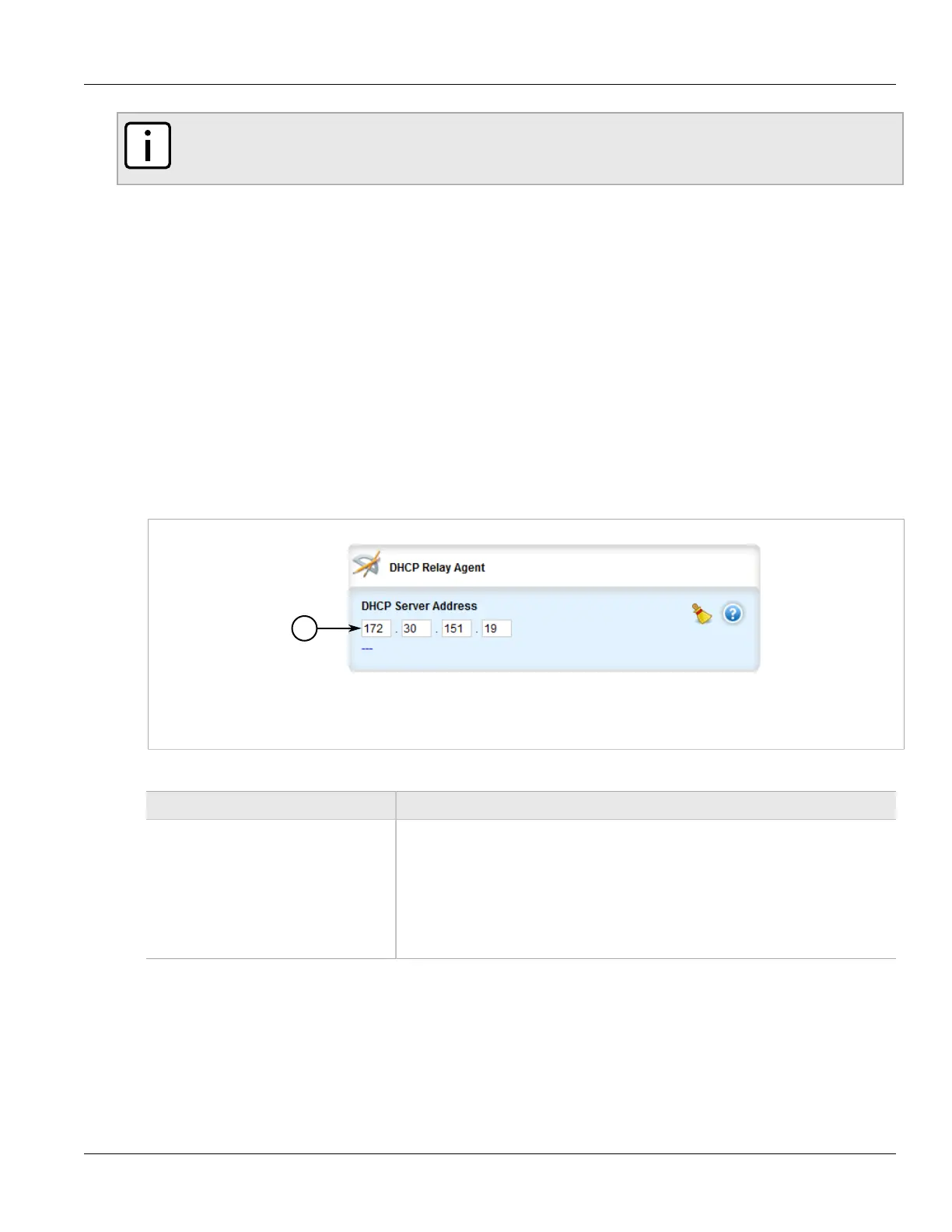

Figure 324: DHCP Relay Agent Form
1. DHCP Server Address Box
3. Configure the following parameter(s) as required:
Parameter Description
DHCP Server Address Synopsis: The ipv4-address type represents an IPv4 address in dotted-quad notation.
The IPv4 address may include a zone index, separated by a % sign. The zone index is
used to disambiguate identical address values. For link-local addresses, the zone index
will typically be the interface index number or the name of an interface. If the zone index
is not present, the default zone of the device will be used. The canonical format for the
zone index is the numerical format
The IP address of the DHCP server to which DHCP queries will be forwarded from this
relay agent.
4. Add client ports. For more information, refer to Section 5.14.3, “Adding DHCP Client Ports”.
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
