RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Configuring MAC Address Learning Options 689

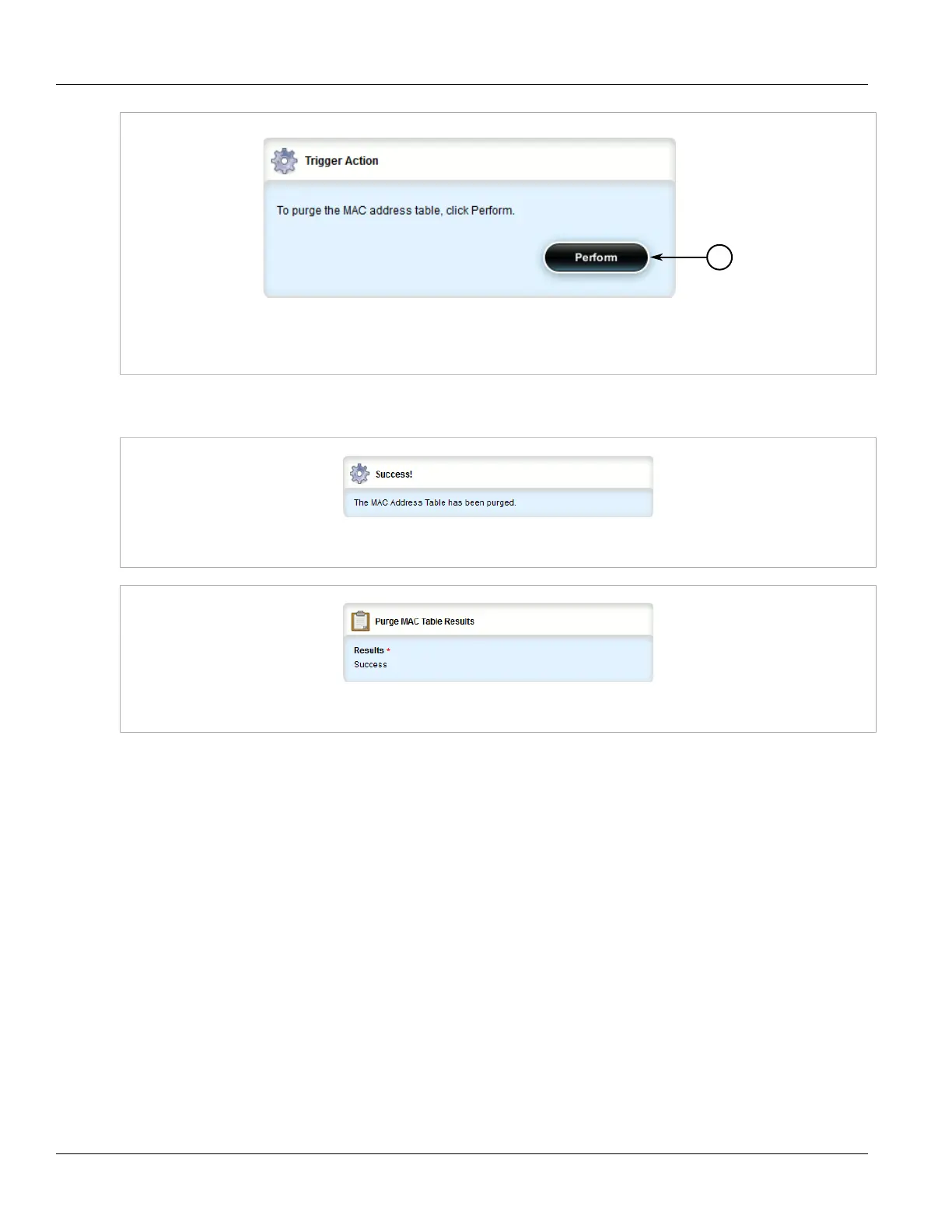

Figure 808: Trigger Action Form
1. Perform Button
2. Click the Perform button. Once the table is purged, the Success! and Purge MAC Table Results forms
appear.
Figure 809: Success! Form
Figure 810: Purge MAC Table Results Form
Section 5.33.3
Configuring MAC Address Learning Options
The MAC address learning options control how and when MAC addresses are removed automatically from the
MAC address table. Individual adresses are removed when the aging timer is exceeded. Addresses can also be
removed when a link failure or topology change occurs.
To configure the MAC address learning options, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » mac-tables. The MAC Tables form appears.
