RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Viewing a List of Ethernet Types 661
Section 5.29.10.1
Viewing a List of Ethernet Types
To view a list of Ethernet types configured for a generic tunnel, navigate to tunnel » l2tunneld » generic »
{name} » ethernet-type, where {name} is the name of the generic tunnel. If Ethernet types have been
configured, the L2 Ethernet Type table appears.

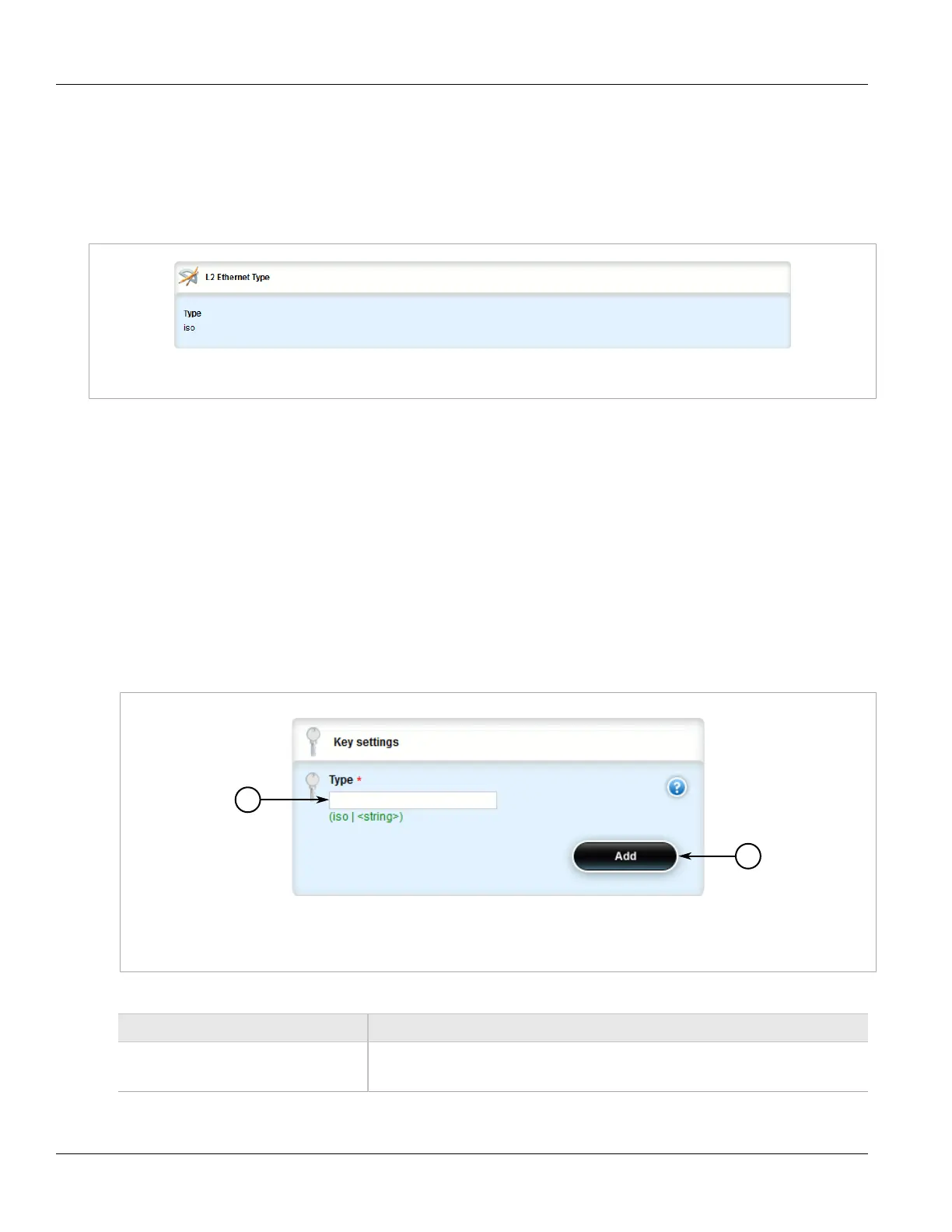

Figure 779: L2 Ethernet Type Table
If no Ethernet types have been configured, add types as needed. For more information, refer to
Section 5.29.10.2, “Adding an Ethernet Type”.
Section 5.29.10.2
Adding an Ethernet Type
To add an Ethernet type for a generic tunnel, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to tunnel » l2tunneld » generic » {name} » ethernet-type, where {name} is the name of the
generic tunnel.
3. Click <Add ethernet-type>. The Key Settings form appears.
Figure 780: Key Settings Form
1. Type Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
type Synopsis: iso,
The Ethernet type to be forwarded (ie. 0xFEFE).
5. Click Add to add the Ethernet type.
