742 Adding a Virtual Switch VLAN
Section 5.35.7.2
Adding a Virtual Switch VLAN
To add virtual switch VLAN, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » virtualswitch » {id} » vlan, where {id} is the ID assigned to the virtual switch.
3. Click <Add vlan>. The Key Settings form appears.

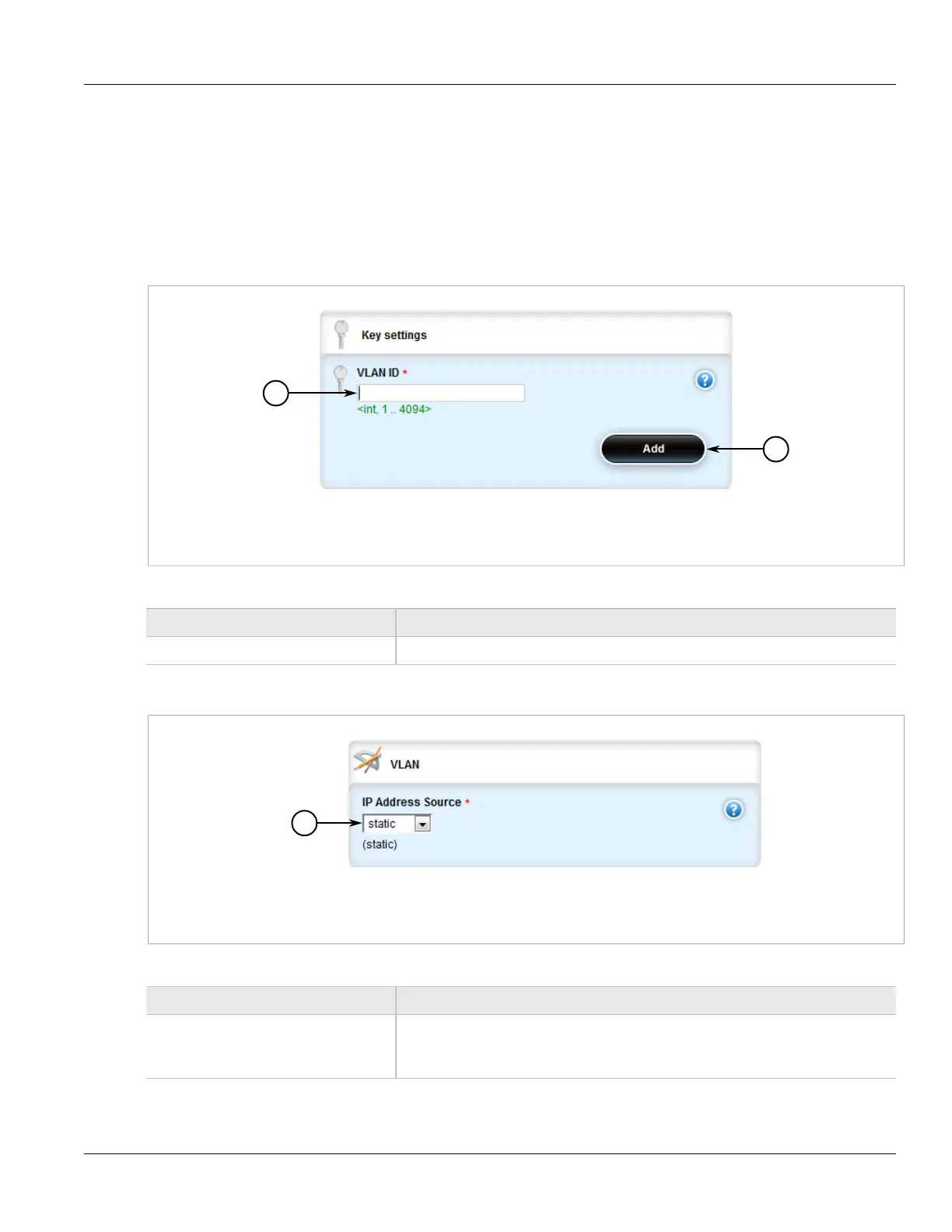

Figure 854: Key Settings Form
1. VLAN ID Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
VLAN ID VLAN ID for this routable logical interface
5. Click Add to create the new VLAN. The VLAN form appears.
Figure 855: VLAN Form
1. IP Address Source Box
6. Configure the following parameter(s) as required:
Parameter Description
IP Address Source Synopsis: static, dynamic
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP.
