RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Viewing a List of DHCP Client Ports 309
Section 5.14.2
Viewing a List of DHCP Client Ports
To view a list of DHCP relay agent client ports, navigate to switch » dhcp-relay-agent » dhcp-client-ports. If
client ports have been configured, the DHCP Relay Agent Client Ports table appears.

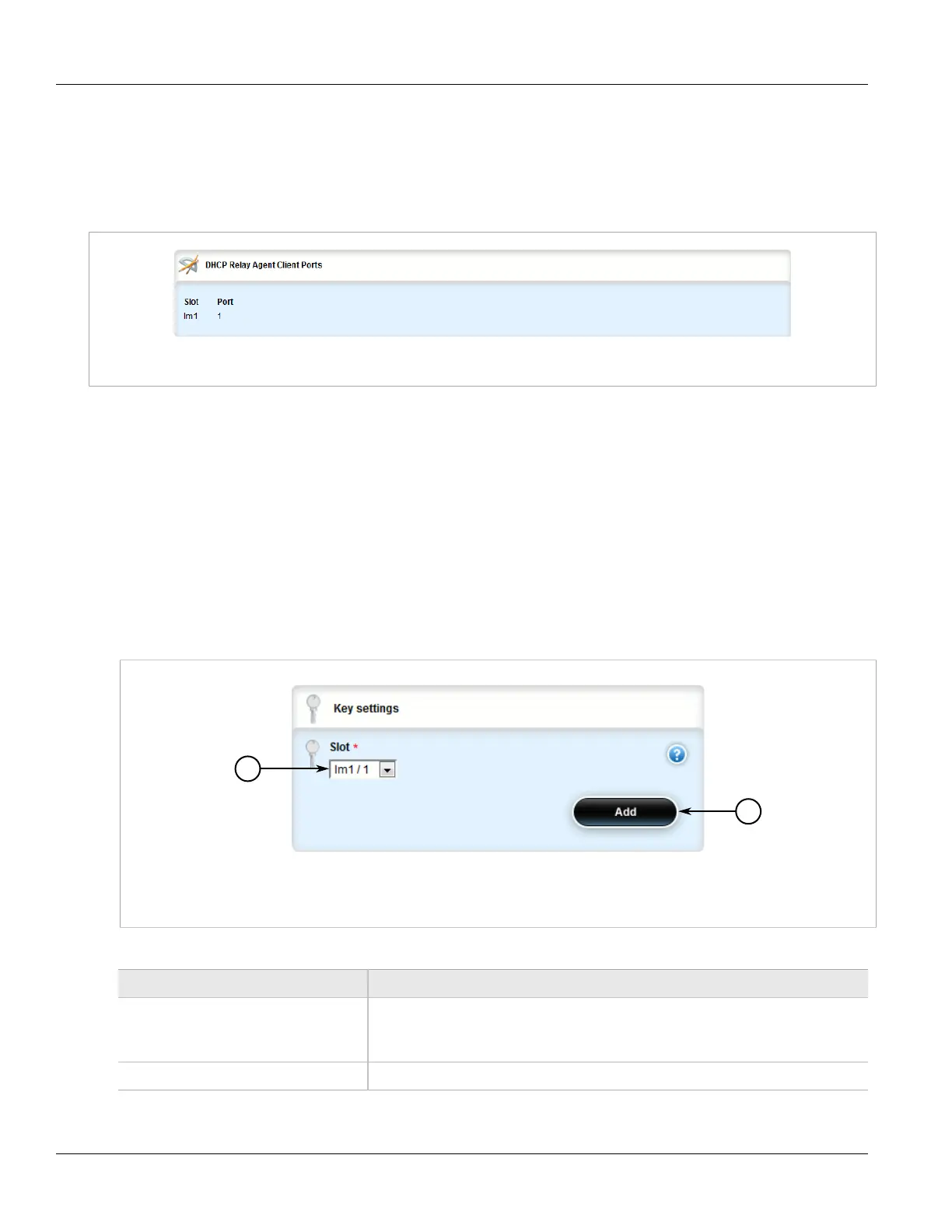

Figure 325: DHCP Relay Agent Client Ports Table
If no client ports have been configured, add client ports as needed. For more information, refer to Section 5.14.3,
“Adding DHCP Client Ports”.
Section 5.14.3
Adding DHCP Client Ports
To add a client port for the DHCP relay agent, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » dhcp-relay-agent » dhcp-client-ports and click <Add dhcp-client-ports>. The Key
Settings form appears.
Figure 326: Key Settings Form
1. Slot List 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
Slot Synopsis: sm, lm1, lm2, lm3, lm4, lm5, lm6
The name of the module location provided on the silkscreen across the top of the
device.
Port The selected ports on the module installed in the indicated slot.
4. Click Add to add the client port.
