Viewing a List of VLAN IDs for Routable Ethernet Ports
and Virtual Switches
Section 5.35.8.1
Viewing a List of VLAN IDs for Routable Ethernet Ports and Virtual Switches
To view a list of VLAN IDs (VIDs) configured for either a routable Ethernet port or virtual switch, navigate to
interface » {interface} » {interface-name} » vlan, where {interface} is the type of interface (either eth or
virtualswitch) and {interface-name} is the name of the interface. If VLAN IDs have been configured, the VLANs
table appears.

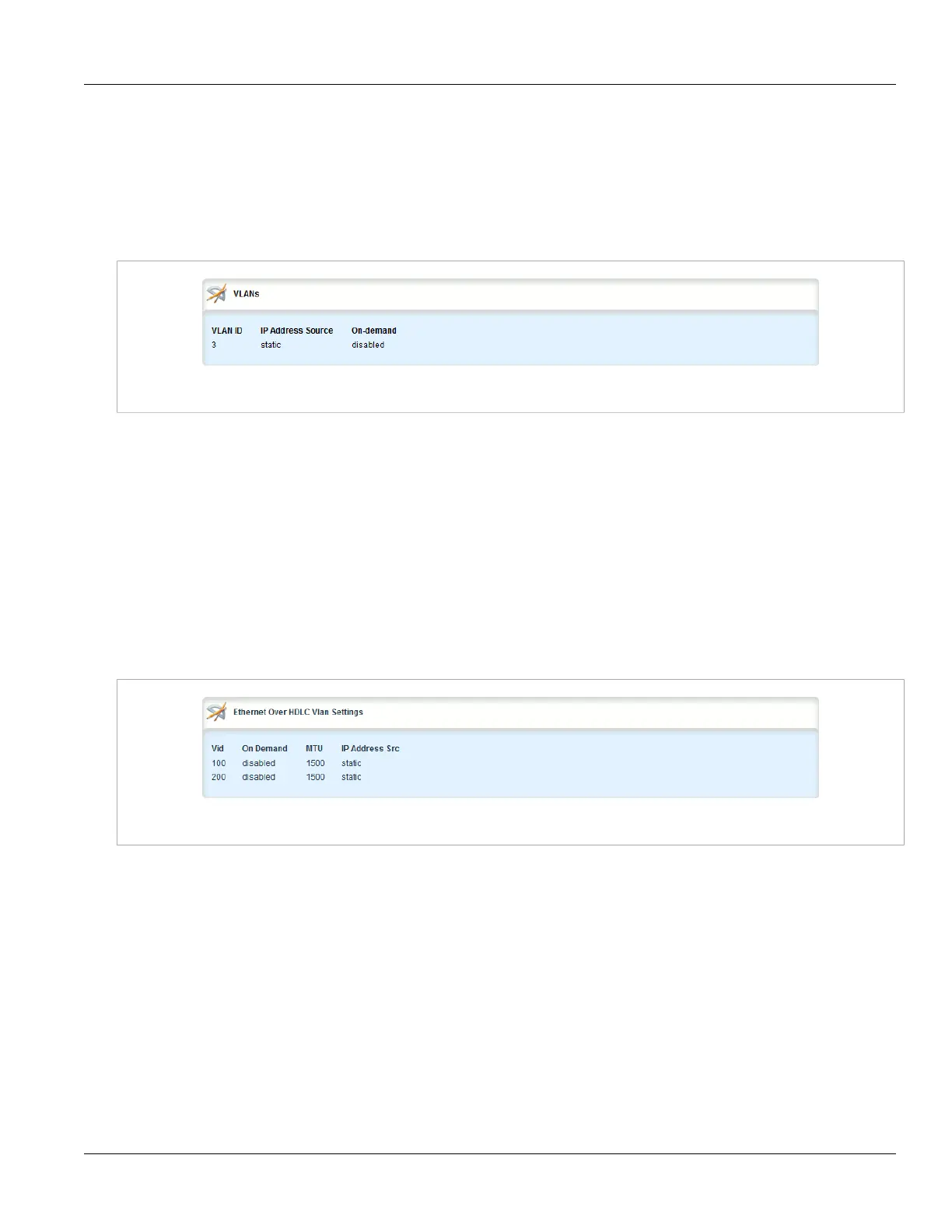

Figure 857: VLANs Table
If no VLAN IDs have been configured, add VLAN IDs as needed. For more information about configuring VLAN
IDs for either a routable Ethernet port or virtual switch, refer to Section 5.35.8.3, “Adding a VLAN ID to a Routable
Ethernet Port or Virtual Switch”.
Section 5.35.8.2
Viewing a List of VLAN IDs for T1/E1 Lines
To view a list of VLAN IDs (VIDs) configured for either a T1 or E1 line, navigate to interface » wan »
{interface} » {protocol} » channel » {number} » connection » hdlc-eth » vlan, where {interface} is the WAN
interface, {protocol} is either T1 or E1, and {number} is the channel number. If VLAN IDs have been configured,
the Ethernet Over HDLC VLAN Settings table appears.
Figure 858: Ethernet Over HDLC VLAN Settings Table
If no VLAN IDs have been configured, add VLAN IDs as needed. For more information about configuring VLAN
IDs for either a T1 or E1 line, refer to Section 5.35.8.4, “Adding a VLAN ID to a T1/E1 Line”.
Section 5.35.8.3
Adding a VLAN ID to a Routable Ethernet Port or Virtual Switch
To add a VLAN ID (VID) to either a routable Ethernet port or virtual switch, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » {interface} » {interface-name} » vlan, where {interface} is the type of interface
(either eth or virtualswitch) and {interface-name} is the name of the interface.
3. Click <Add vlan>. The Key Settings form appears.
