RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Adding an Egress Mark 785
• {id} is the ID given to the VLAN
• {priority} is the priority assigned to the QoS map
If egress marks have been configured, the Egress Marks Settings table appears.

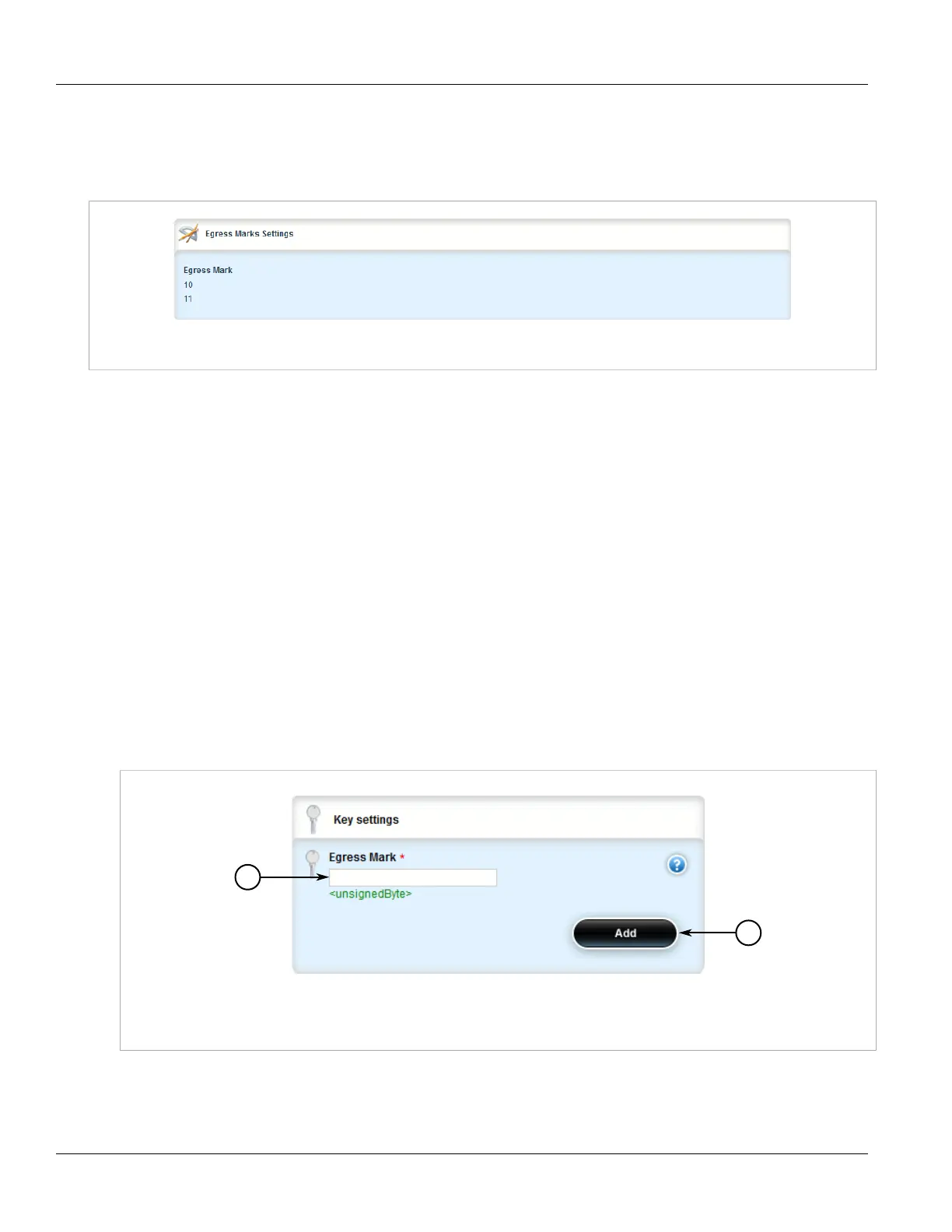

Figure 902: Egress Marks Settings Table
If no egress marks have been configured, add egress marks as needed. For more information, refer to
Section 5.37.8.2, “Adding an Egress Mark”.
Section 5.37.8.2
Adding an Egress Mark
To add an egress mark for a QoS Map, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » {interface} » {interface-name} » vlan » {id} » qosmap » {priority} » egress,
where:
• {interface} is the type of interface (either eth or virtualswitch)
• {interface-name} is the name of the interface
• {id} is the ID given to the VLAN
• {priority} is the priority assigned to the QoS map
3. Click <Add egress>. The Key Settings form appears.
Figure 903: Key Settings Form
1. Egress Mark Box 2. Add Button
4. Configure the following parameter(s) as required:
