524 Deleting a Routing Map Filter

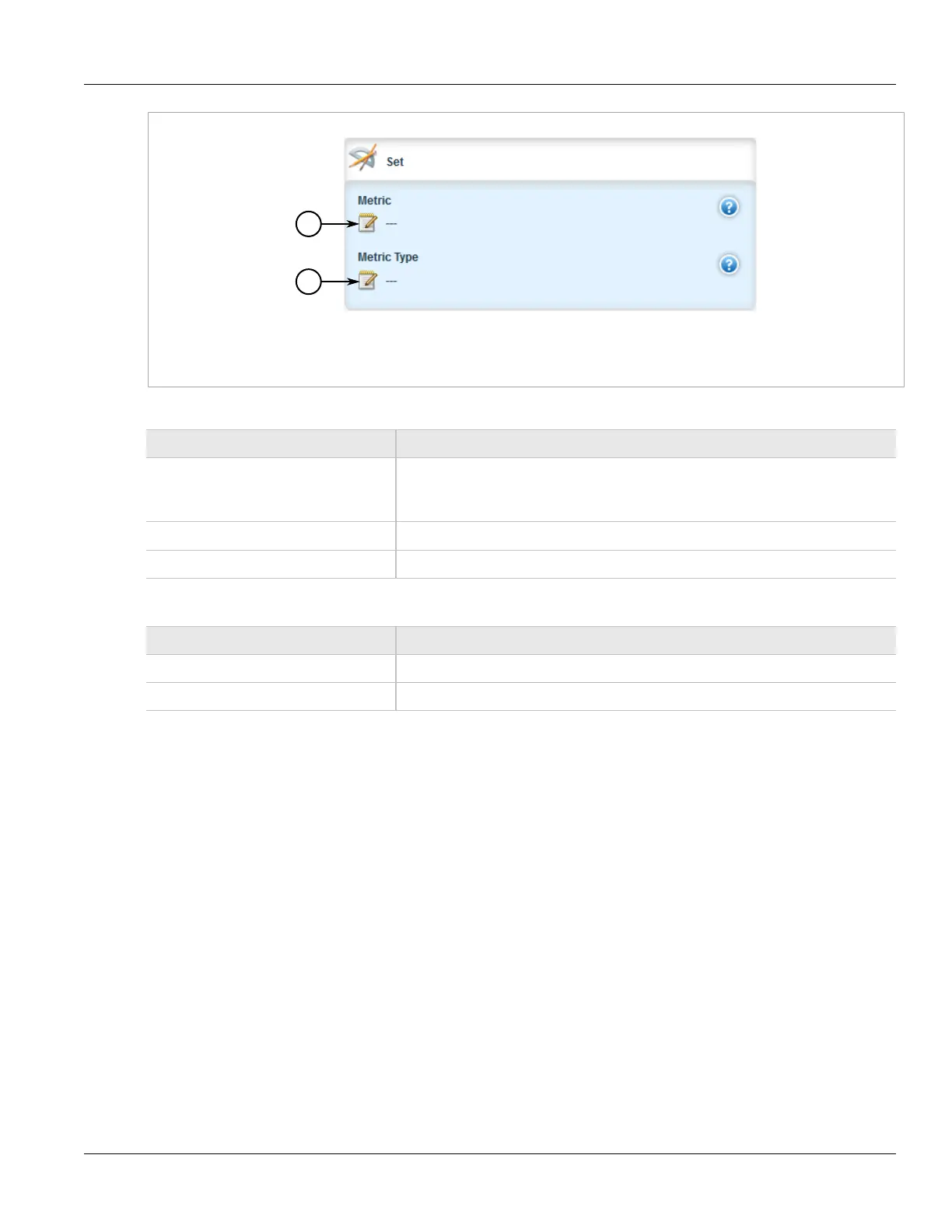

Figure 603: Set Form
1. Metric Box 2. Metric Type Box
6. On the Route Map Entry form, configure the following parameter(s) as required:
Parameter Description
Action Synopsis: deny, permit
Default: permit
Action.
Call Route Map Jump to another route-map after match+set.
On Match Goto Go to this entry on match.
7. On the Set form, configure the following parameter(s) as required:
Parameter Description
Metric Metric value.
Metric Type External route type.
8. Configure the match rules for the route map filter. For more information, refer to Section 5.21.6.7,
“Configuring Match Rules”.
9. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
10. Click Exit Transaction or continue making changes.
Section 5.21.6.5
Deleting a Routing Map Filter
To delete a route map filter for dynamic OSPF routes, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to routing » dynamic » ospf » filter » route-map. The Route Map table appears.
