Adding a Forbidden Port 737
If no ports have been forbidden, add forbidden ports as needed. For more information, refer to Section 5.35.5.2,
“Adding a Forbidden Port”.
Section 5.35.5.2
Adding a Forbidden Port
To add a forbidden port, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » vlans » static-vlan » {name} » forbidden-ports, where {name} is the name of the
static VLAN.
3. Click <Add forbidden-ports>. The Key Settings form appears.

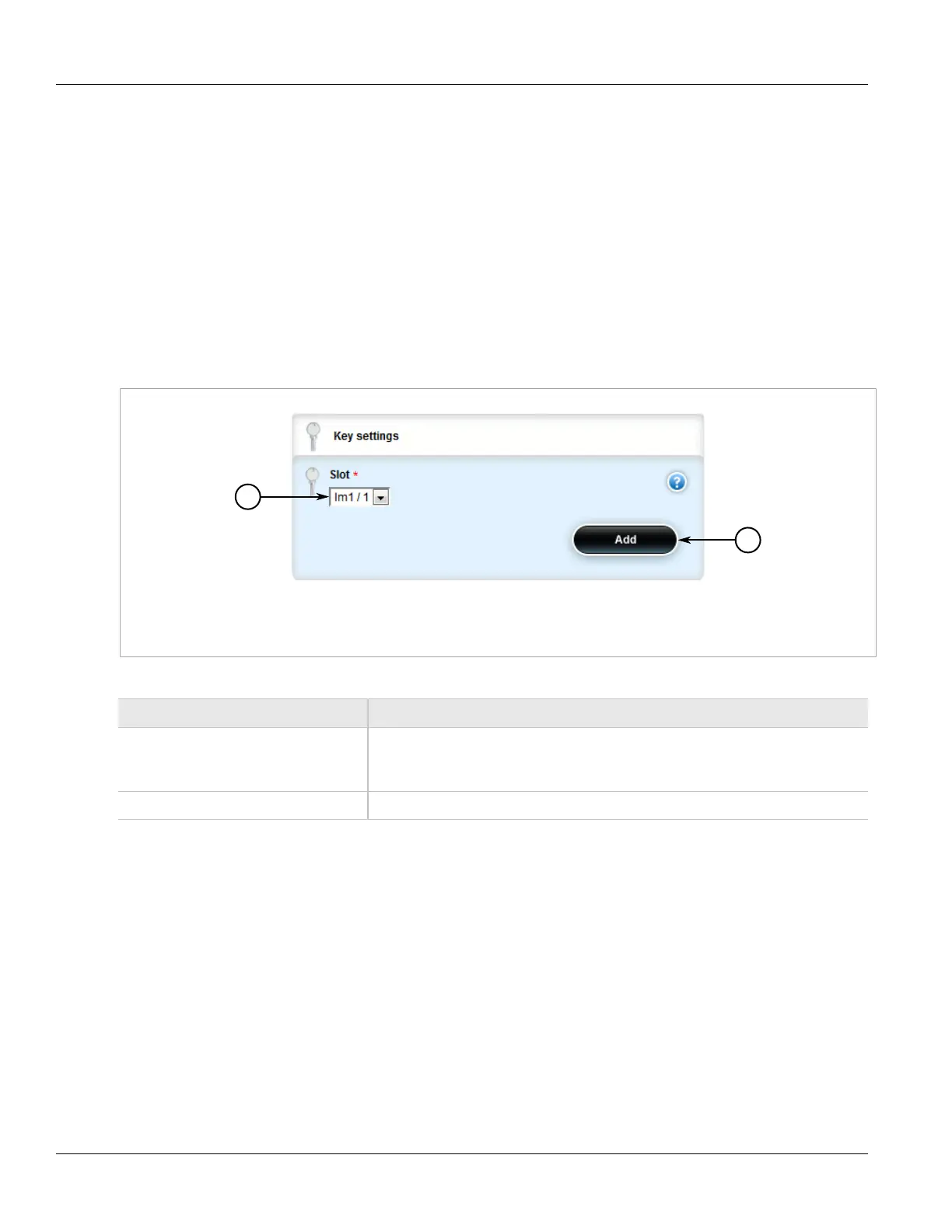

Figure 847: Key Settings Form
1. Slot Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
Slot Synopsis: sm, lm1, lm2, lm3, lm4, lm5, lm6
The name of the module location provided on the silkscreen across the top of the
device.
Port The selected ports on the module installed in the indicated slot.
5. Click Add to add the forbidden port.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 5.35.5.3
Deleting a Forbidden Port
To delete a forbidden port, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » vlans » static-vlan » {name} » forbidden-ports, where {name} is the name of the
static VLAN. The Forbidden Ports table appears.
