Managing Static VLANs 733
To configure the internal VLAN range, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to admin » switch-config. The Internal VLAN Range form appears.

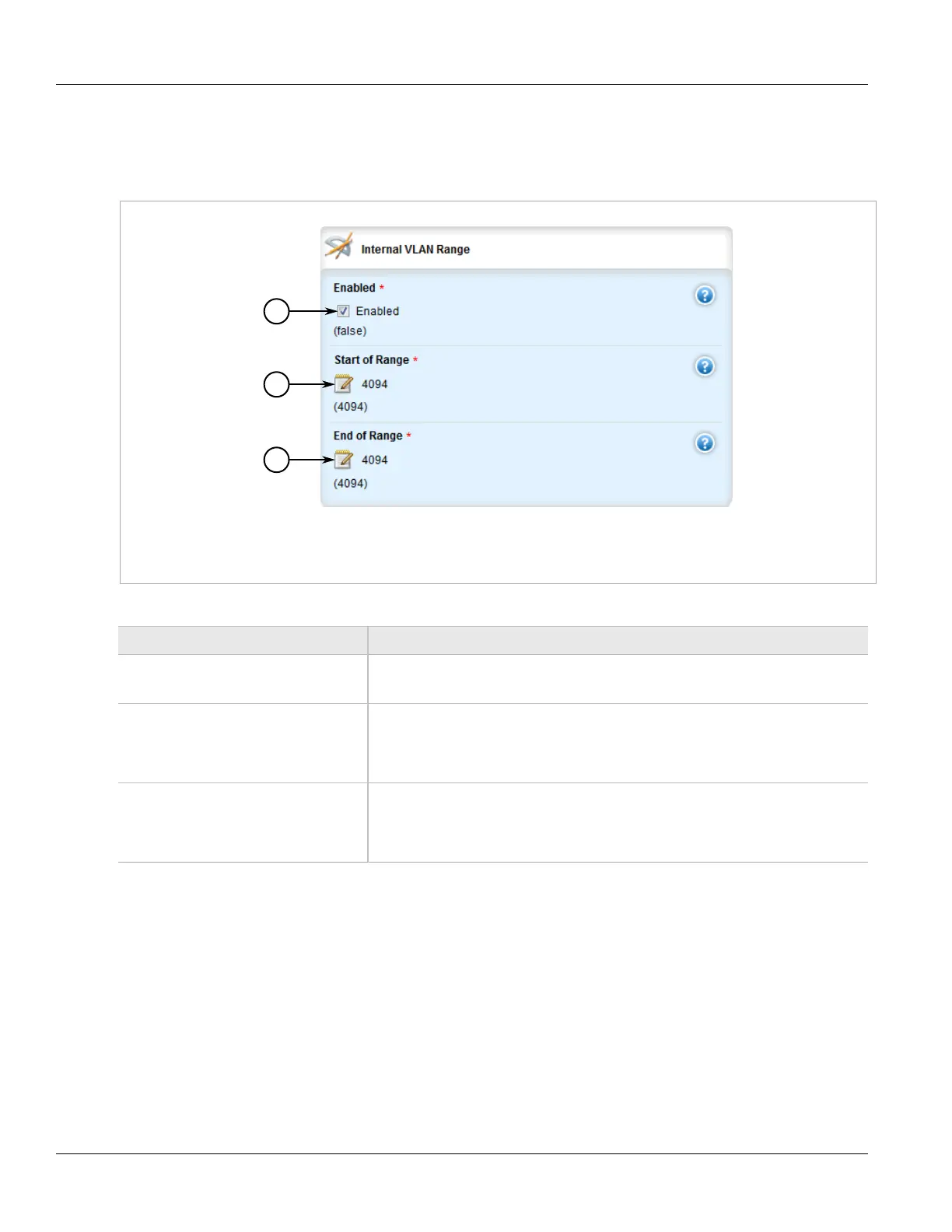

Figure 841: Internal VLAN Range Form
1. Enabled Check Box 2. Start of Range Box 3. End of Range Box
3. Configure the following parameters:
Parameter Description
enabled Default: false
Enables/disables the Internal VLAN Range settings.
Start of Range Default: 4094
Prerequisite: range-start must be less than or equal to range-end
Defines the lower end of a range of VLANs used for the device only. VLAN ID 1 is not
permitted.
End of Range Default: 4094
Prerequisite: range-end must be greater than or equal to range-start
Defines the higher end of a range of VLANs used for the device only.VLAN ID 1 is not
permitted.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.35.4
Managing Static VLANs
The following sections describe how to configure and manage static VLANs:
• Section 5.35.4.1, “Viewing a List of Static VLANs”
• Section 5.35.4.2, “Adding a Static VLAN”
