Line Build Out: tunes the shape of the T1 pulses and adjusts their amplitude depending
upon distances and the desired attenuation.
5. Add and configure channels for the T1 line. For more information, refer to Section 3.24.9.2, “Adding a
Channel”.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 3.24.7
Configuring an E1 Line
To configure E1 parameters for a WAN interface, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » wan » {interface}, where {interface} is the WAN interface.
3. Click the + symbol in the menu next to e1. The E1 Parameters form appears.

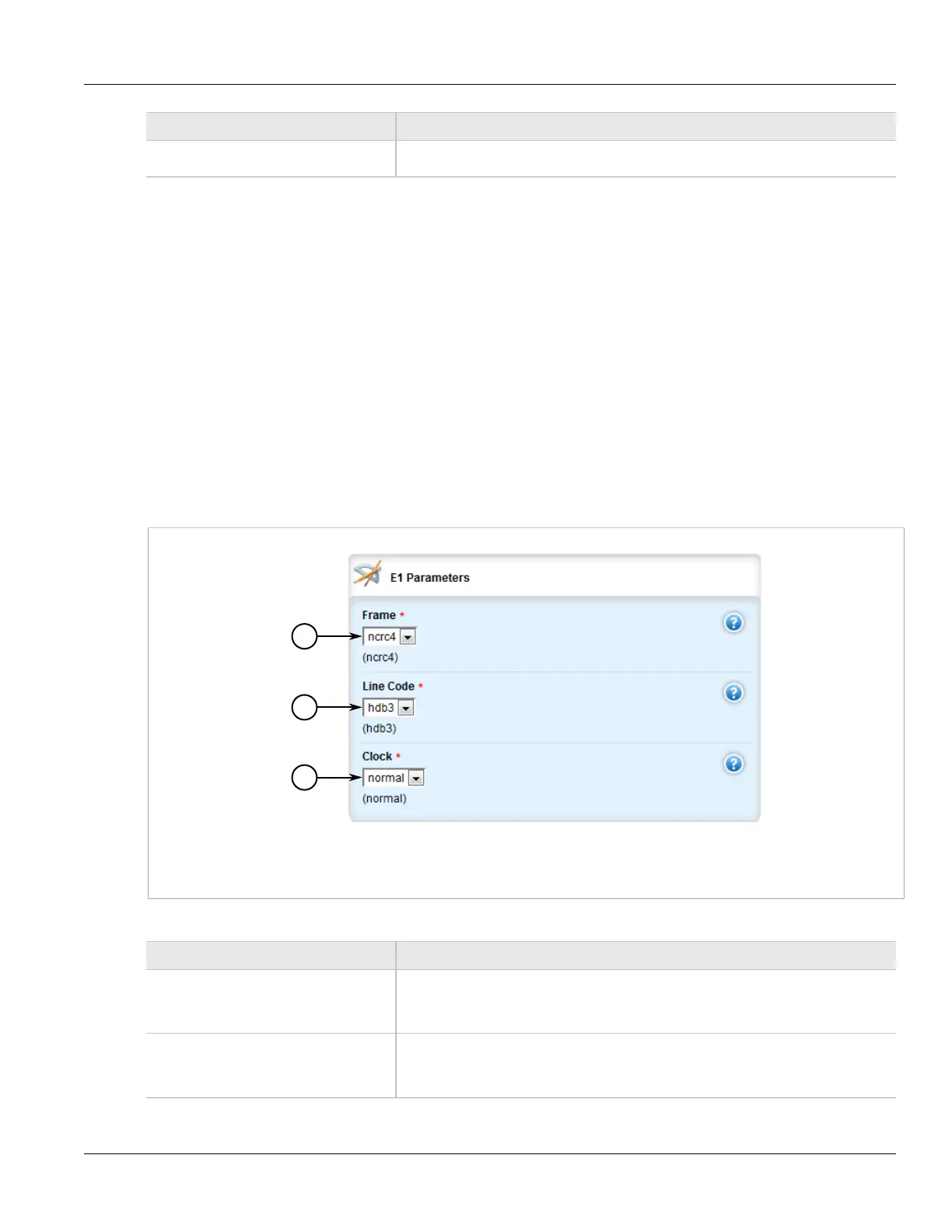

Figure 168: E1 Parameters Form
1. Frame List 2. Line Code List 3. Clock List
4. Configure the following parameter(s) as required:
Parameter Description
frame Synopsis: ncrc4, crc4
Default: ncrc4
The frame format.
Line Code Synopsis: hdb3
Default: hdb3
A line encoding/decoding scheme.
