RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Configuring the Firewall for a VPN 373

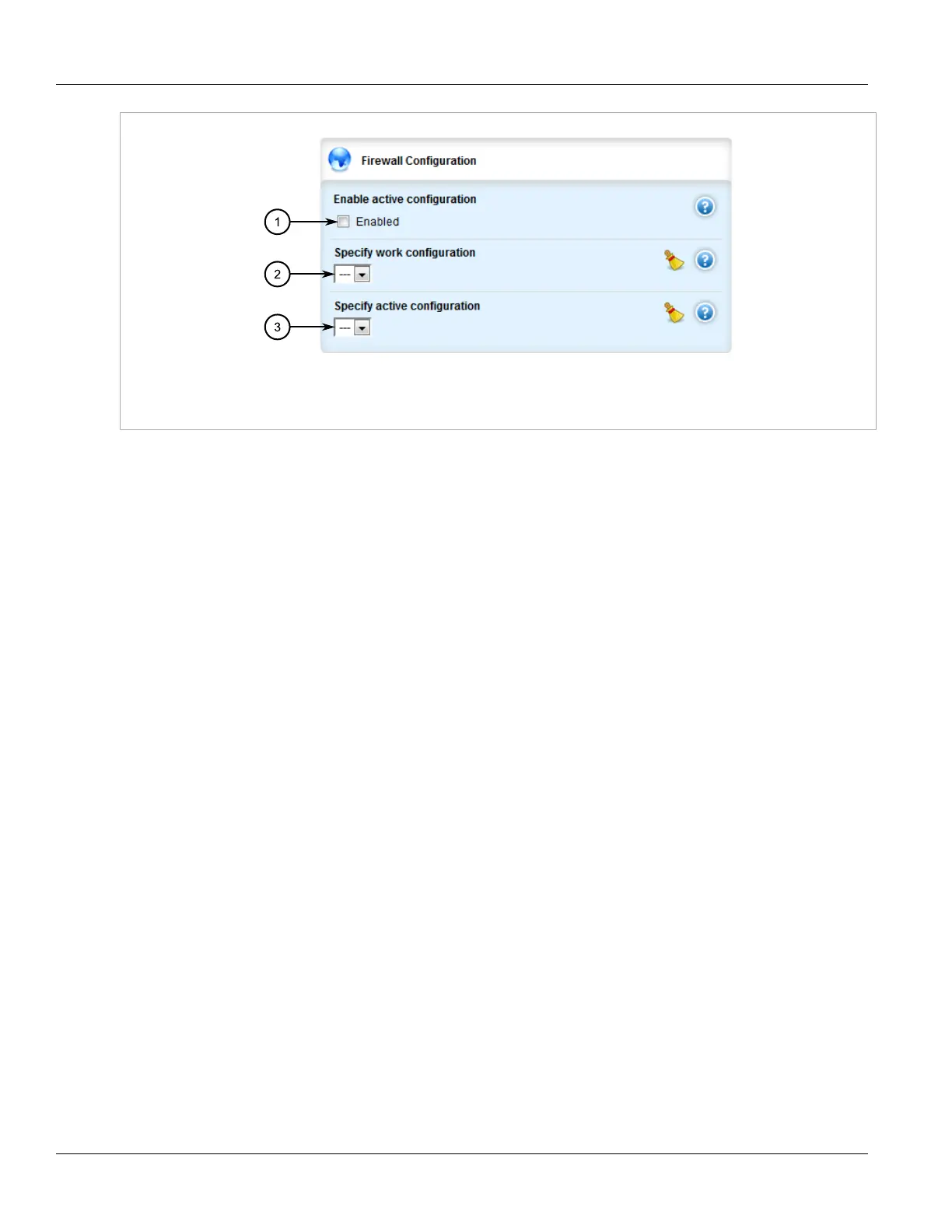

Figure 407: Firewall Configuration Form
1. Enable Active Configuration Check Box 2. Specify Work Configuration List 3. Specify Active Configuration List
3. Under Specify work configuration, select a firewall configuration from the list to work on. The firewall
configuration selected under Specify active configuration is the configuration that is actively running.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.17.6
Configuring the Firewall for a VPN
To configure the firewall for a policy-based VPN, do the following:
1. Click Tools on the toolbar followed by CLI. The CLI terminal window appears.
2. Make sure a basic firewall has been configured. For more information about configuring a firewall, refer to
Section 5.17.3, “Adding a Firewall”.
3. Change the mode to Edit Private or Edit Exclusive.
4. Navigate to security » firewall » fwconfig and select the firewall to configure.
5. Make sure zones for local, network and VPN traffic have been configured. For more information about
managing zones, refer to Section 5.17.8, “Managing Zones”.
6. Make sure a zone called Any exists and is of the type IPsec . For more information about managing zones,
refer to Section 5.17.8, “Managing Zones”.
7. Configure the interface that carries the encrypted IPsec traffic. Make sure it is associated with the Any zone,
as it will be carrying traffic for all zones. For more information about associating interfaces with zones, refer
to Section 5.17.9.3, “Associating an Interface with a Zone”.
8. Configure a host for the interface that carries the encrypted IPsec traffic. Make sure the VPN zone is
associated with the interface. If VPN tunnels to multiple remote sites are required, make sure host entry
exists for each or collapse them into a single subnet. For more information about configuring hosts, refer to
Section 5.17.10, “Managing Hosts”.
9. Configure a second host for the interface that carries the encrypted IPsec traffic. Make sure the interface is
associated with the network zone and specify a wider subnet mask, such as 0.0.0.0/0. For more information
about configuring hosts, refer to Section 5.17.10, “Managing Hosts”.
