Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
746 Adding a VLAN ID to a T1/E1 Line
9. Click Exit Transaction or continue making changes.
Section 5.35.8.4
Adding a VLAN ID to a T1/E1 Line
To add a VLAN ID (VID) to a T1/E1 line, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Make sure an HDLC-ETH connection has been configured. For more information, refer to Section 3.24.10,
“Configuring an HDLC-ETH Connection”.
3. Navigate to interface » wan » {interface} » {protocol} » channel » {number} » connection » hdlc-eth »
vlan, where {interface} is the WAN interface, {protocol} is either T1 or E1, and {number} is the channel
number.
4. Click <Add vlan>. The Key Settings form appears.

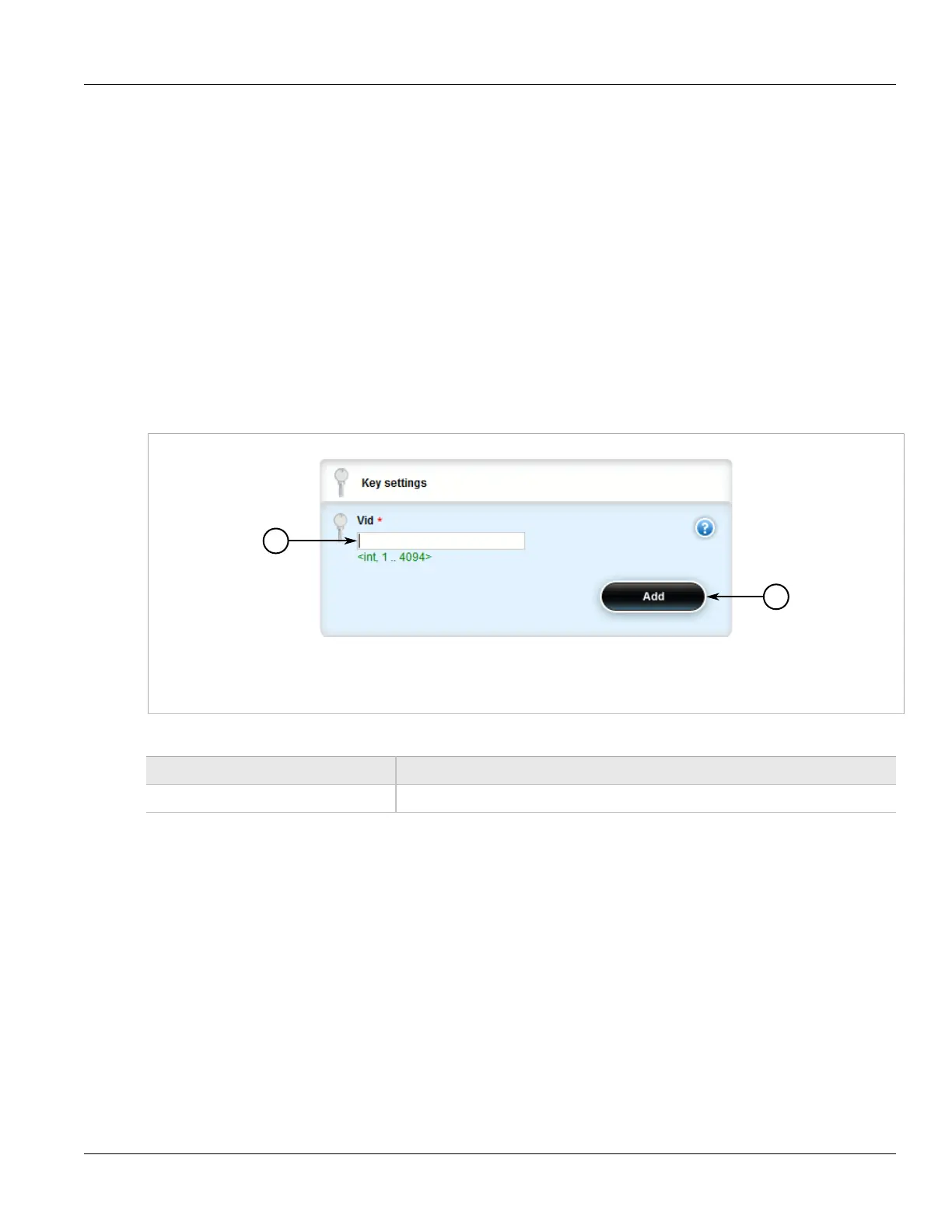

Figure 861: Key Settings Form
1. VLAN ID Box 2. Add Button
5. Configure the following parameter(s) as required:
Parameter Description
vid VLAN ID for this routable logical interface
6. Click Add to create the new VLAN ID. The Ethernet Over HDLC VLAN Settings form appears.
