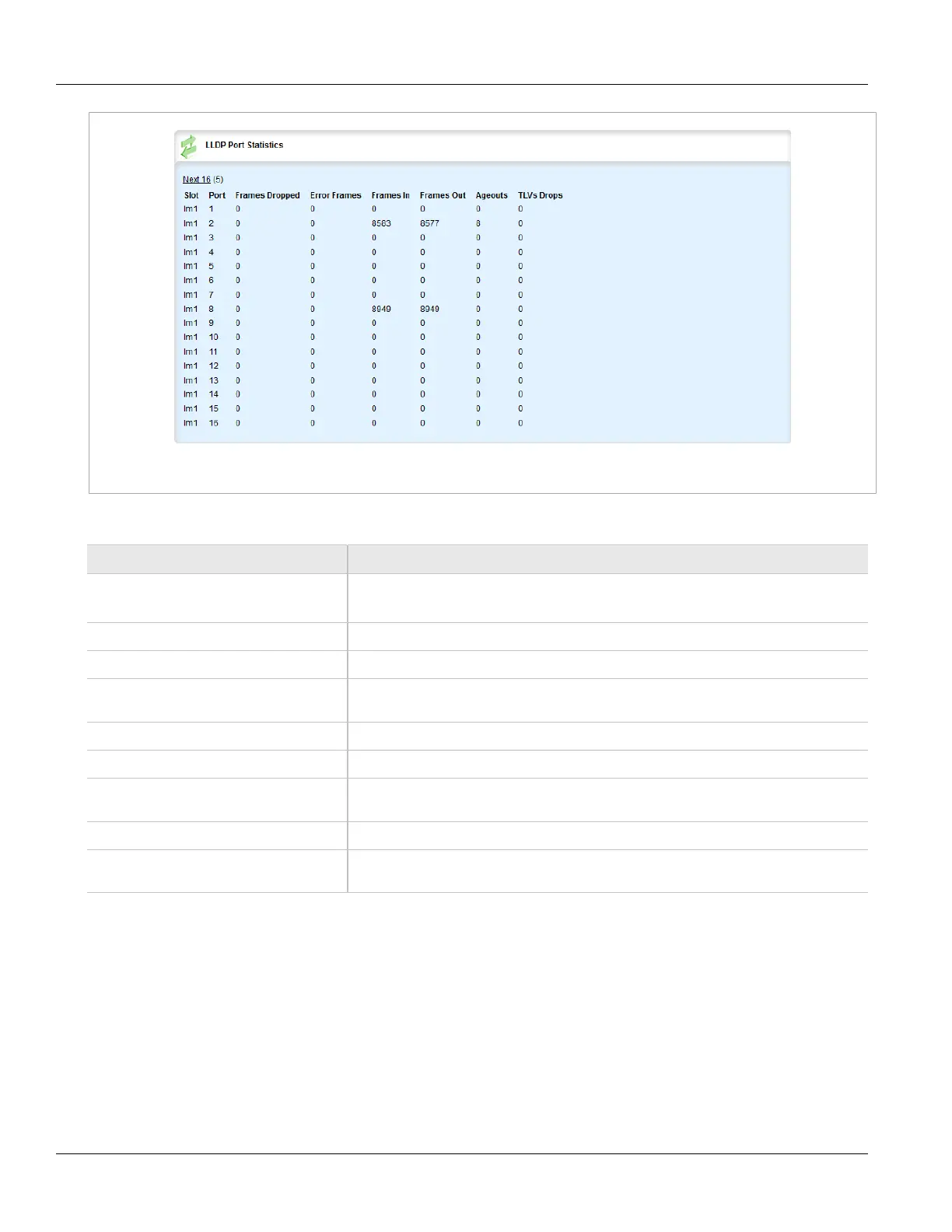

Figure 869: LLDP Port Statistics Form
This table displays the following information:
Parameter Description
slot Synopsis: pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, cm, em, trnk
The slot of the module that contains this port.
Port The port number as seen on the front plate silkscreen of the module.
Frames Dropped A counter of all Link Layer Discovery Protocol (LLDP) frames discarded.
Error Frames A counter of all Link Layer Discovery Protocol Units (LLDPUs) received with detectable
errors.
Frames In A counter of all Link Layer Discovery Protocol Units (LLDPUs) received.
Frames Out A counter of all Link Layer Discovery Protocol Units (LLDPUs) transmitted.
Ageouts A counter of the times that a neighbor's information has been deleted from the Link Layer
Discovery Protocol (LLDP) remote system MIB because the txinfoTTL timer has expired
TLVs Drops A counter of all TLVs discarded
TLVs Unknown A counter of all TLVs received on the port that are not recognized by the Link Layer
Discovery Protocol (LLDP) local agent
Section 5.37
Managing Traffic Control
Traffic control is a firewall subsystem that manages the amount of bandwidth for each network interface that
different types of traffic are permitted to use. For a traffic control configuration to work, a firewall must be
configured.
