Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
740 Deleting an HDLC-ETH VLAN

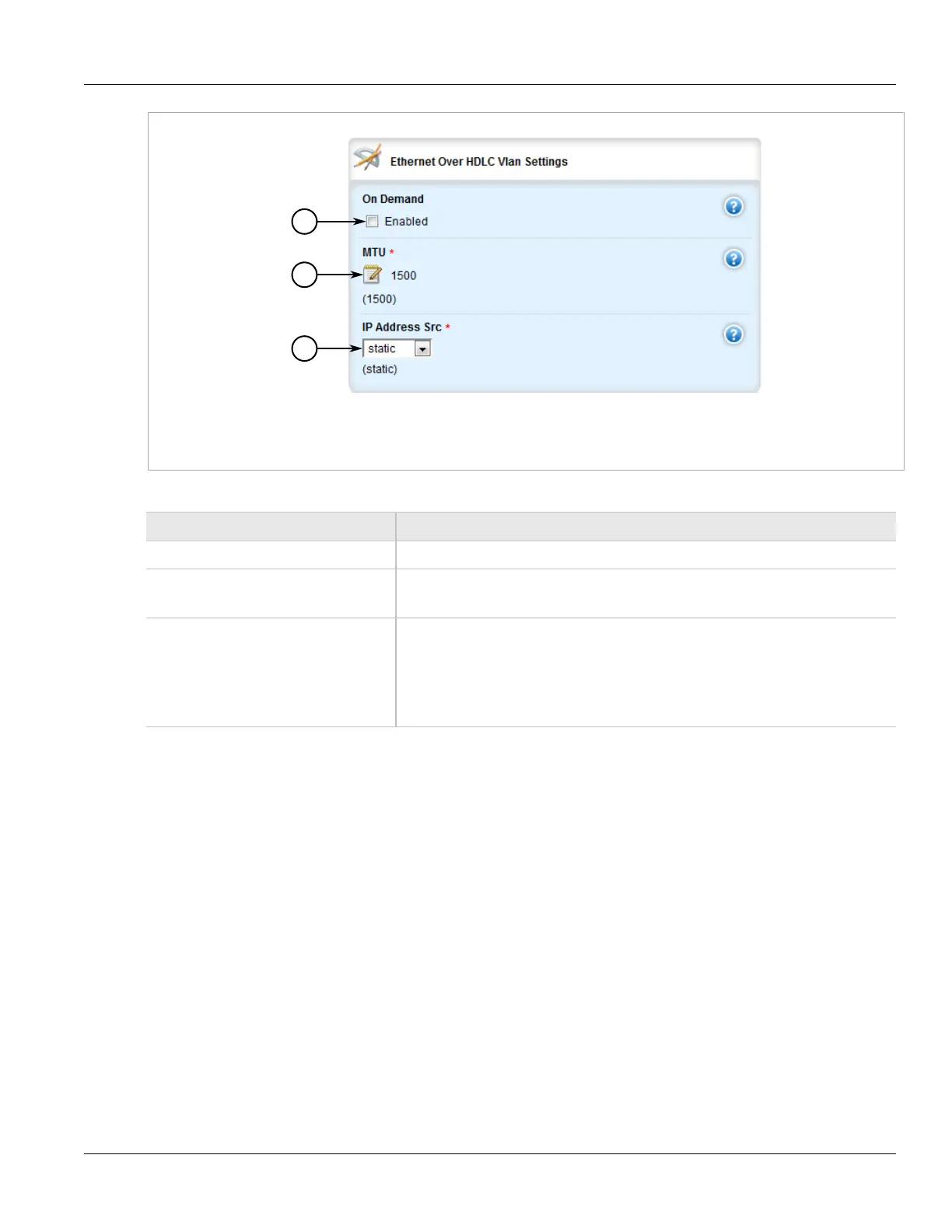

Figure 851: Ethernet Over HDLC VLAN Settings Form
1. On Demand Check Box 2. MTU Box 3. IP Address Source List
6. Configure the following parameter(s) as required:
Parameter Description
On Demand This interface is up or down on demand of link fail over.
MTU Default: 1500
Maximum transmission unit (largest packet size allowed for this interface).
IP Address Src Synopsis: static, dynamic
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP. The
DYNAMIC option is a common case of a dynamically assigned IP address. It switches
between BOOTP and DHCP until it gets the response from the relevant server. It must
be static for non-management interfaces
7. Add Quality of Service (QoS) maps to the VLAN. For more information, refer to Section 5.37.7.2, “Adding a
QoS Map”.
8. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
9. Click Exit Transaction or continue making changes.
Section 5.35.6.3
Deleting an HDLC-ETH VLAN
To delete a VLAN for an HDLC-ETH connection, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to interface » wan » {interface} » {protocol} » channel » {number} » connection » hdlc-eth »
vlan, where {interface} is the WAN interface, {protocol} is either T1 or E1, and {number} is the channel
number. The Ethernet Over HDLC VLAN Settings table appears.
