RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Adding a Static Multicast Group Entry 575
Section 5.25.5.2
Adding a Static Multicast Group Entry
To list a static multicast group from another device in the Static Multicast Summary table, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » mcast-filtering » static-mcast-table and click <Add static-mcast-table>. The Key
Settings form appears.

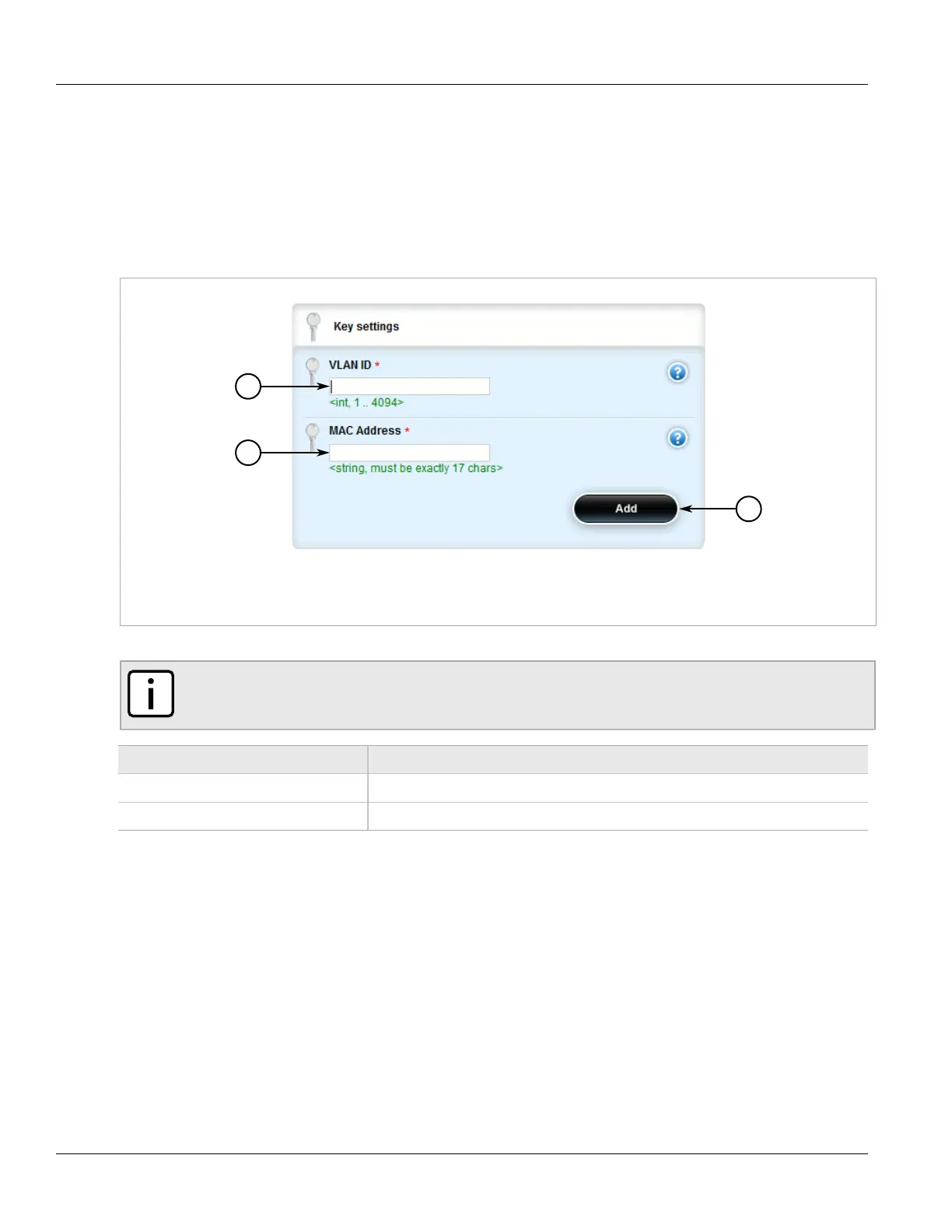

Figure 667: Key Settings Form
1. VLAN ID Box 2. MAC Address Box 3. Add Button
3. Configure the following parameter(s) as required:
NOTE
Letters in MAC addresses must be lowercase.
Parameter Description
VLAN ID The VLAN Identifier of the VLAN upon which the multicast group operates.
MAC Address The multicast group MAC address in the form 01:xx:xx:xx:xx:xx.
4. Add one or more egress ports. For more information, refer to Section 5.25.6.2, “Adding an Egress Port”.
5. Click Add to create the table entry.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
Section 5.25.5.3
Deleting a Static Multicast Group Entry
To delete a static multicast group from the Static Multicast Summary table, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
