RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Adding a Data Link 171
Section 3.24.14.2
Adding a Data Link
To add a data link for a frame relay connection, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Depending on the WAN module, navigate to either:
• For T1/E1 Lines
interface » wan » {interface} » {protocol} » channel » {number} » connection » framerelay » dlci,
where {interface} is the WAN interface, {parameter} is either T1 or E1, and {number} is the channel
number.
• For DDS
interface » wan » {interface} » dds » connection » framerelay » dlci, where {interface} is the WAN
interface, {parameter} is either T1 or E1, and {number} is the channel number.
3. Navigate to interface » wan » {interface} » {protocol} » channel » {number} » connection »
framerelay » dlci, where {interface} is the WAN interface, {parameter} is either T1 or E1, and {number} is the
channel number. The Key Settings form appears.

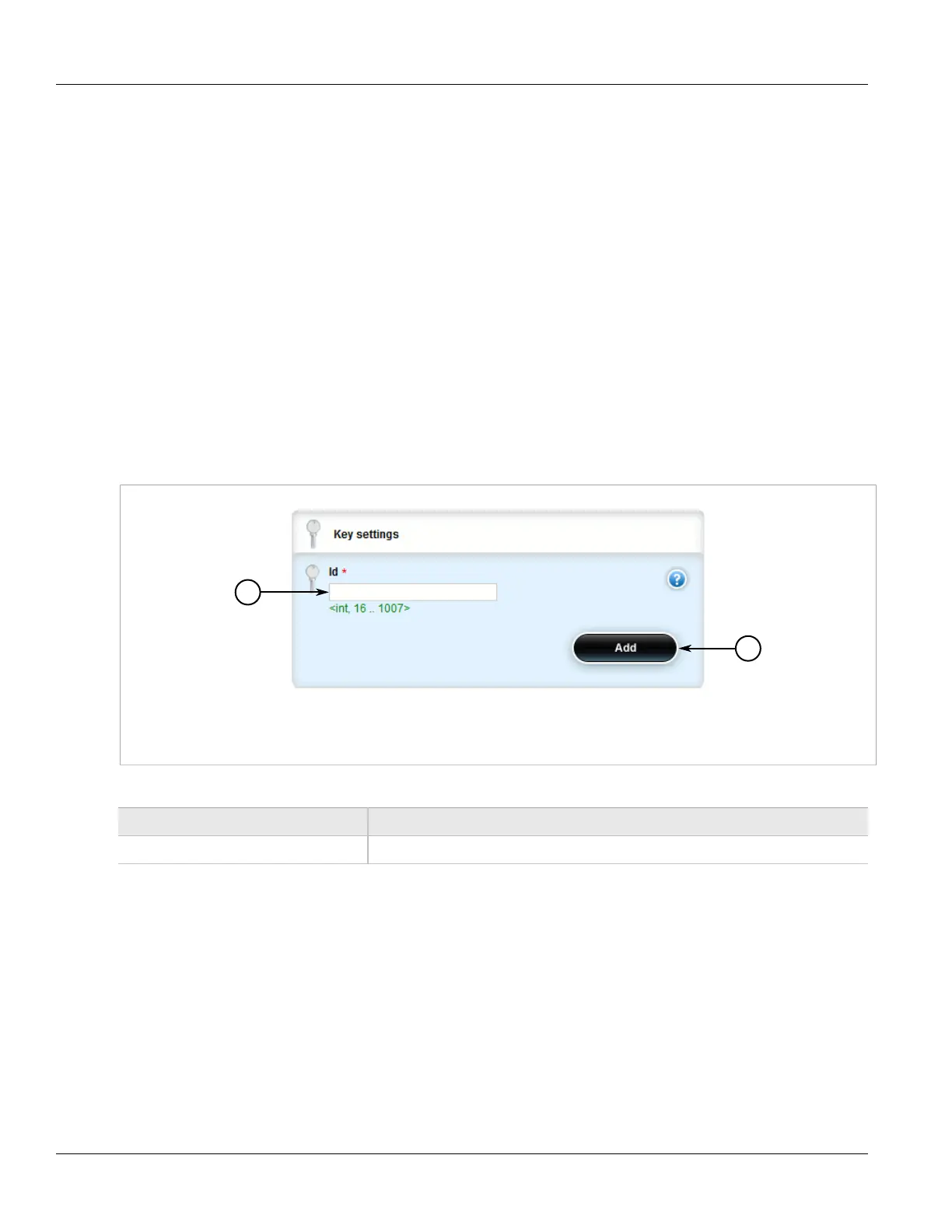

Figure 180: Key Settings Form
1. ID Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
id DLCI (data link connection identifier) Number.
5. Click Add to add the data link. The On Demand form appears.
