RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Adding a Router Port 573
Section 5.25.4.2
Adding a Router Port
To add a router port for IGMP snooping, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » mcast-filtering » igmp-snooping » router-ports and click <Add router-ports>. The
Key Settings form appears.

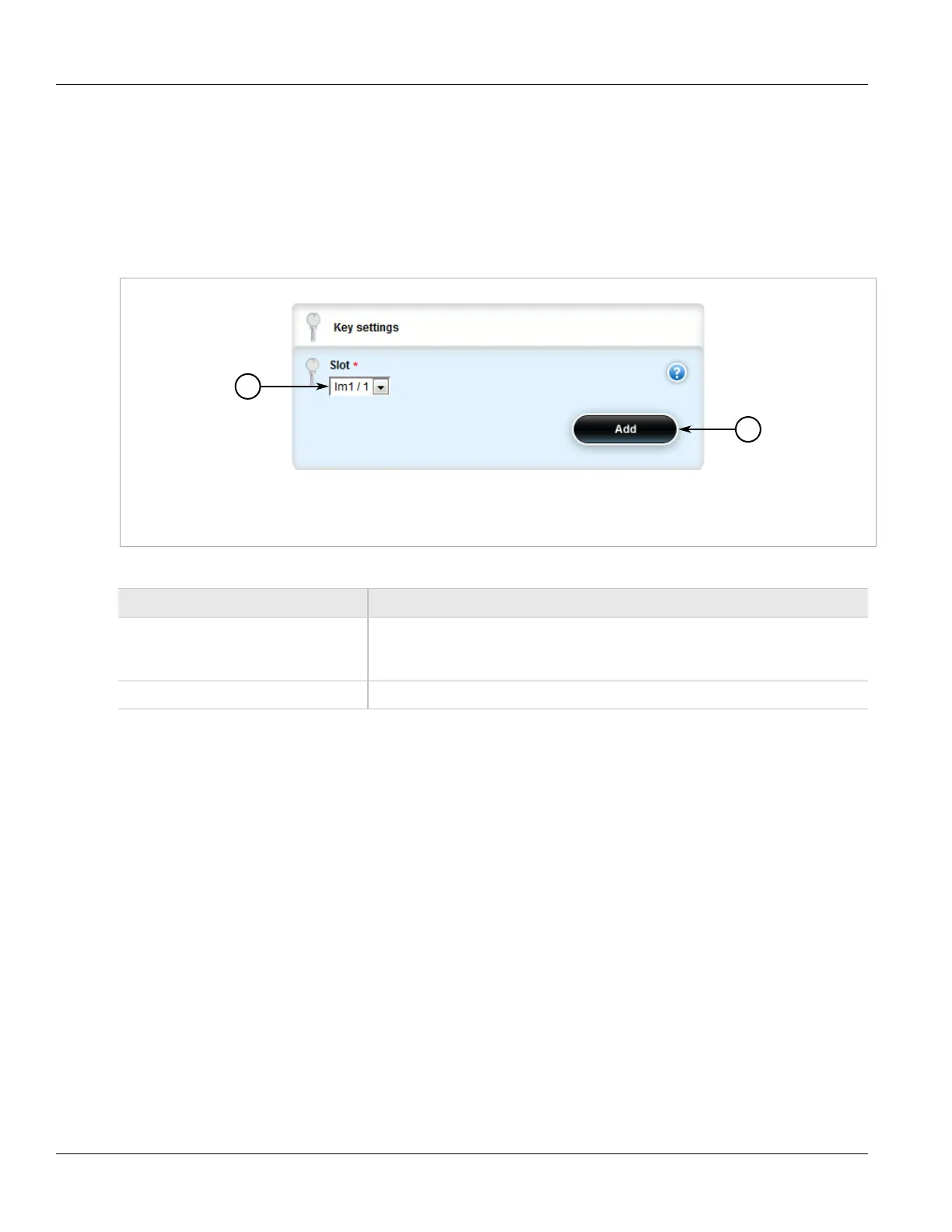

Figure 664: Key Settings Form
1. Slot Box 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
Slot Synopsis: sm, lm1, lm2, lm3, lm4, lm5, lm6
The name of the module location provided on the silkscreen across the top of the
device.
Port The selected ports on the module installed in the indicated slot.
4. Click Add to add the router port.
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
Section 5.25.4.3
Deleting a Router Port
To delete a router port for IGMP snooping, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » mcast-filtering » igmp-snooping » router-ports. The Router Ports table appears.
