Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
440 Viewing a List of Route Map Filters
Section 5.19.3.1
Viewing a List of Route Map Filters
To view a list of route map filters for either dynamic BGP, navigate to routing » dynamic » bgp » filter » route-
map. If filters have been configured, the Route Map table appears.

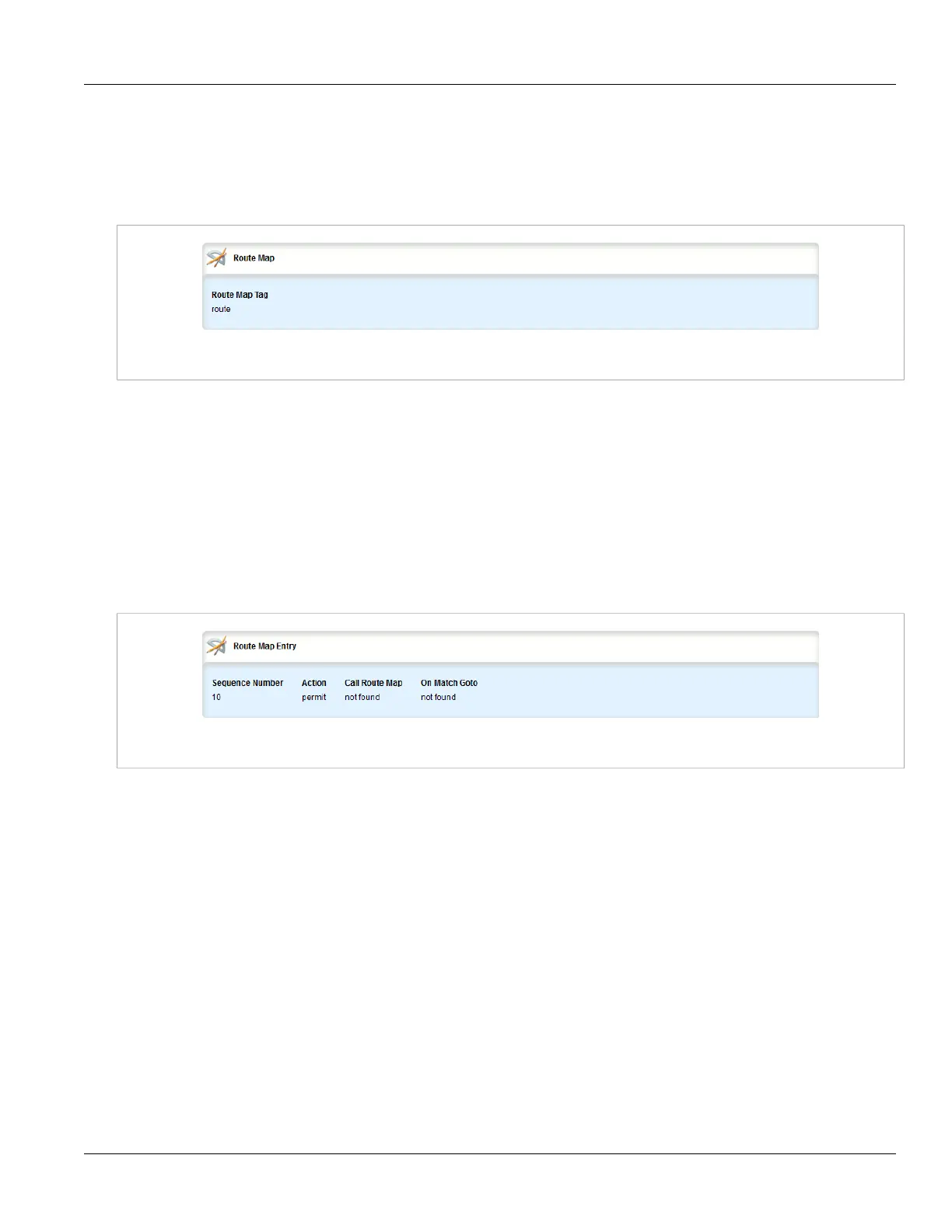

Figure 486: Route Map Table
If no filters have been configured, add filters as needed. For more information, refer to Section 5.19.6.3, “Adding
an Autonomous System Path Filter”.
Section 5.19.3.2
Viewing a List of Route Map Filter Entries
To view a list of entries for a route map filter for either BGP, navigate to routing » dynamic » bgp » filter »
route-map » {tag} » entry, where {tag} is the tag for the route map filter. If entries have been configured, the
Route Map Entry table appears.
Figure 487: Route Map Entry Table
If no filters have been configured, add filters as needed. For more information, refer to Section 5.19.6.3, “Adding
an Autonomous System Path Filter”.
Section 5.19.3.3
Adding a Route Map Filter
To add a route map filter for dynamic BGP routes, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to routing » dynamic » bgp » filter » route-map and click <Add route-map>. The Key Settings
form appears.
