RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Configuring VLANs for Switch Ethernet Ports 731
199.85.245.1/25
199.85.245.128/26
199.85.245.192/26
1
4
2
3
5

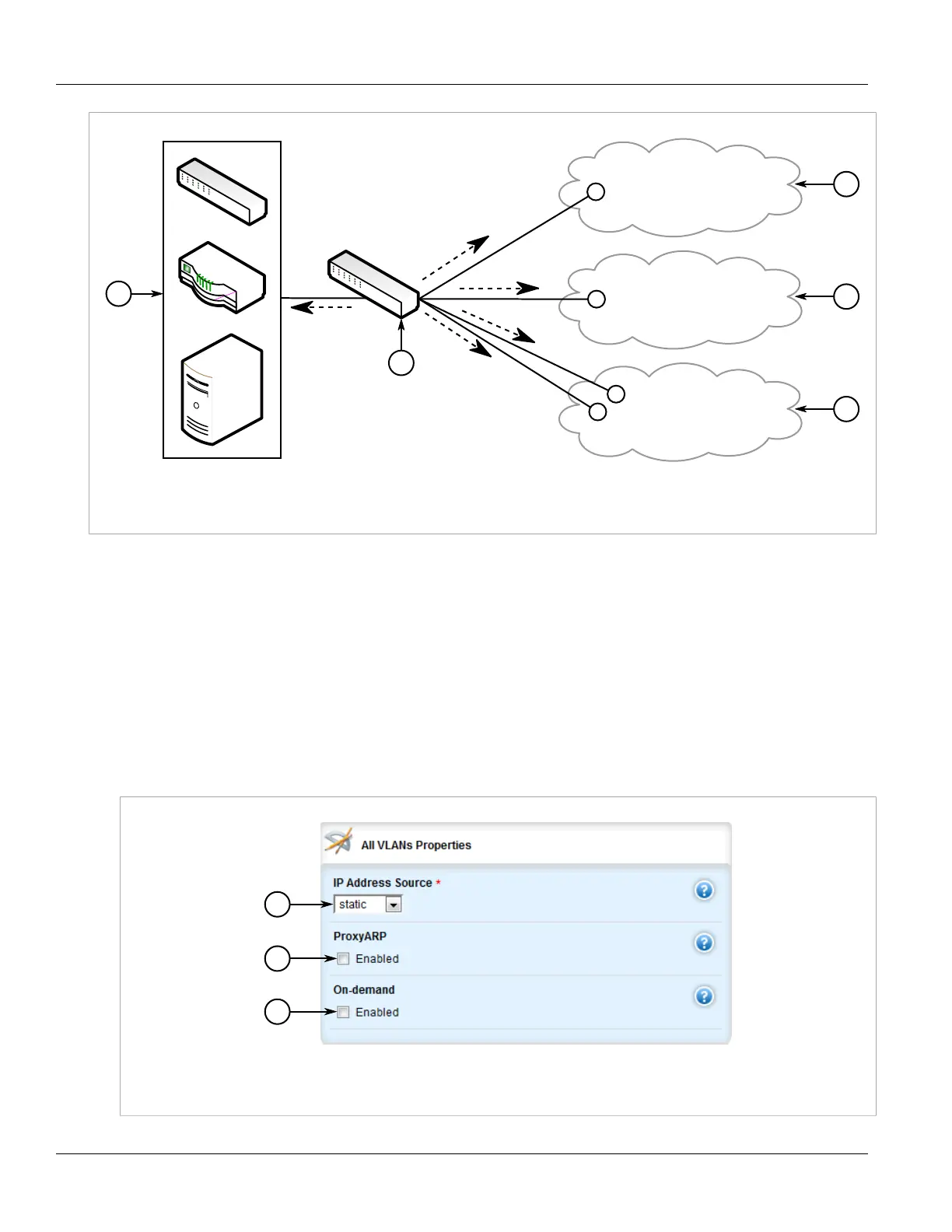

Figure 839: Inter-VLAN Communications
1. Server, Router or Layer 3 Switch 2. Switch 3. VLAN 2 4. VLAN 3 5. VLAN 4
Section 5.35.2
Configuring VLANs for Switch Ethernet Ports
When a VLAN ID is assigned to a switched Ethernet port, the VLAN appears in the All-VLANs Table where it can
be further configured.
To configure a VLAN for a switched Ethernet port, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to switch » vlans » all-vlans » {id}, where {id} is the ID of the VLAN. The All VLANs Properties
form appears.
Figure 840: All VLANs Properties Form
1. IP Address Source List 2. ProxyARP Check Box 3. On-Demand Check Box
