The following sections describe how to configure and manage zones for a firewall:
• Section 5.17.8.1, “Viewing a List of Zones”
• Section 5.17.8.2, “Adding a Zone”
• Section 5.17.8.3, “Deleting a Zone”
Section 5.17.8.1
Viewing a List of Zones
To view a list of zones, navigate to security » firewall » fwconfig » {firewall} » fwzone, where {firewall} is the
name of the firewall. If zones have been configured, the Firewall Zone table appears.

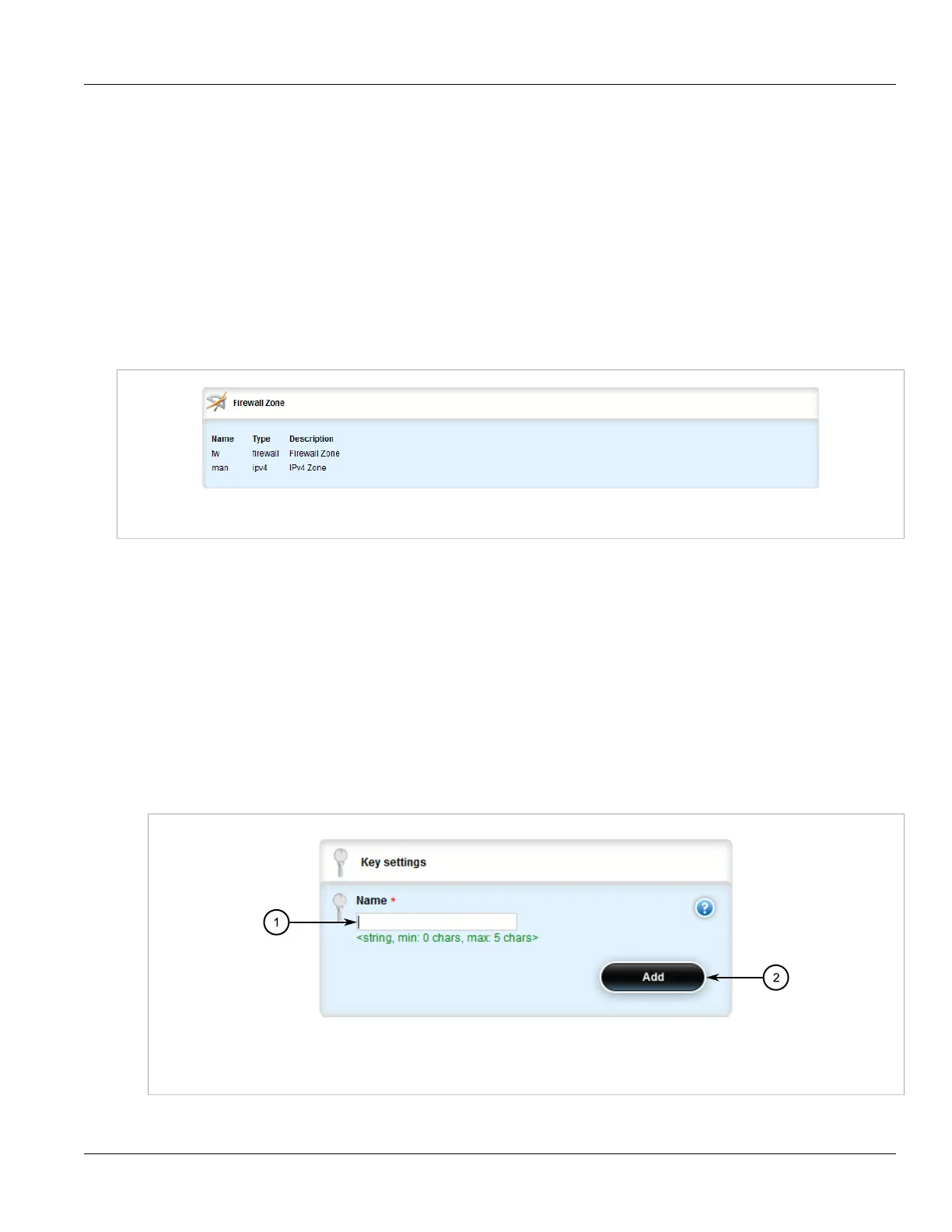

Figure 408: Firewall Zone Table
If no zones have been configured, add zones as needed. For more information, refer to Section 5.17.8.2, “Adding
a Zone”.
Section 5.17.8.2
Adding a Zone
To add a new zone for a firewall, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to security » firewall » fwconfig » {firewall} » fwzone, where {firewall} is the name of the firewall.
3. Click <Add fwzone> in the menu. The Key Settings form appears.
Figure 409: Key Settings Form
1. Name Box 2. Add Button
4. Configure the following parameter(s) as required:
