RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Managing Static Cross-Connects 809

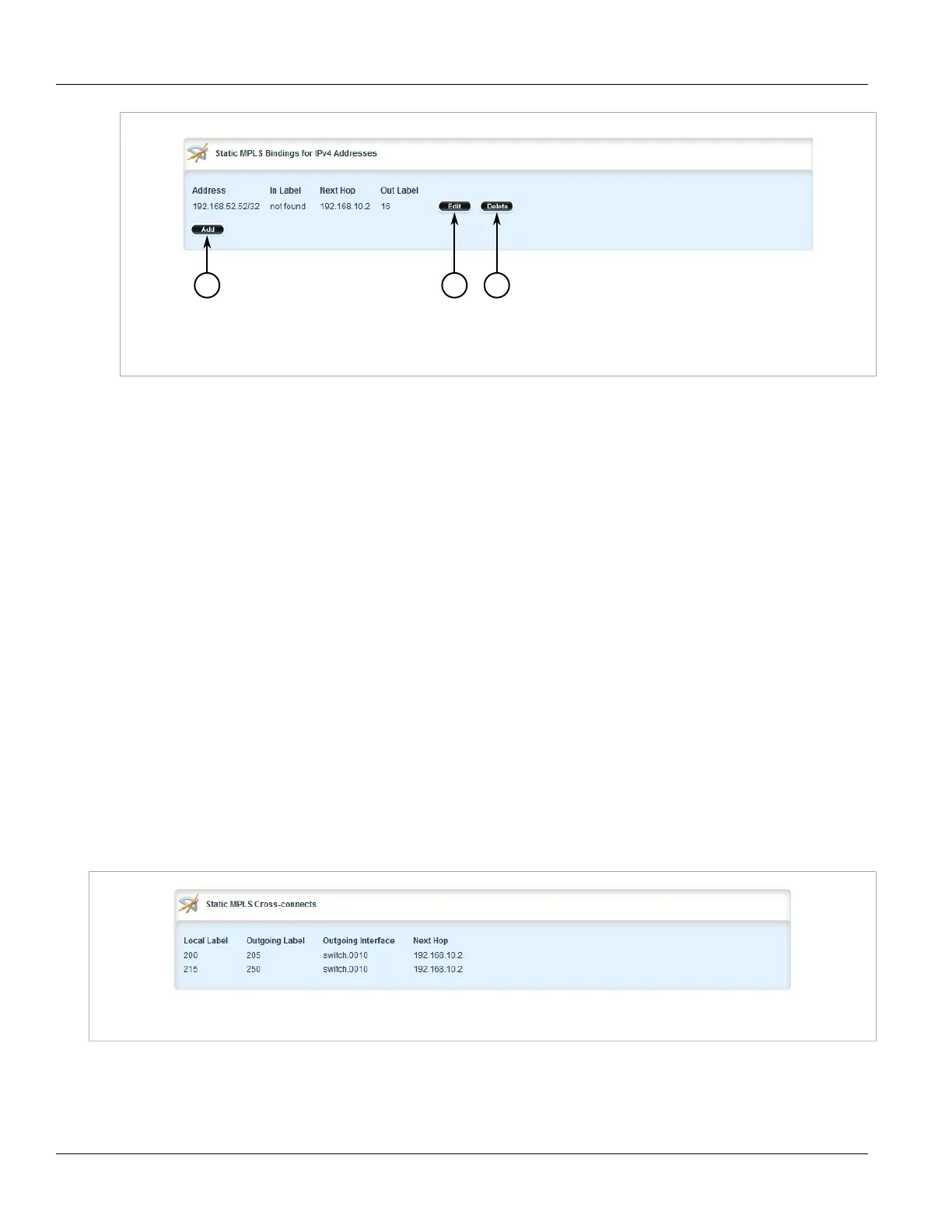

Figure 933: Static MPLS Bindings for IPv4 Addresses Table (Example)
1. Add Button 2. Edit Button 3. Delete Button
3. Click Delete next to the chosen static label.
4. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
5. Click Exit Transaction or continue making changes.
Section 5.39.6
Managing Static Cross-Connects
The following sections describe how to configure and manage static cross-connects for MPLS:
• Section 5.39.6.1, “Viewing the Status of Static Cross-Connects”
• Section 5.39.6.2, “Viewing a List of Static Cross-Connects”
• Section 5.39.6.3, “Adding a Static Cross-Connect”
• Section 5.39.6.4, “Deleting a Static Cross-Connect”
Section 5.39.6.1
Viewing the Status of Static Cross-Connects
To view the status of all configured static cross-connects, navigate to mpls » status » static-crossconnect. If
static cross-connects have been configured, the Static MPLS Cross-connects table appears.
Figure 934: Static MPLS Cross-connects Table
This table provides the following information:
