RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Configuring the Layer 2 Tunnel Daemon 647
Section 5.29.4
Configuring the Layer 2 Tunnel Daemon
To configure the Layer 2 tunnel daemon, do the following:
IMPORTANT!
Make sure there are no traffic loops possible between the substation LAN and other LANs that could
forward GOOSE frames to the LAN. Do not employ a GOOSE gateway between substations that are
already connected. The GOOSE daemon issues packets to the network with a built in Time-To-Live
(TTL) count that is decremented with each transmission. This prevents an infinite loop of packets, but
will not prevent excessive network utilization.
1. Change the mode to Edit Private or Edit Exclusive.
2. Navigate to tunnel » l2tunneld. The L2 Tunnel Daemon form appears.

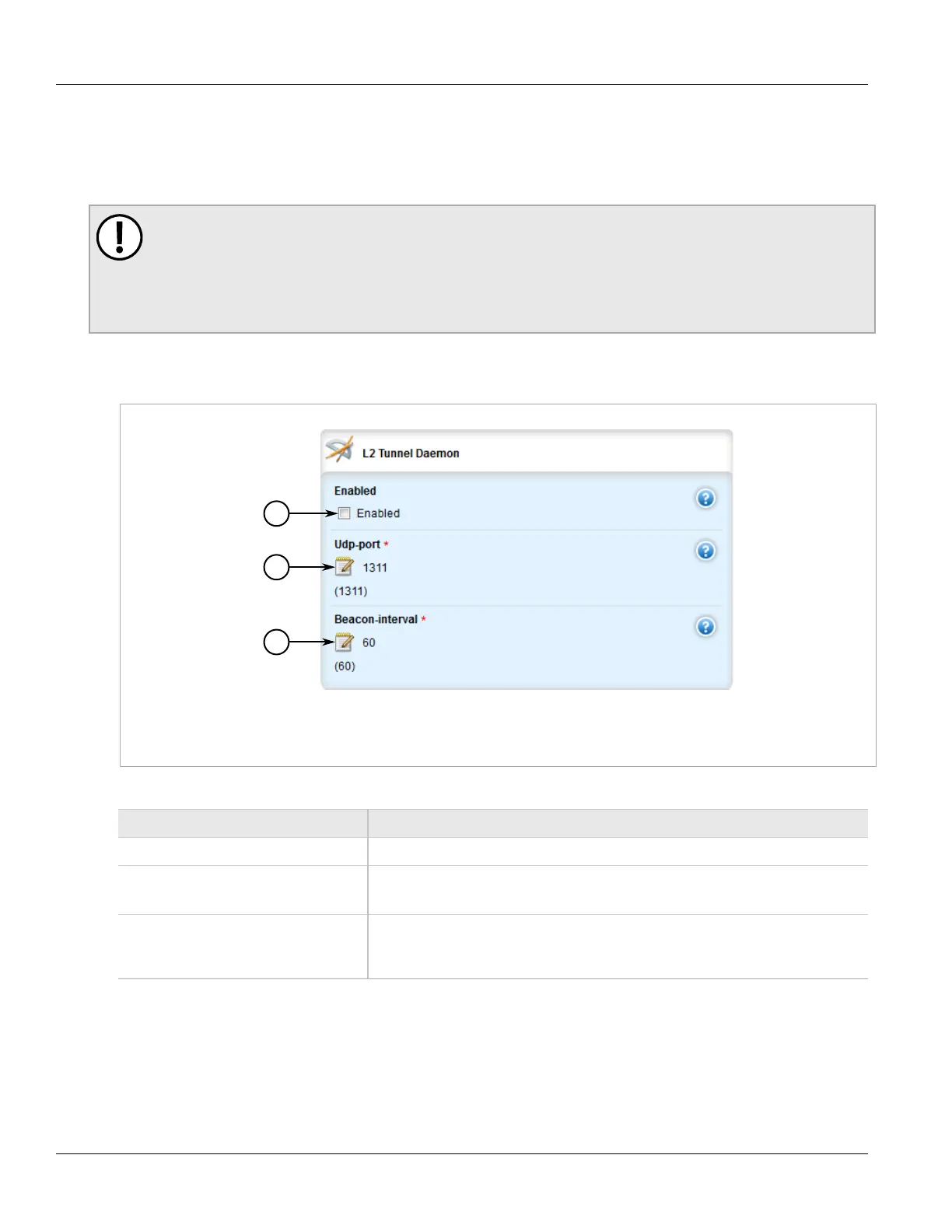

Figure 759: L2 Tunnel Daemon Form
1. Enabled Check Box 2. UDP Port Box 3. Beacon Interval Box
3. Configure the following parameter(s) as required:
Parameter Description
enabled Enables the Layer 2 protocols server.
udp-port Default: 1311
The UDP port to communicate with the other daemon.
beacon-interval Synopsis: off
Default: 60
The Round Trip Time (RTT) of the sent message
4. Add GOOSE or generic tunnels as required. For more information, refer to Section 5.29.5.3, “Adding a
GOOSE Tunnel” or Section 5.29.7.3, “Adding a Generic Tunnel”.
5. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
6. Click Exit Transaction or continue making changes.
