Chapter 3
Device Management
RUGGEDCOM ROX II
User Guide
168 Configuring a Frame Relay Connection
Section 3.24.13
Configuring a Frame Relay Connection
To configure a frame relay connection for a T1 or E1 line, do the following:
1. Change the mode to Edit Private or Edit Exclusive.
2. Depending on the WAN module, navigate to either:
• For T1/E1 Lines
interface » wan » {interface} » {protocol} » channel » {number} » connection, where {interface} is the
WAN interface, {parameter} is either T1 or E1, and {number} is the channel number.
• For DDS
interface » wan » {interface} » dds » connection, where {interface} is the WAN interface, {parameter} is
either T1 or E1, and {number} is the channel number.
3. Click the + symbol in the menu next to framerelay. The Frame Relay Parameters form appears.

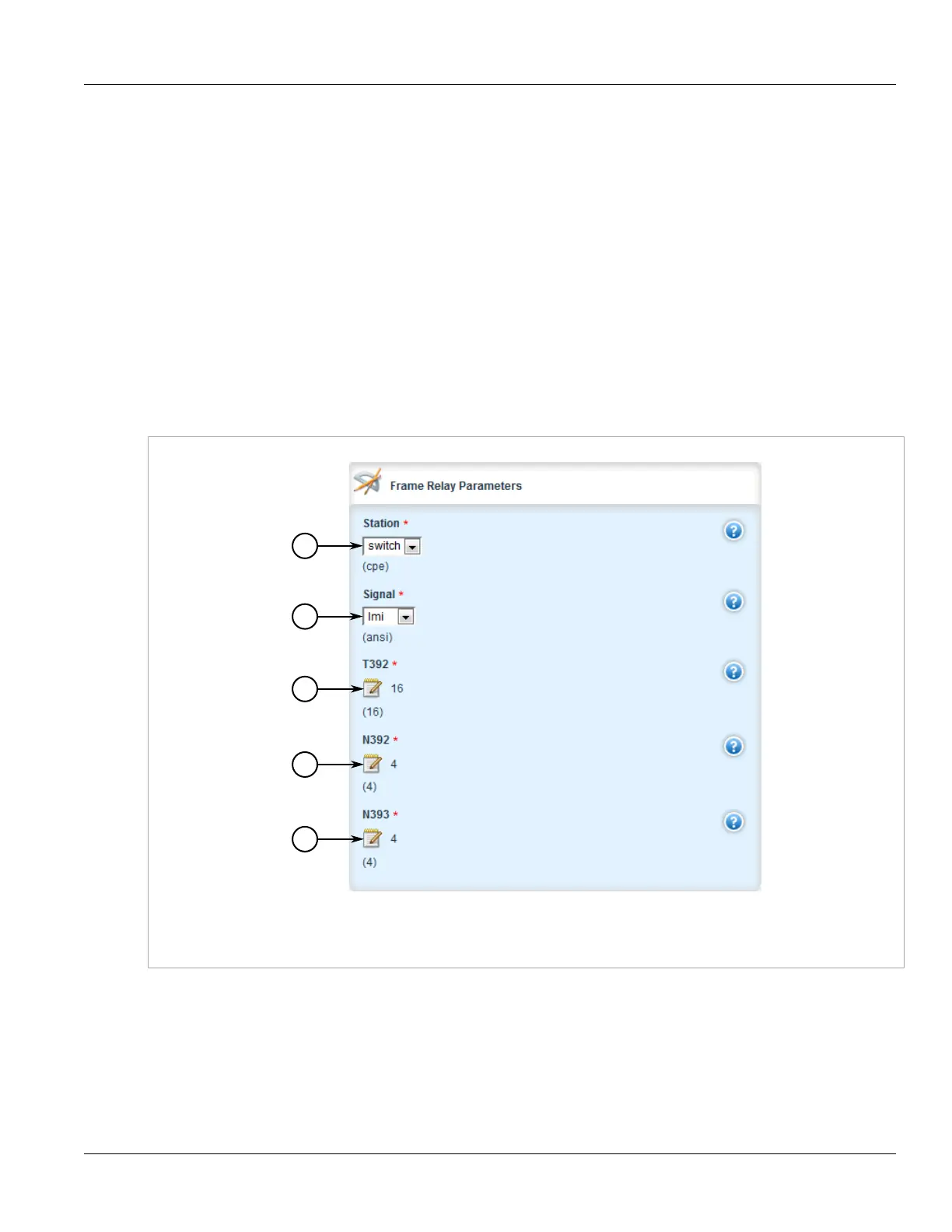

Figure 177: Frame Relay Parameters Form – Switch Selected
1. Station List 2. Signal List 3. T391 Box 4. N391 Box 5. N392 Box 6. N393 Box
