RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Adding a VLAN ID to a Routable Ethernet Port or Virtual
Switch 745

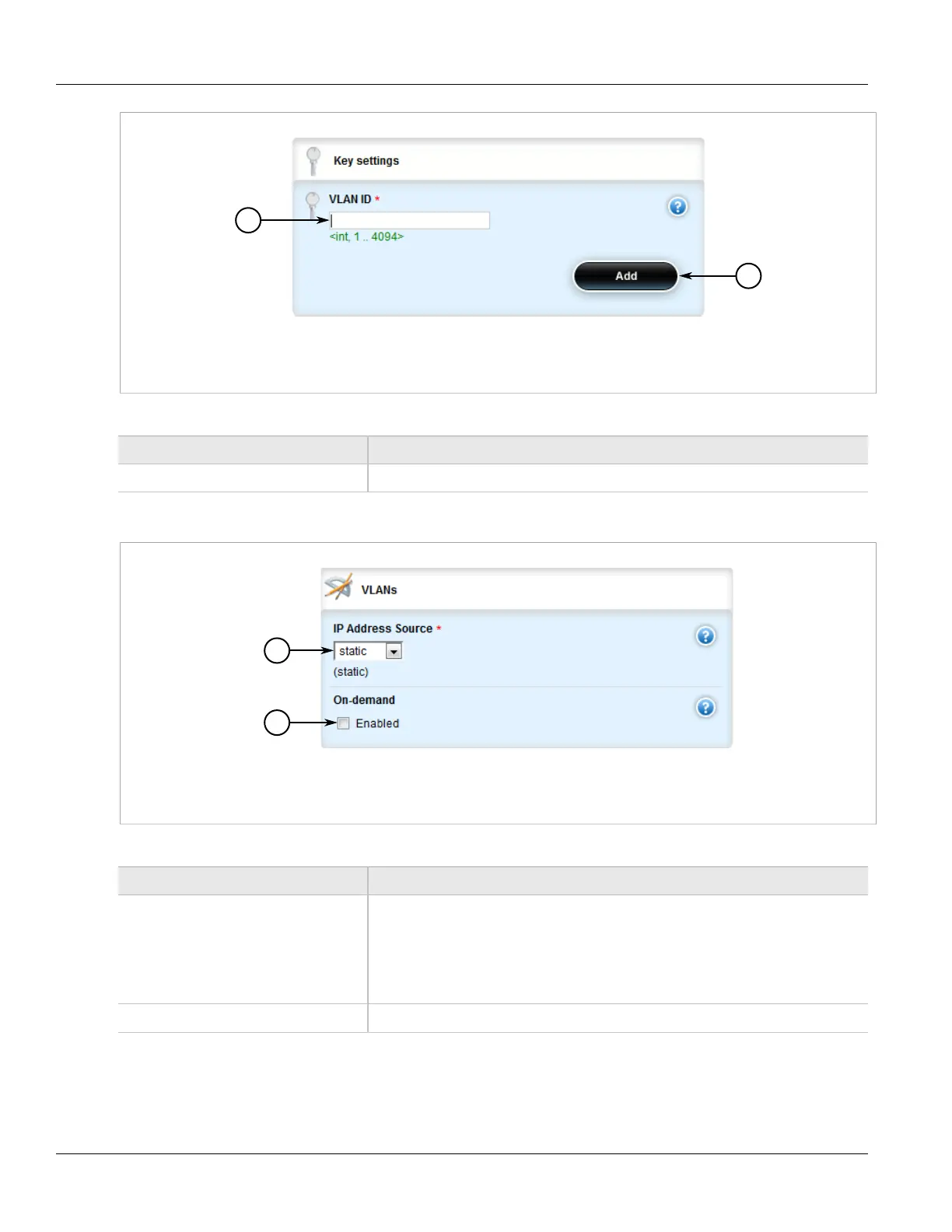

Figure 859: Key Settings Form
1. VLAN ID Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
VLAN ID The VLAN ID for this routable logical interface.
5. Click Add to create the new VLAN ID. The VLANs form appears.
Figure 860: VLANs Form
1. IP Address Source Box 2. On-Demand Check Box
6. Configure the following parameter(s) as required:
Parameter Description
IP Address Source Synopsis: static, dynamic
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP. The
DYNAMIC option is a common case of a dynamically assigned IP address. It switches
between BOOTP and DHCP until it gets the response from the relevant server. It must
be static for non-management interfaces.
on-demand This interface is up or down on the demand of the link failover.
7. Add a QoS map for the VLAN. For more information, refer to Section 5.37.7.2, “Adding a QoS Map”.
8. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
