RUGGEDCOM ROX II
User Guide
Chapter 3
Device Management
Adding a Channel 163

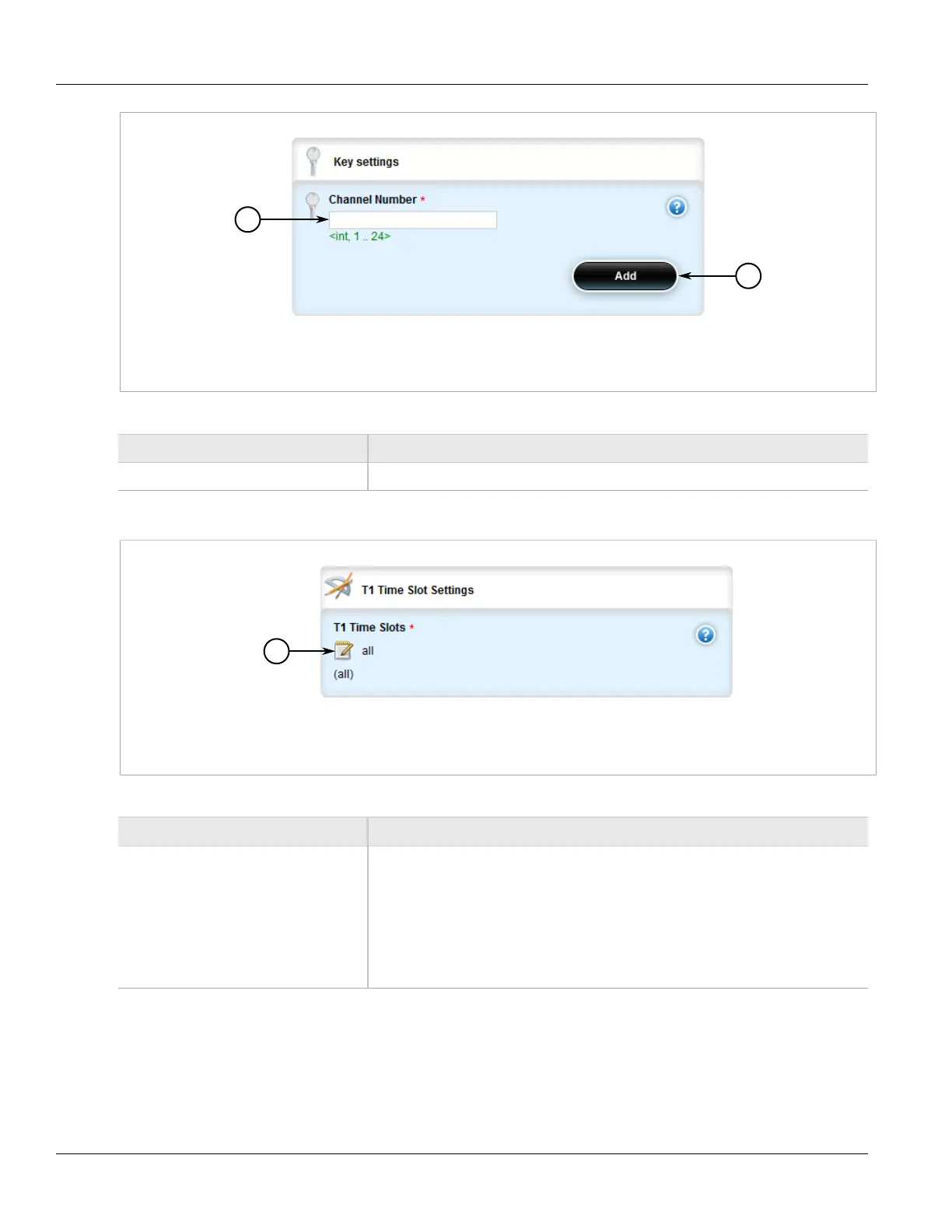

Figure 171: Key Settings Form
1. Channel Number Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
Channel Number Channel Number.
5. Click Add to create the new channel. The T1/E1 Time Slot Settings form appears.
Figure 172: T1 Time Slot Settings Form
1. T1 Time Slots Box
6. Configure the following parameter(s) as required:
Parameter Description
T1 Time Slots Default: all
Time slots for this channel. Format: the string 'all', or a comma-separated list of numbers
in the range of 1 to 24.
To specify a range of numbers, separate the start and end of the range with '..' or with a
hyphen '-'
Example 1: 1,2,3 and 1..3 both represent time slots 1 through 3.
Example 2: 1,2,5..10,11 represents time slots 1, 2, 5, 6, 7, 8, 9, 10, and 11.
7. If necessary, configure VLANs for an HDLC-ETH connection. For more information, refer to Section 5.35.6.2,
“Adding an HDLC-ETH VLAN”.
8. If necessary, configure an MLPPP connection. For more information, refer to Section 3.24.11, “Configuring a
Multi Link PPP Connection”.
