442 Adding a Route Map Filter Entry

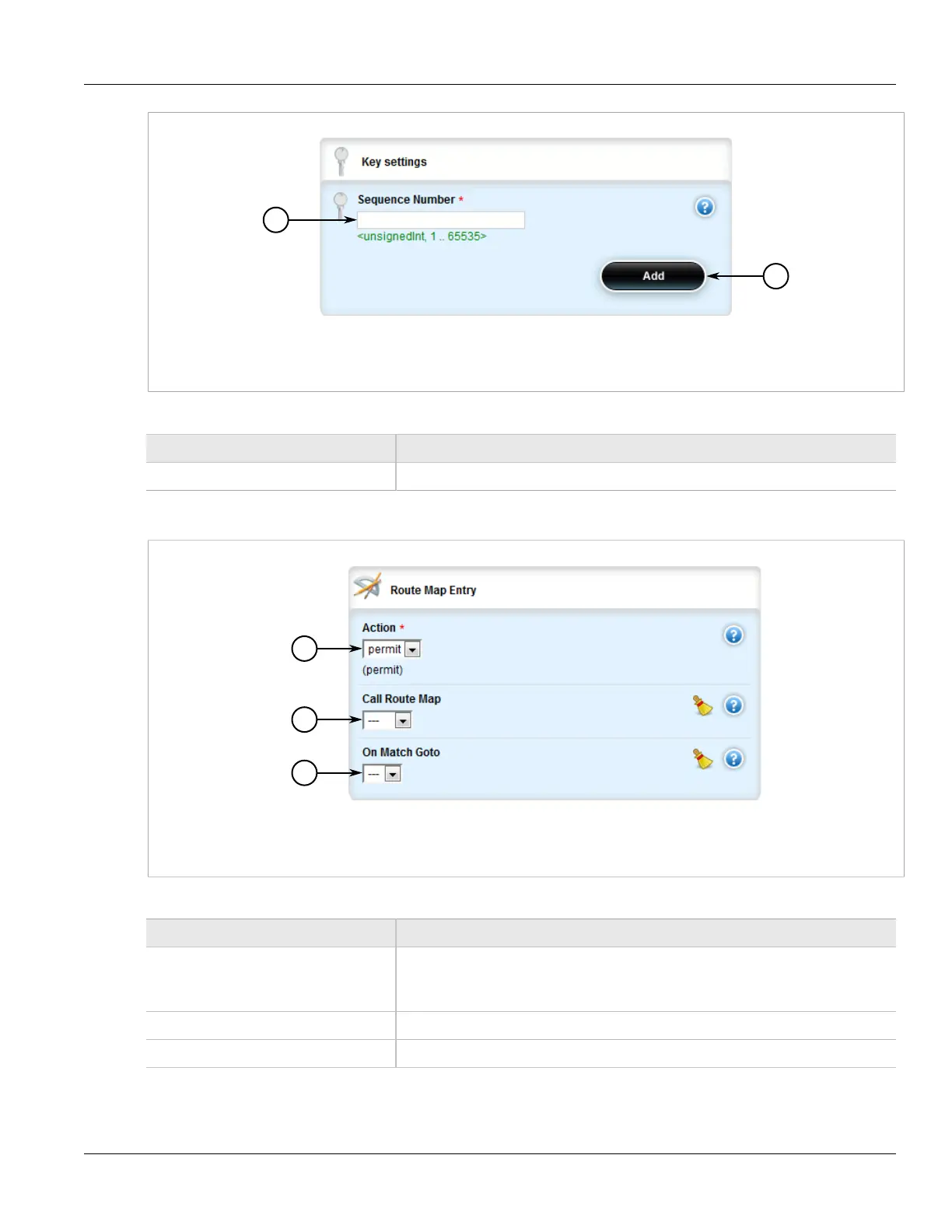

Figure 489: Key Settings Form
1. Sequence Number Box 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
Sequence Number The sequence number of the route-map entry.
5. Click Add to create the new entry. The Route Map Entry form appears.
Figure 490: Route Map Entry Form
1. Action List 2. Call Route Map List 3. On Match Goto List
6. Configure the following parameter(s) as required:
Parameter Description
Action Synopsis: deny, permit
Default: permit
Action.
Call Route Map Jump to another route-map after match+set.
On Match Goto Go to this entry on match.
