Chapter 5
Setup and Configuration
RUGGEDCOM ROX II
User Guide
562 Viewing the Status of PIM-SM

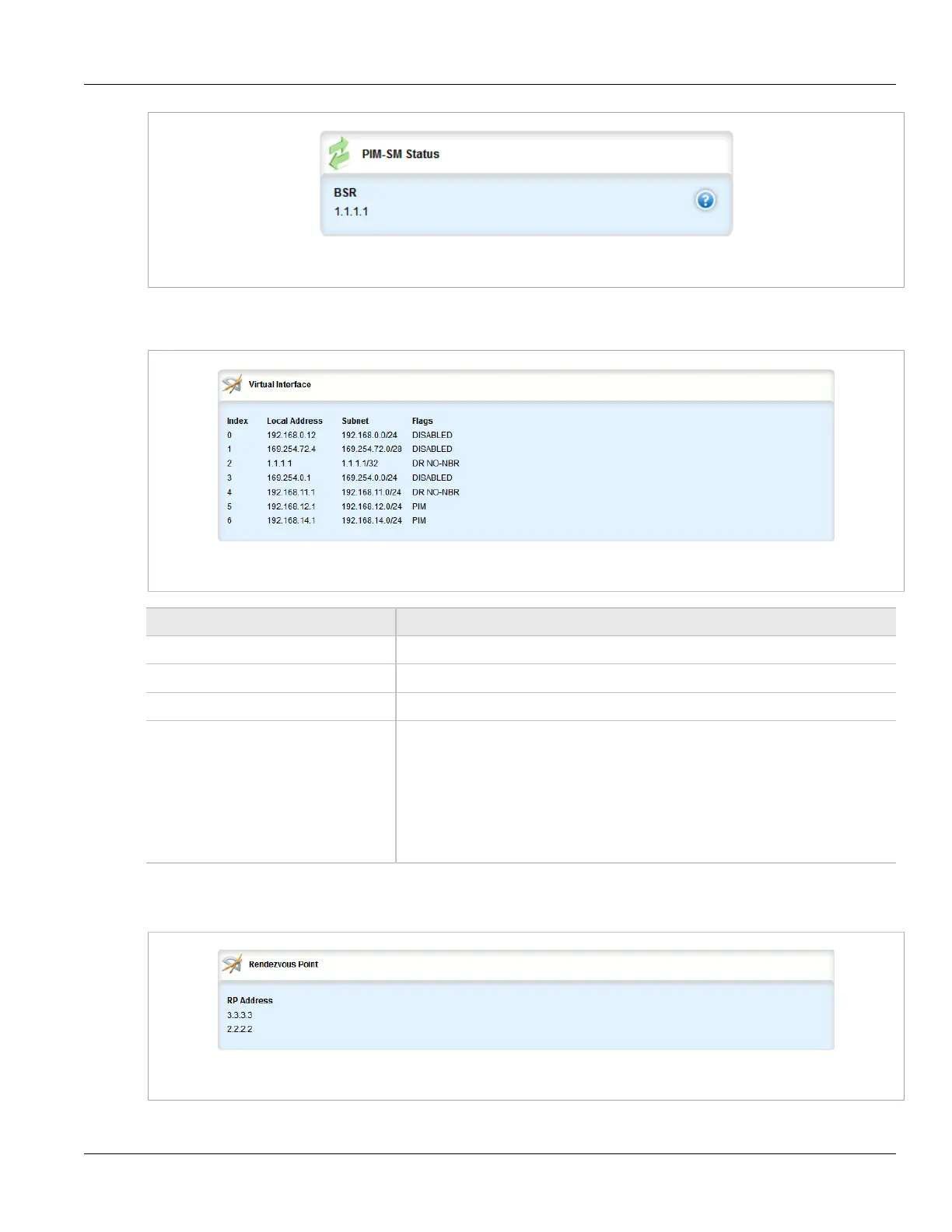

Figure 654: PIM-SM Status Form
2. Navigate to routing » status » pim-sm » vinterface. The Virtual Interface table appears displaying the
status of the configured devices.
Figure 655: Virtual Interface Table
Parameter Description
Index Virtual interface index.
Local Address Local address.
Subnet Subnet.
Flags Flags indicates virtual interface information.
• DISABLED: The virtual interface is administratively disabled for PIM-SM.
• DOWN: This virtual interface is down.
• DR: Designated router.
• NO-NBR: No neighbor on this virtual interface.
• PIM: PIM neighbor.
• DVMRP: DVMRP neighbor.
3. Navigate to routing » status » pim-sm » rp. The Rendezvous Point table appears displaying the RP
server addresses.
Figure 656: Rendezvous Point Table
