692 Adding a Static MAC Address
NOTE
Letters in MAC addresses must be lowercase.
Parameter Description
MAC Address A unicast MAC address that is to be statically configured. It can have up to 6 '*' wildcard
characters continuously applied from the right.
VLAN ID The VLAN identifier of the VLAN upon which the MAC address operates.
4. Click Add to add the static MAC address. The Static MAC Address Parameters form appears.

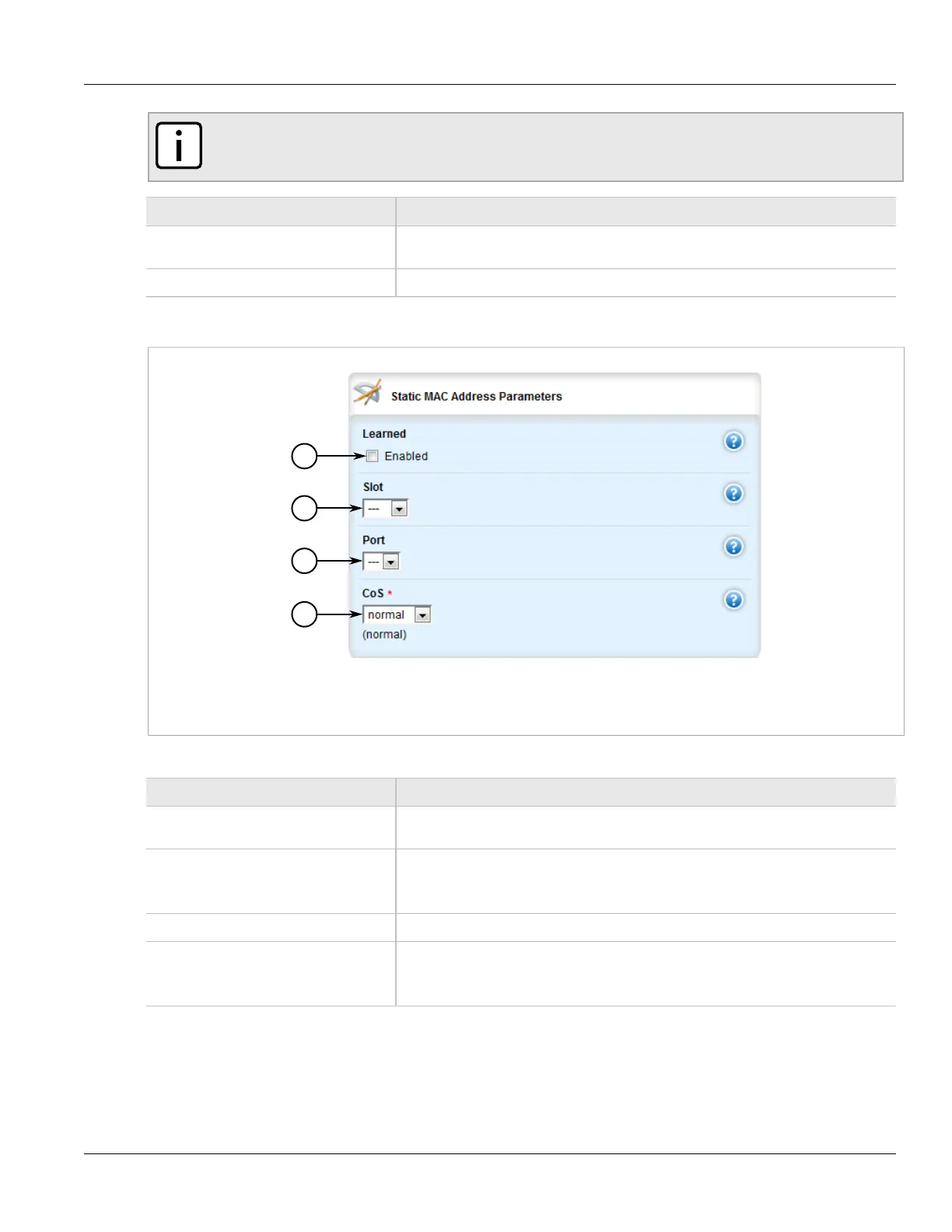

Figure 814: Static MAC Address Parameters Form
1. Learned Check Box 2. Slot List 3. Port List 4. CoS List
5. Configure the following parameter(s) as required:
Parameter Description
learned If set, the system will auto-learn the port upon which the device with this address is
located.
Slot Synopsis: sm, lm1, lm2, lm3, lm4, lm5, lm6
The name of the module location provided on the silkscreen across the top of the
device.
Port The selected ports on the module installed in the indicated slot.
CoS Synopsis: N/A, normal, medium, high, crit
Default: normal
The priority of traffic for a specified address.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
