User Guide
772 Adding a Traffic Control Device
4. Click Add to create the new traffic control device. The Advanced Traffic Control Interfaces form appears.

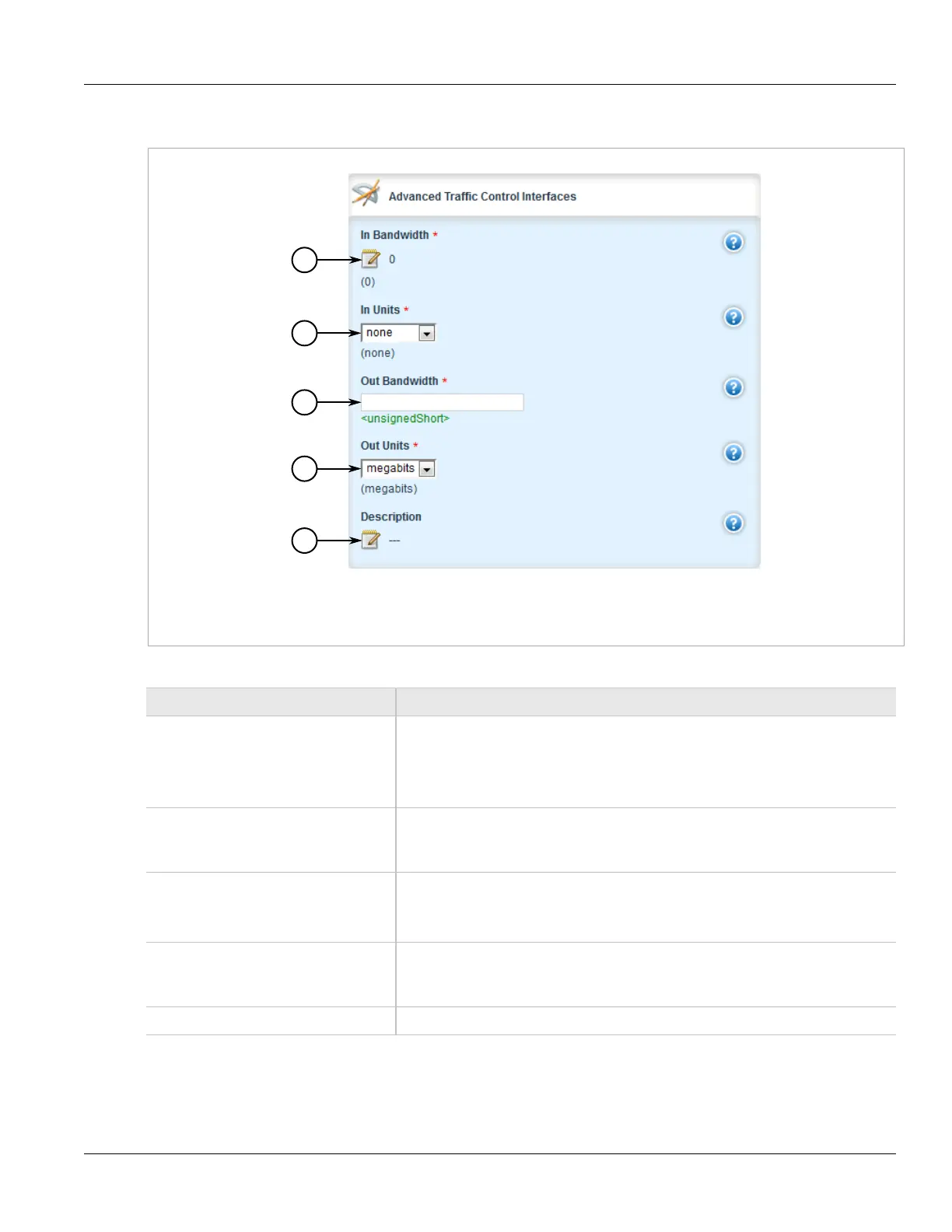

Figure 886: Advanced Traffic Control Interfaces Form
1. In Band Width Box 2. In Unit List 3. Out Bandwidth Box 4. Out Unit List 5. Description Box
5. Configure the following parameter(s) as required:
Parameter Description
In Bandwidth Default: 0
Incoming bandwidth. Default: 0 = ignore ingress.
Defines the maximum traffic allowed for this interface in total.
If the rate is exceeded, the packets are dropped.
In Units Synopsis: none, kilobits, megabits
Default: none
Unit for inbandwidth, per second.
Out Bandwidth Maximum outgoing bandwidth... This is the maximum speed that can be
handled. Additional packets will be dropped. This is the
bandwidth that can be refrred-to as 'full' when defining classes.
Out Units Synopsis: kilobits, megabits
Default: megabits
Unit for outgoing bandwidth, per second.
description A description for this configuration item.
6. Click Commit to save the changes or click Revert All to abort. A confirmation dialog box appears. Click OK
to proceed.
7. Click Exit Transaction or continue making changes.
