RUGGEDCOM ROX II
User Guide
Chapter 5
Setup and Configuration
Viewing Statistics for Routable Interfaces 791

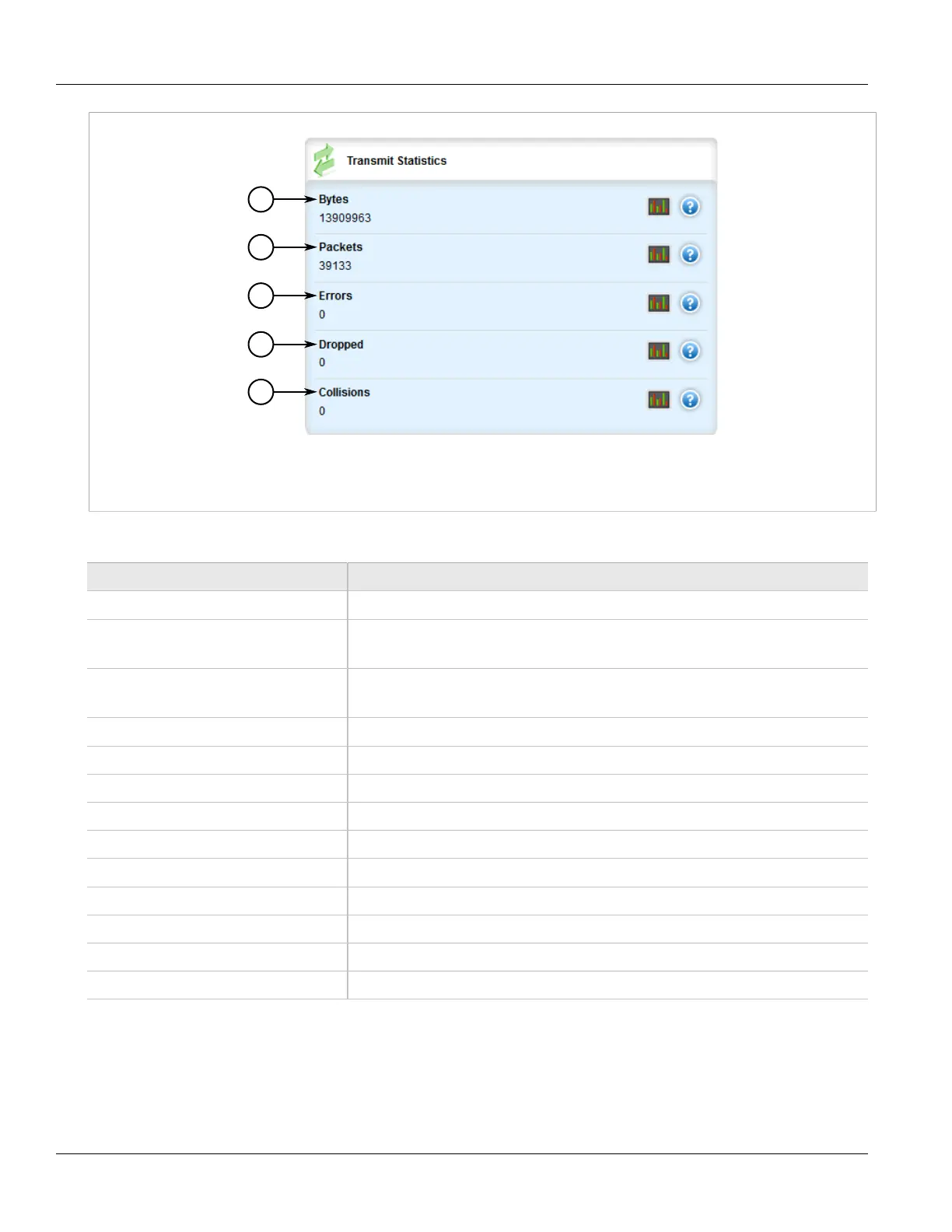

Figure 911: Transmit Statistics Form
1. Bytes 2. Packets 3. Errors 4. Dropped 5. Collisions
These forms display the following information:
Parameter Description
Name The name of the interface.
Admin State Synopsis: up, down, testing, unknown, dormant, notPresent, lowerLayerDown
The port's administrative status.
State Synopsis: up, down, testing, unknown, dormant, notPresent, lowerLayerDown
Shows whether the link is up or down.
Point-to-Point The point-to-point link.
Bytes The number of bytes received.
Packets The number of packets received.
Errors The number of error packets received.
Dropped The number of packets dropped by the receiving device.
Bytes The number of bytes transmitted.
Packets The number of packets transmitted.
Errors The number of error packets transmitted.
Dropped The number of packets dropped by the transmitting device.
Collisions The number of collisions detected on the port.
