Adding a Static Cross-Connect 811

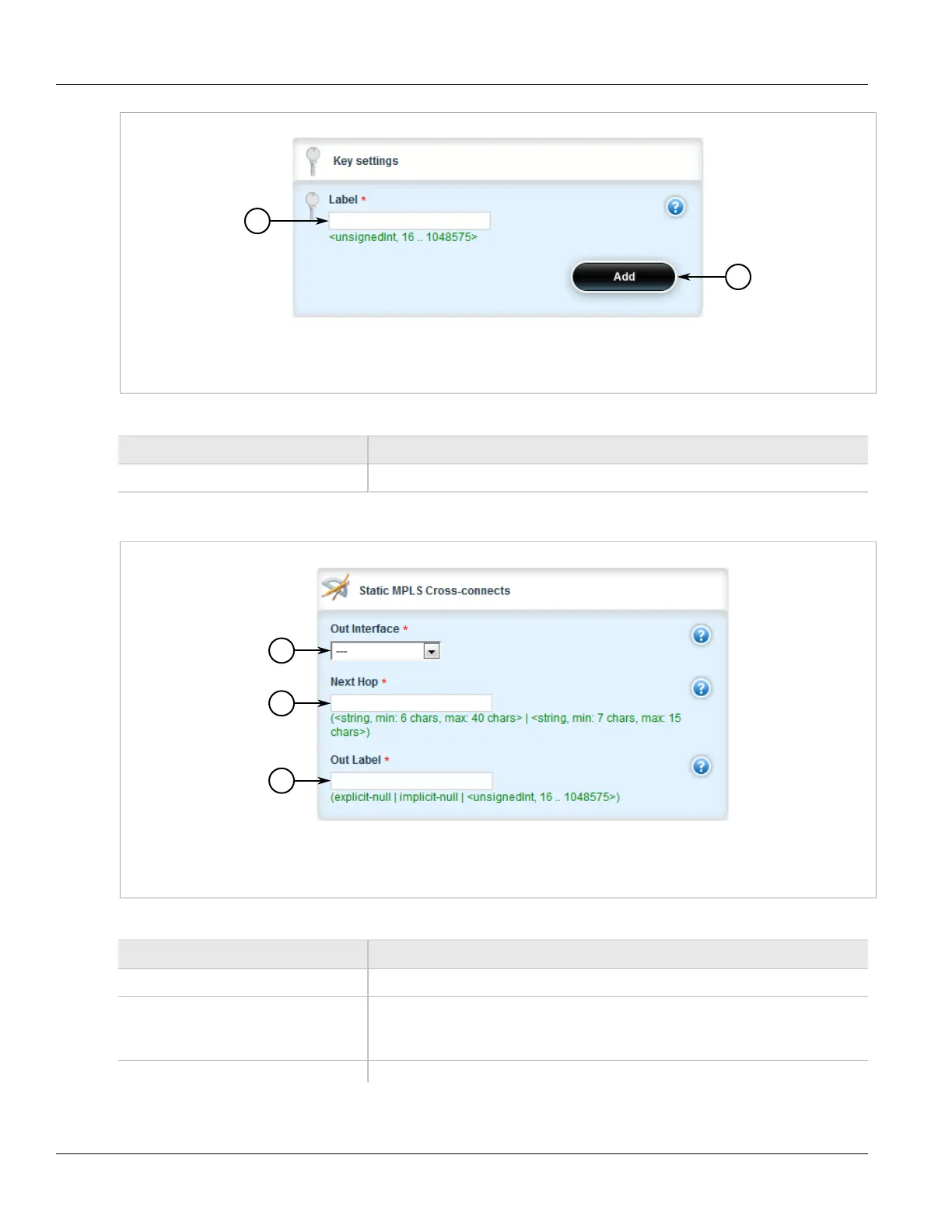

Figure 936: Key Settings Form
1. Label Box 2. Add Button
3. Configure the following parameter(s) as required:
Parameter Description
label The incoming label.
4. Click Add to add the cross-connect label. The Static MPLS Cross-Connects form appears.
Figure 937: Static MPLS Cross-Connects Form
1. Out Interface List 2. Next Hop Box 3. Out Label Box
5. Configure the following parameter(s) as required:
Parameter Description
Out Interface The outgoing interface.
Next Hop Synopsis: The ip-address type represents an IP address and is IP version neutral.
The format of the textual representations implies the IP version.
The destination next-hop router (IPv4 or IPv6 format).
Out Label Synopsis: explicit-null, implicit-null,
