110 Configuring a Routable Ethernet Port

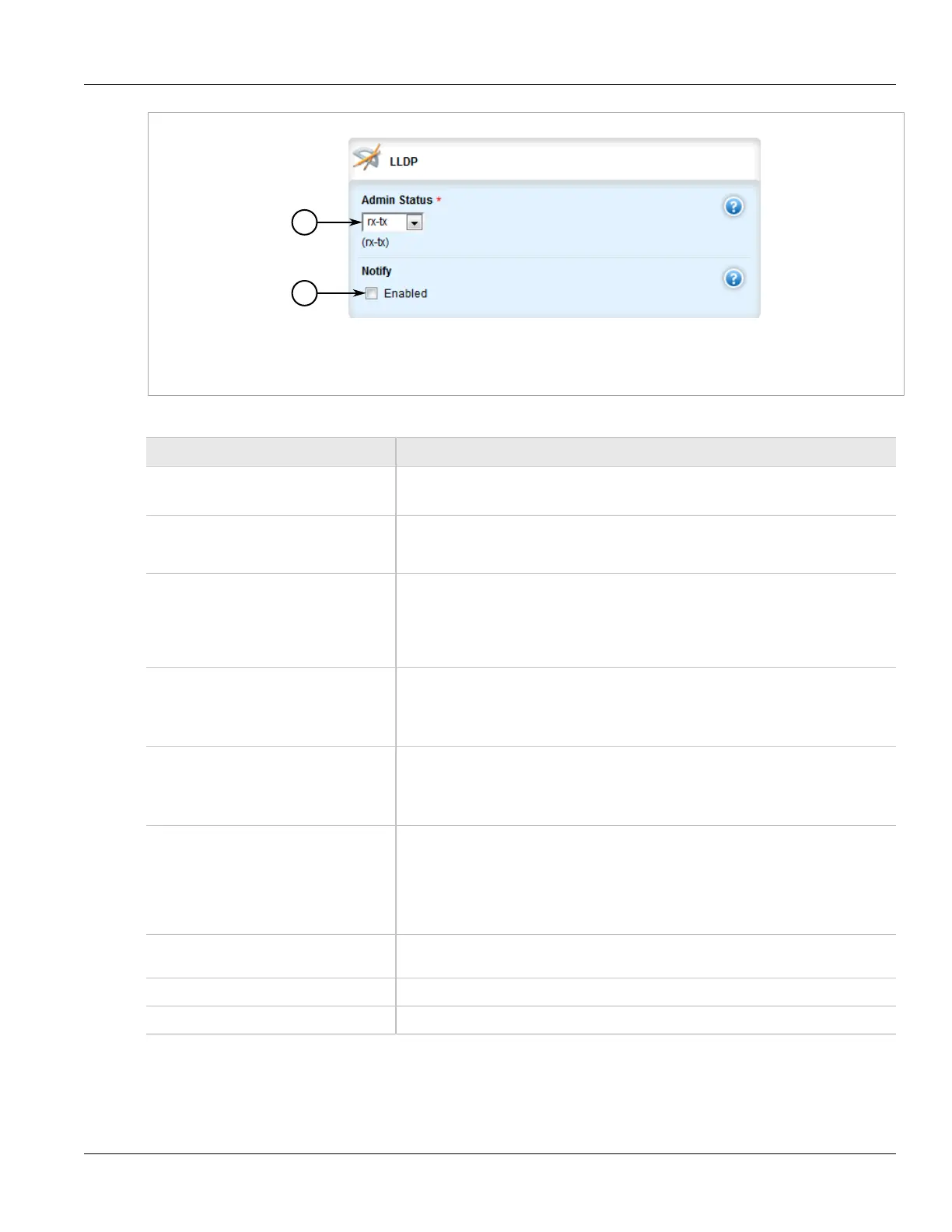

Figure 112: LLDP Form
1. Admin Status List 2. Notify Check Box
3. On the Routable Ethernet Ports form, configure the following parameters as required:
Parameter Description
Enabled Default: true
Enables/Disables the network communications on this port.
AutoN Enables or disables IEEE 802.3 auto-negotiation. Enabling auto-negotiation results in
speed and duplex being negotiated upon link detection; both end devices must be auto-
negotiation compliant for the best possible results.
Speed Synopsis: 10, 100, 1000
Speed (in Megabit-per-second or Gigabit-per-second). If auto-negotiation is enabled,
this is the speed capability advertised by the auto-negotiation process. If auto-
negotiation is disabled, the port is explicitly forced to this speed mode. AUTO means
advertise all supported speed modes.
Duplex Synopsis: half, full
If auto-negotiation is enabled, this is the duplex capability advertised by the auto-
negotiation process. If auto-negotiation is disabled, the port is explicitly forced to this
duplex mode. AUTO means advertise all supported duplex modes.
link-alarms Default: true
Disabling link-alarms will prevent alarms and LinkUp and LinkDown SNMP traps from
being sent for that interface. Link alarms may also be controlled for the whole system
under admin / alarm-cfg.
IP Address Source Synopsis: static, dynamic
Default: static
Determines whether the IP address is static or dynamically assigned via DHCP or
BOOTP. The DYNAMIC option is a common case of a dynamically assigned IP address.
It switches between BOOTP and DHCP until it gets the response from the relevant
server. It must be static for non-management interfaces.
ProxyARP Enables/Disables whether the port will respond to ARP requests for hosts other than
itself.
on-demand This interface is up or down on demand of link fail over.
alias The SNMP alias name of the interface
4. On the LLDP form, configure the following parameters as required:
